Nissan Patrol GR Y61 1998-2010 Workshop Manual

Comprehensive Nissan Patrol GR Y61 service manual covering 1998 through 2010 models. Includes detailed diagrams, procedures, and specifications for all major systems. Part Number: GUY61-ENG-9810

4.7starstarstarstarstar_half(3)
visibility Preview Available
Nissan Nissan Patrol GR Y61 1998-2010 Workshop Manual manual page preview - page 1 of

Sample pages from the Nissan Patrol GR Y61 1998-2010 Workshop Manual manual

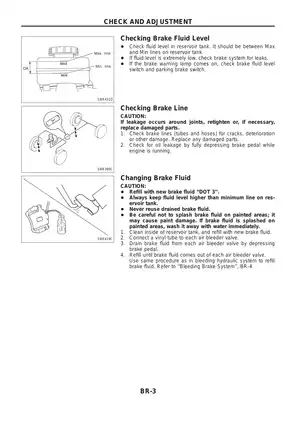

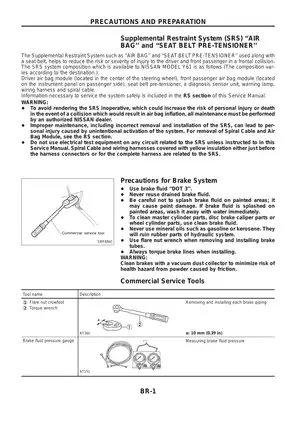

Nissan Nissan Patrol GR Y61 1998-2010 Workshop Manual manual preview page 1 - thumbnail

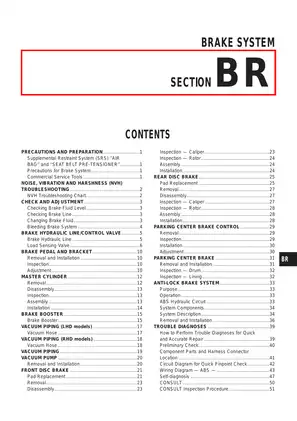

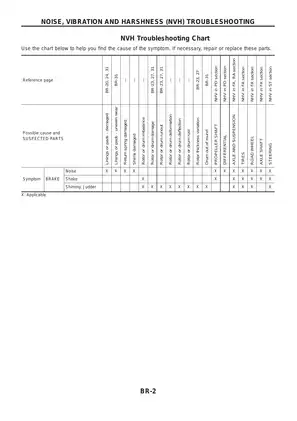

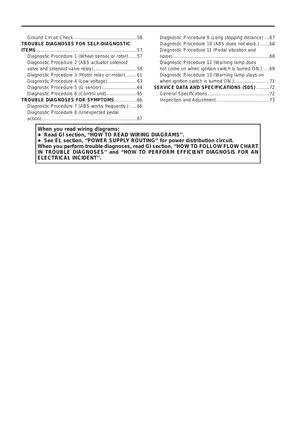

Nissan Nissan Patrol GR Y61 1998-2010 Workshop Manual manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$7.48 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Nissan Models Covered & Key Technical Specifications

Models: Nissan Patrol GR Y61 (GUY61-ENG-9810)
Sub-models / Variants: Wagon, Hardtop, LHD models, RHD models, 4-door rear disc brake
Build Years: 1998–2010
Technical Data:

  • Front brake type: CL36VE disc brake
  • Front brake cylinder bore: 48.1 mm (1.894 in) x 2
  • Front brake pad dimensions: 147 x 56.5 x 12 mm (5.79 x 2.224 x 0.47 in)
  • Front brake rotor outer diameter x thickness: 306 x 32 mm (12.05 x 1.26 in)
  • Rear brake types: LT30 drum brake or CL18VF disc brake
  • Rear brake cylinder bore: 25.4 mm (1.00 in) or 48.1 mm (1.894 in)
  • Rear disc brake pad dimensions: 111 x 41.8 x 10 mm (4.37 x 1.646 x 0.39 in)
  • Rear disc brake rotor outer diameter x thickness: 316 x 18 mm (12.44 x 0.71 in)
  • Brake booster model: 235T
  • Master cylinder bore diameter: 25.4 mm (1.00 in)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
26362 / Kathleen Murphy
File Size:
34.44 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Off-Road-Vehicle
Last updated / verified
Jul 2, 2025

Nissan Manual Features & Content Preview

Inside the Nissan Patrol GR Y61 Workshop Manual

  • This 1998–2010 Nissan Patrol GR Y61 workshop manual provides technical documentation for the Y61 chassis and brake systems, including ABS and parking center brake control variants.
  • Official Nissan publication, reference manual section BR covering braking hydraulics, maintenance, and diagnostics.
  • Contains 37 exploded-view diagrams, 8 wiring schematic pages for ABS systems, and 4 specialized technical specification tables for brake and pedal components.
  • No shipping wait — the PDF is available immediately after purchase.
  • Full-text search finds any part number in seconds.
  • This document is the specific OEM service reference for the 1998–2010 Nissan Patrol GR Y61, essential for verifying hydraulic pressure and brake component clearances.

Component and System Coverage

The 1998–2010 Nissan Patrol GR Y61 workshop manual documents the entire brake system, beginning with safety precautions for SRS air bag and seat belt pre-tensioner systems. Primary sections detail the master cylinder, brake booster, and hydraulic piping configurations for both LHD and RHD models. Maintenance coverage includes fluid replacement protocols, air bleeding sequences, and adjustments for the load sensing valve (LSV), including specific measurement data for different vehicle load states. The text also covers vacuum piping and vacuum pump removal for specific engine models.

Specification and Diagnostic Data

Technical data within the 1998–2010 Nissan Patrol GR Y61 service manual includes detailed torque values for flare nuts and mounting bolts. Rotor thickness variation for the CL36VE front disc is capped at 0.015 mm. Brake pedal free play is specified at 1.0–3.0 mm at the clevis. Diagnostic procedures for the ABS system encompass self-diagnostic result codes, ranging from wheel sensor shorts to actuator relay faults. The publication also provides a comprehensive G sensor calibration guide. An official technical workshop publication covering the 1998–2010 Nissan Patrol GR Y61, documenting brake system, hydraulic, electrical, and ABS diagnostics for the Y61-series build.

Manual FAQ, Purchase & Download Details

Does this manual include service data tables for brake fluid pressure and related technical reference categories? keyboard_arrow_down

Yes, the document includes dedicated sections for service data and specifications. These tables contain information relevant to brake system pressures and component dimensions.

What specific publication reference or chapter section is provided for the anti-lock brake system wiring diagrams? keyboard_arrow_down

Manual includes a dedicated section for the anti-lock brake system that features detailed circuit diagrams and connector location references.

Which model years and submodel configurations are covered by the included technical content? keyboard_arrow_down

Manual covers the Nissan Patrol GR Y61 series produced between 1998 and 2010. It includes documentation for both left-hand drive and right-hand drive models as well as variations involving ABS and differential lock systems. This allows users to reference system-specific information tailored to these model variants.

Can users view parts illustrations and assembly diagrams for the master cylinder or front disc brake components within the document? keyboard_arrow_down

Yes, the manual contains multiple exploded views and assembly diagrams that illustrate the component parts for the brake system, including the master cylinder and disc brake assemblies.

Customer Reviews

Read what our customers say about this Nissan Off-Road-Vehicle manual and share your own experience.
