Honda C92, CS92, CB92, C95, and CA95 1963 Shop Manual (P/N 622301)

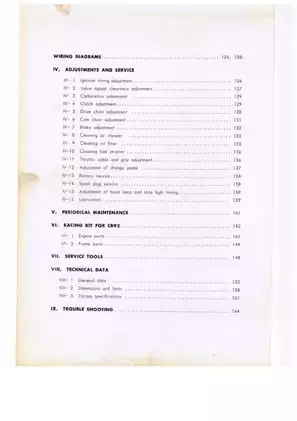

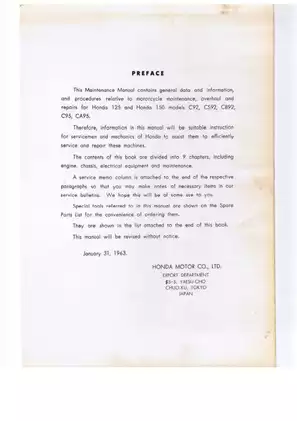

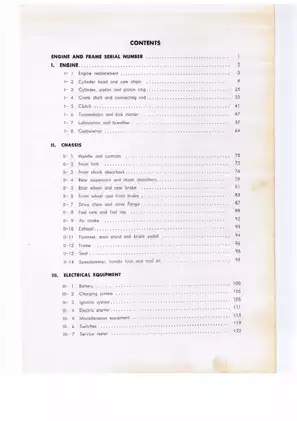

• A 174-page PDF—cover, preface, two-page contents, and 170 numbered factory pages—covering Honda 125 and 150 models C92, CS92, CB92, C95, and CA95. This Honda Motor Co., Ltd. Export Department factory shop manual is dated January 31, 1963.
• Engine chapters document removal and installation, internal dismantling and reassembly, OHC cylinder-head and cam-chain work, piston and crankshaft inspection, clutch service, four-speed transmission and kick-starter repair, carburetor overhaul, and the plunger oil pump with centrifugal oil filter.
• Chassis sections cover controls, front-fork and shock-absorber work, rear suspension, model-specific drum brakes, wheels and drive flange, drive chain, fuel tank and tap, intake and exhaust systems, frame fittings, seat, speedometer, and steering lock.
• Electrical coverage includes the battery, AC charging system, selenium rectifier, ignition and spark advancer, electric starter and overrunning clutch, lights, horn, turn signals, switches, wiring harness, and factory service-tester checks. Separate wiring diagrams are provided for C92/C95 and CB92/CA95 systems.
• Production notes identify rotary- and return-type shifting, standard versus CB92/CA95 crankshaft and camshaft arrangements, early and late breather systems, tachometer-drive changes, brake and drive-damper differences, and serial-numbered design updates.
• Reference chapters add the CB92 racing kit, common and special service tools, periodic maintenance, adjustment procedures, dimensions and service limits, component-specific torque tables, and symptom-based troubleshooting.

Factory Repair Coverage

The engine chapters take the four-stroke, twin-cylinder OHC unit from removal through inspection and reassembly. Coverage includes the cylinder head, valves and rocker gear, camshaft and cam-chain system, cylinders, pistons and rings, crankshaft and connecting rods, wet multiplate clutch, transmission, kick starter, carburetor, lubrication circuit, and breather. Factory adjustment sections address ignition timing, valve tappet clearance, carburetor setting, clutch free play, drive-chain tension, cam-chain adjustment, brakes, throttle controls, shift pedal, lights, and routine filter and strainer cleaning.

Chassis repair extends through the front fork, front and rear shock absorbers, swingarm, wheels, hubs, brakes, drive flange, fuel system, exhaust, frame fittings, and controls. Variant detail helps prevent parts mismatches: the manual distinguishes the C92/CA95 rear-brake arrangement with one anchor pin from the CB92 two-anchor-pin layout and shows different rear-wheel drive dampers for standard and sports configurations.

Production Changes and CB92 Racing Equipment

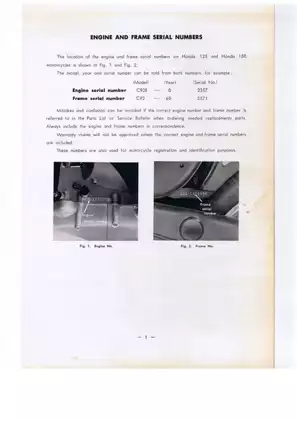

Build identification matters on these early twins. The rotary C92 shift mechanism applies through C92E-12000, while the later return-type mechanism and its related parts are documented separately. Tachometer-drive cylinder-head and camshaft changes begin with CB92E-010511 and CA95E-010139; the racing-kit section lists the additional gearbox and cylinder-head components needed on earlier engines.

The final factory design-change sheets record another major production split. A reinforced crankshaft, larger crankshaft bearings, strengthened crankcase bearing housings, and revised head-cover breather routing begin at C92E-1193875, CS92E-2700001, C95E-2100001, and CB92E-2100001. Additional sheets show the pressed-to-pipe handlebar change with relocated turn signals and a drive-chain-cover access window added for clutch-cable replacement.

The CB92 racing-kit chapter identifies high-compression pistons and thin rings, starter-motor and dynamo delete parts, a higher-efficiency ignition coil, colder-range spark plugs, racing sprocket choices, a racing camshaft, reinforced exhaust valves, carburetor jets for megaphone exhausts, and an early-engine tachometer conversion. Frame equipment includes megaphone diffuser pipes, a racing seat, heavy-duty front and rear shock units, low handlebars, tire and final-drive options, and tachometer hardware.

Drawings, Test Data, and Service Tools

Well over 100 factory figures support the repair text. Representative examples include a clutch sectional view, exploded transmission and shifting assemblies, oil-filter and oil-pump sections, a front-fork exploded view, electric-starter and overrunning-clutch drawings, a headlight beam-pattern chart, tool plates, and the model-group wiring diagrams.

The electrical tester table covers current and continuity checks, resistance and insulation testing, condenser capacity, AC voltage, DC current, engine speed, dynamo output, ignition-coil performance, and timing. Special tools include the C-903 piston-ring compressor, C-904 dynamo-rotor puller, C-910 timing-gear puller, and C-921 crankshaft-bearing puller, plus valve-seat cutters, a valve-guide reamer, and component-holding tools.

Troubleshooting is organized by symptoms such as hard starting, low power, erratic running or misfire, excessive oil consumption or exhaust smoke, rough clutch engagement, and incorrect gear shifting. Several assembly cautions are easy to miss: piston-ring marks and piston arrows must face the specified direction, and the cylinder packing must leave the oil passages open. The manual also identifies the correct drive-chain master-link clip orientation and warns against probing calibrated carburetor passages with metal wire.

Brake, fuel-system, electrical, and spring-loaded suspension work can create fire, shock, or stored-energy hazards. Confirm the model and engine-number build before selecting parts, support the motorcycle securely, and use the specified pullers or compressors where required.
