Honda ATC250R ATV Service Manual, 1981–1984 (P/N 6196103)

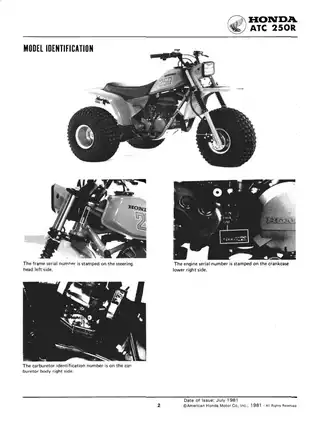

This Official Honda Shop Manual, P/N 6196103, covers 1981–1984 Honda ATC250R three-wheelers through the 1981 base manual, a dedicated 1982 addendum, and a combined 1983–1984 addendum. The cover also carries A27008307DM. The base model-identification page is dated July 1981; the included model-year updates were issued later.

PDF Search, Chapter Bookmarks and Page Breakdown

Search and diagram detail: OCR text search and bookmarks for the service chapters and addenda are available, although recognition errors can affect search results. Small wiring labels require zooming; some lettering in the 1983 diagram remains blurred when enlarged.

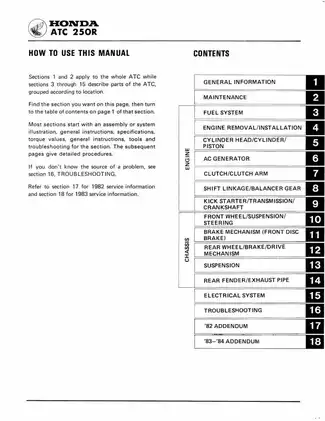

One printable, English-language PDF contains 256 pages in total, including four opening pages covering the cover, safety notice, contents, and model identification. The base service sections occupy 180 pages, followed by the 30-page 1982 addendum and the 42-page 1983–1984 addendum.

Engine Overhaul, Chassis Service and Ignition Diagnosis

The following selected service topics show the repair scope rather than reproduce the full contents list. Other sections cover air-cleaner service and exhaust-system removal and installation.

• Engine repair: Engine removal and installation, cylinder-head and piston service, reed-valve inspection, crankcase separation, and crankshaft inspection.

• Clutch and transmission: Clutch disassembly and wear checks, clutch-arm service, shift-linkage and balancer-gear repair, kickstarter overhaul, and transmission inspection.

• Fuel system: Carburetor removal, disassembly, inspection and reassembly, float-level adjustment, throttle-valve and cable installation, and high-altitude adjustment information.

• Brakes and rear drive: Front disc-brake service, rear drum and hydraulic-disc procedures, parking-brake adjustment, rear-axle work, and driven-sprocket service.

• Suspension and steering: Front-fork seal and fluid service, steering-head bearing work, rear-shock oil bleeding and nitrogen charging, and swingarm bearing replacement.

• Electrical troubleshooting: Ignition and lighting tests, CDI inspection tables, wiring diagrams, cable and harness routing drawings, and symptom-based troubleshooting charts.

This manual suits readers already familiar with standard workshop procedures; internal engine repairs and pressurized shock service also call for the specified tools and equipment.

Model-Year Changes and Addendum Use

The addenda contain changes to the base procedures. Honda directs the technician back to the base manual for service information not included in the updates, so the sections are used together.

1981 chassis and intake: Specifications identify a double-cradle frame, 170 mm telescopic front-fork travel, 110 mm Pro-Link rear travel, a front disc brake, and an internal-expanding-shoe rear brake. The PE23A piston-valve carburetor has a 27 mm venturi; compression ratio is 6.6:1.

1982 rear brake: The rear brake becomes a single hydraulic disc. Its dedicated section covers fluid service and air bleeding, pad and disc inspection, caliper and master-cylinder repair, parking-brake adjustment, and rear-axle removal and installation. Compression ratio changes to 6.7:1.

1983–1984 chassis and intake: The addendum identifies a semi-double-cradle frame, 220 mm front travel, 206 mm Pro-Link rear travel, front and rear single-disc brakes, and a PE30A carburetor with a 30 mm venturi. Compression ratio is 6.7:1 for 1983 and 7.3:1 for 1984, with separate year-specific dimensions where applicable.

Revised engine-installation, fork, steering-stem, rear-shock, swingarm, and drive-chain information accompanies these changes. These distinctions help match the brake and chassis procedures to the correct model year.

Internal Engine Repair and Special Tools

Step-by-step procedures extend through transmission gear and shaft inspection, shift-fork and shift-drum checks, crankshaft runout measurement, and connecting-rod big-end inspection. The kickstarter, transmission, and crankshaft work requires crankcase separation.

Mechanical tool references include crankcase disassembler 07953-9610000, flywheel puller 07733-0010000 / 07933-0010000, gear holder 07924-KA50000, fork seal driver 07947-3290000, and steering race remover 07953-4250002.

Honda flags crankcase mating-surface damage from screwdriver prying and piston-ring damage associated with incorrect assembly orientation or a ring catching in a cylinder port.

Carburetor Service and Altitude Adjustment

The fuel-system sections include float-valve and seat inspection, jet and throttle-valve checks, and reassembly details. Base engine specifications include a 70 x 64.4 mm bore and stroke and a 20:1 gasoline/oil premix.

The later addendum provides high-altitude carburetor adjustment data for operation above 5,000 feet. Honda also cautions that overtightening the carburetor top with a tool can damage the carburetor.

Brake Hydraulics, Forks and Rear Suspension

Brake inspection data distinguish the front and rear hydraulic components, with separate cylinder and piston measurements. Fork procedures cover springs, tubes, sliders, bushings, seals, and fluid service; steering sections address bearing and race replacement.

Rear-shock coverage includes reservoir and hose service, oil bleeding, and nitrogen-only charging requirements. The base section instructs against dismantling the damper unit itself, so its oil-service procedures should not be read as an internal damper overhaul.

When handling these vintage three-wheelers, always verify your lifting points and ensure the chassis is securely supported before inspecting heavier drivetrain components.

Ignition Tests and Workshop Illustrations

Electrical diagnosis covers the CDI unit, ignition-coil primary and secondary circuits, AC-generator lighting and exciter coils, pulse generator, dimmer switch, engine-stop switch, and ignition timing. USA/Canada spark-plug specifications are identified where applicable.

Honda specifies the SANWA electric tester P/N 7308-0020000 or KOWA TH-5H for CDI testing because an unsuitable meter can produce misleading readings. Troubleshooting charts address hard starting, loss of power, poor low- or high-speed performance, and handling problems.

Illustrations include Wiring Diagram 0030Z-961-0000, Cable & Harness Routing, the Kickstarter/Transmission/Crankshaft exploded assembly, Front Wheel/Front Fork/Steering, Brake Mechanism (Front Disc Brake), and revised Wiring Diagram 0030Z-964-0000.

Selected Cylinder, Clutch and Running-Gear Wear Limits

The base inspection procedures specify a cylinder-bore service limit of 70.050 mm and a crankshaft runout service limit of 0.10 mm. Clutch-disc thickness has a 2.45 mm service limit, while the front brake-disc thickness limit is 3.0 mm.

Component-specific torque tables cover the cylinder head, drive/balancer gear, and AC-generator rotor. Transmission oil-capacity data distinguish draining from disassembly, providing a reference for inspection and reassembly work alongside the wear limits.
