1982–1983 Honda CB1000C Custom CB1000 Service & Repair Manual

• Honda CB1000C service coverage in a 302-page PDF, reproducing the September 1982 publication from Honda’s Service Publications Office.
• Engine repair coverage runs from removal and cylinder-head work to piston inspection, camshaft timing, and crankshaft/primary-shaft service.
• Details VB55A carburetor disassembly, fuel-line diaphragm testing, vacuum synchronization, and U.S. idle-drop adjustment.
• Documents clutch and transmission service, dual-range subtransmission repair procedures, and shaft-drive backlash and bearing-preload checks.
• Chassis chapters cover adjustable anti-dive fork overhaul, air-assisted rear shock service, and hydraulic brake rebuilding and bleeding.
• Electrical testing includes charging-system and transistorized-ignition diagnosis, starter troubleshooting, and a full wiring diagram with switch-continuity tables.

Engine Repair and Lubrication

The manual covers the 973 cc air-cooled DOHC inline-four, with four valves per cylinder. It distinguishes work that can be done in the frame from repairs requiring engine removal. Clutch and camshaft service are covered in-frame; cylinder-head removal and cylinder/piston work require the engine out. Exploded assembly views and service-limit tables support the component procedures.

Cylinder-head repair extends to valve-guide replacement and valve-seat inspection and refacing. Lower-end chapters cover crankcase separation, transmission shafts and shift forks, plus main and connecting-rod bearing selection using Plastigauge measurements and color-code tables.

Oil-pressure testing, relief-valve inspection, oil-strainer service, and tandem-pump overhaul are backed by the Engine Lubrication Diagram and the explanation of the oil-cooler circuit.

Carburetor Bank and Fuel Controls

The fuel chapter covers the carburetor bank as an assembly and as individual bodies. Air-cutoff valves and accelerator-pump components receive their own inspection and assembly instructions. Choke linkage, fast-idle setup, pilot-screw limiter caps, and high-altitude adjustment are also addressed.

Dual-Range Gearbox and Final Drive

The five-speed gearbox and its high/low subtransmission receive separate service chapters. Dual Range Subtransmission diagrams explain power flow and the separate gear-oil pump. Repair coverage includes reduction gears, the spring-loaded damper, and retainer seals. Factory service notes also specify assembly replacement when subtransmission bearings or drive/driven gears need replacement.

The final-drive chapter separates pinion-gear preload from complete gear-assembly preload and covers oil-seal replacement. Its assembly cautions address the risk of folding or damaging the case oil-seal lip when fitting the ring gear.

Suspension, Brakes, and Electrical Diagnosis

Separate left- and right-fork assembly information covers seals, bushings, and anti-dive-case internals. The Anti-Dive Front Suspension views explain the brake-actuated control piston and oil-control orifice. Rear chassis work includes shock-seal replacement, swingarm pivot bearings, and universal-joint and driveshaft removal. Steering-head bearing replacement and adjustment are covered as well.

Brake repair includes master-cylinder and caliper disassembly, bore and piston inspection, and reassembly. Electrical procedures isolate faults in the alternator stator and rotor, regulator/rectifier, pulse generators, and spark units. Brake/taillight sensor testing is included. Symptom-based charts such as Engine Does Not Start or Is Hard to Start connect fuel, spark, and compression checks to likely causes.

Specification Highlights and Service Tools

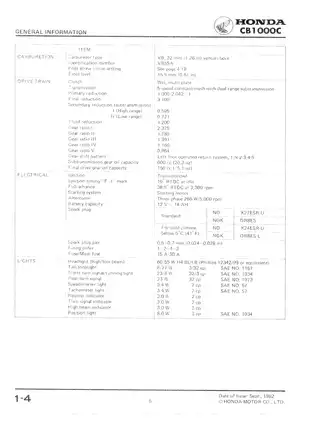

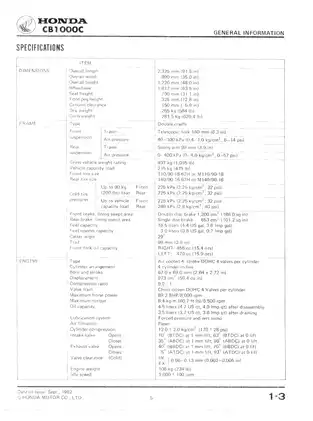

Factory tables provide component-specific torque values, fluid specifications and capacities, compression and oil-pressure test data, wear limits, and electrical test values. A Valve Shim Selection Chart supports clearance adjustment. Tool references identify the valve depressor/lifter holder 07964-4220002 and final-drive preload inspection tool 07924-3710000.

Honda’s valve-adjustment cautions explain how using the depressor as a pry bar can damage both the lifter and camshaft.

Always review the factory torque specifications and safety warnings for engine support, pressurized suspension, and hydraulic brakes before initiating any major teardown.
