Honda SLR 650 Vigor Shop Manual, 1997–2001

270 Pages • ZIP Download: 1 Printable PDF • 13.26 MB

4.5starstarstarstarstar_half(4)
$17.76 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Model: SLR 650 Vigor

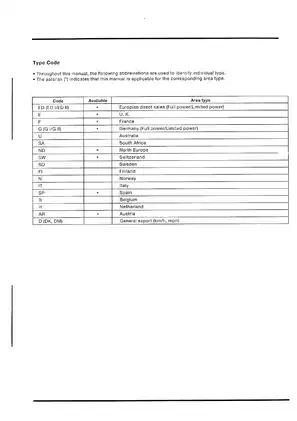

Sub-models / Variants: European direct sales (ED I/ED II, full power/limited power), U.K. (E), France (F), Germany (G I/G II, full power/limited power), North Europe (ND), Switzerland (SW), Spain (SP), Austria (AR)

Model Years: 1997–2001 (1997, 1998, 1999, 2000, 2001)


  • Engine: Single cylinder, 644 cc, OHC 4-valve

  • Compression ratio: 8.3:1

  • Transmission: 5-speed, constant mesh, chain drive

  • Cooling: Air cooled

  • Fuel system: Carburetor (VE type)

  • Lubrication: Forced pressure and dry sump

Honda Manual Features & Selected Content Preview

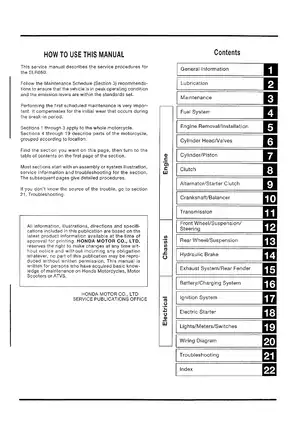

Honda Motor Co., Ltd.’s SLR650 Shop Manual covers the SLR 650 Vigor and the market types listed above. Issued through Honda’s Service Publications Office, it carries rear-cover print code 67MAKE1MH.

PDF Search, Bookmarks and Wiring Detail

Navigation and schematic labels: PDF text search is not available. Eight bookmarks labeled with source filenames provide access to file sections rather than individual chapters. Small wiring labels require zooming; the complete schematic is on PDF p. 270, while an earlier reproduction is cropped.

The ZIP download contains one printable English PDF with 270 pages, including the front and rear covers, 12 memo pages and three blank pages.


Engine Overhaul, Chassis Service and Electrical Fault Tracing

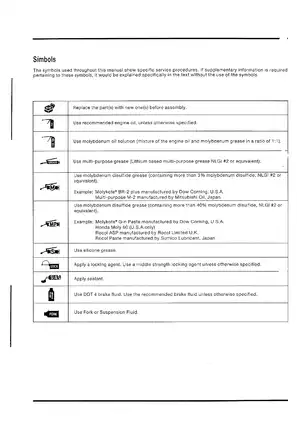

These selected workshop topics show the repair coverage; additional sections address exhaust-system removal and instrument servicing.

  • Engine repair: Engine removal and installation, cylinder-head and valve work, cylinder/piston inspection, crankcase separation, and crankshaft/balancer service.

  • Lubrication: Oil and filter replacement, strainer cleaning, trochoid oil-pump disassembly, rotor inspection, check-valve service, and oil-pipe installation.

  • Fuel system: Carburetor removal, disassembly and assembly, float-level inspection, pilot-screw idle-drop adjustment, and market-specific secondary air supply checks.

  • Clutch and transmission: Wet multi-plate clutch inspection, primary-drive and starter-clutch service, transmission disassembly, and gear, shaft and shift-fork inspection.

  • Suspension and steering: Fork disassembly and seal replacement, wheel-bearing replacement, steering-stem bearing service, and swingarm and shock-linkage work.

  • Hydraulic brakes: Fluid replacement and air bleeding, pad and disc inspection, and front and rear master-cylinder and caliper rebuilding.

  • Electrical diagnosis: Charging-system tests, ignition peak-voltage measurements, starter-motor service, starter-relay checks, switch-continuity tables, and wiring diagrams.

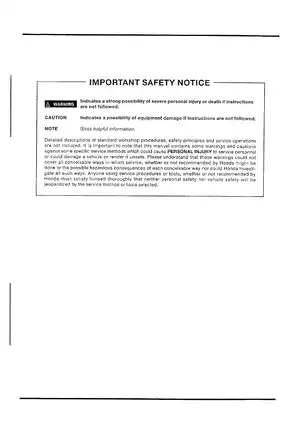

Honda wrote this manual for readers with basic maintenance knowledge of its motorcycles, scooters or ATVs; standard workshop procedures are assumed rather than taught.

Engine Access, Internal Inspection and Special Tools

Step-by-step instructions extend to valve-guide replacement, valve-seat inspection and refacing, camshaft and rocker-arm inspection, and decompressor checks. Cylinder and piston coverage includes ring inspection, rebore criteria and oversize-piston information.

Access requirements: Crankshaft/balancer and transmission work requires engine removal and crankcase separation. The cylinder head, valves, cylinder/piston, clutch and alternator/starter clutch can be serviced with the engine in the frame.

Factory tool references include clutch center holder 07724-0050002, flywheel puller 07733-0020001, and crankshaft assembly tool 07931-KF00000. Component-specific torque tables, bearing-replacement instructions, clearances and wear limits accompany the repair sections.

Oil-pump assembly: The manual distinguishes the different-thickness A and B rotor sets and warns against interchanging them. Its maintenance section also explains how the decompressor affects right-hand exhaust-valve clearance measurement.

Carburetor Versions and Scheduled Maintenance

Carburetor identification is market specific: VEEAA for ED/F/ND/SP, VEEAB for G, VEEAD for SW, VEEAE for E, and VEEAF for AR. Pilot-screw settings are assigned to the relevant types.

Secondary air supply inspection covers G, SW and AR versions, including vacuum testing of the air injection control valve. The Crankcase Emission Control System illustration shows the breather arrangement.

The maintenance schedule identifies initial and recurring service requirements, including engine-oil changes and drive-chain inspection and lubrication. The lubrication section distinguishes oil quantities after draining, filter replacement and disassembly.

The carburetor instructions warn that forcing the pilot screw against its seat damages the seat.

Fork, Linkage and Brake Repair

Fork documentation includes bushing inspection, oil-seal orientation and fluid-level measurement, with fork seal driver 07947-KA50100 identified. It cautions against damage to the fork-tube sliding surface.

Rear-suspension procedures detail needle-bearing replacement in the shock link and shock arm, plus swingarm pivot-bearing service. The nitrogen-charged rear shock damper is not to be disassembled; shock removal, inspection, installation and disposal are covered.

Brake chapters provide piston and cylinder inspection limits and seal, cup and boot assembly details. Working on motorcycle internals carries inherent risks, so verify your mechanical competence or involve a certified technician before tackling major teardowns.

System Diagrams and Diagnostic Charts

Section-opening assembly views, service-limit tables and Cable & Harness Routing support component identification and fault tracing. Separate Battery/Charging System, Ignition System and Electric Starter system diagrams supplement the Section 20 Wiring Diagram.

Charging-system charts distinguish battery, regulator/rectifier, alternator and wiring faults. Ignition testing compares measurements at the ignition control module and pulse-generator connectors to separate component faults from harness problems.

The ignition section specifies peak-voltage adaptor 07HGJ-0020100, or an Imrie diagnostic tester, and includes throttle-sensor checks. Ignition timing is inspected rather than adjusted.

Section 21 adds fault trees for hard starting or no start, lack of power, poor low- and high-speed performance, and poor handling.

Selected Valve, Compression and Fork Specifications

Cold intake and exhaust valve clearance is specified at 0.10 mm (0.004 in). Cylinder-compression test data give 637 kPa (6.5 kgf/cm², 92 psi) at 600 rpm, with the engine warm and throttle fully open.

Fork service data specify 583 cm³ (19.7 US oz) per leg and a 120 mm (4.7 in) oil level measured from the tube top with the fork fully compressed and spring removed.
