2008 Yamaha FJR13AX(C) / FJR13AEX(C) Service Manual

Service manual for 2008 Yamaha FJR13AX(C) and FJR13AEX(C) models. Comprehensive guide covering all maintenance, troubleshooting, and repair procedures. PN LIT-11616-21-63.

4.5starstarstarstarstar_half(4)
visibility Preview Available
Yamaha 2008 Yamaha FJR13AX(C) / FJR13AEX(C) Service Manual manual page preview - page 1 of

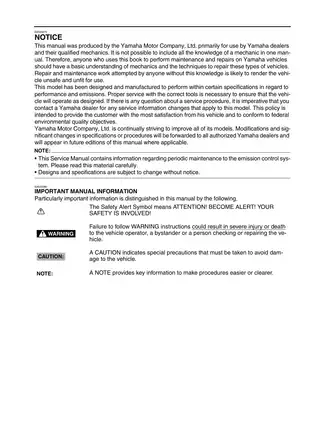

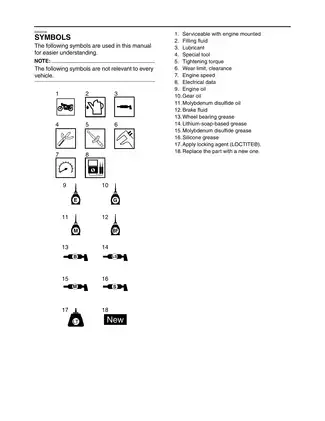

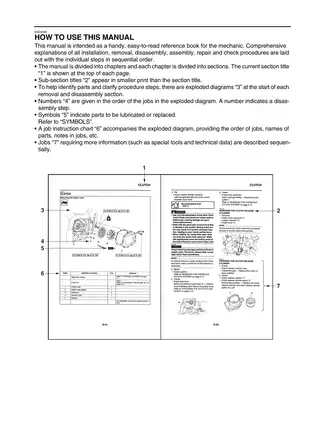

Sample pages from the 2008 Yamaha FJR13AX(C) / FJR13AEX(C) Service Manual manual

Yamaha 2008 Yamaha FJR13AX(C) / FJR13AEX(C) Service Manual manual preview page 1 - thumbnail
info_outline Click thumbnails to preview different pages
$18.27 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Yamaha Models Covered & Key Technical Specifications

Models: Yamaha FJR13AX(C), Yamaha FJR13AEX(C)
Sub-models / Variants: FJR13A (Standard), FJR13AE (Electronic/YCC-S shift)
Trade Names: FJR, FJR1300
Build Years: 2008
Serial Numbers: 3P6G, 3P6H, 2D2G, 2D2H
Technical Data:

  • Engine displacement: 1298.0 cm³
  • Engine type: Liquid cooled 4-stroke, DOHC, forward-inclined parallel 4-cylinder
  • Transmission type: Constant mesh 5-speed
  • Fuel tank capacity: 25.0 L
  • Front brake disc diameter: 320.0 mm
  • Rear brake disc diameter: 282.0 mm
  • Fuel pressure: 324.0 kPa
  • Drive system: Shaft drive
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
26513 / Sarah Collins
File Size:
22.28 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Bike
Last updated / verified
Apr 24, 2025

Yamaha Manual Features & Content Preview

2008 Yamaha FJR13AX(C) and FJR13AEX(C) Service Manual

  • Covers 2008 Yamaha FJR1300 models with standard shifting (FJR13A) and Yamaha Chip Controlled-Shift system (FJR13AE)
  • Official Yamaha publication P/N LIT-11616-21-63, first edition November 2007
  • Contains 9 comprehensive chapters covering engine, chassis, cooling, fuel, and electrical systems
  • Includes detailed tightening torque specifications for all major fasteners
  • Features exploded-view diagrams for assembly and disassembly identification
  • Full-text search finds any part number in seconds
  • Accessible from your device as soon as the order is placed
  • This 2008 first edition is the primary factory reference for the FJR13AX and FJR13AE series build

Manual Content Breakdown

The 2008 Yamaha FJR1300 service manual provides technical procedures and specifications for maintenance and repair. Coverage begins with General Information, including identification markings and feature summaries for the Fuel Injection (FI) system, Unified Brake System, and ABS functionality. Subsequent sections detail Periodic Checks and Adjustments for mechanical and electrical components. The document continues with chapters dedicated to Chassis, Engine, Cooling System, Fuel System, Electrical System, and Troubleshooting. The structure organizes maintenance by system, incorporating specialized cable routing charts for both FJR13A and FJR13AE variants.

Technical Data Preview

This manual documents performance benchmarks and tolerances. The engine displacement is verified at 1298.0 cm³ across all 2008 variants. Standard engine oil capacity is specified at 4.90 liters, while the fuel tank capacity is documented at 25.0 liters. Tightening torques are extensive, ranging from M4 screws to M22 axle nuts, provided in Nm, m-kg, and ft-lb. Spark plug gap is specified at 0.7–0.8 mm in the engine technical data. Final gear oil quantity is 0.20 liters. Reference values for the fuel pump output pressure are listed at 324.0 kPa. Note: This page is a contents overview for the manual. It does not provide repair or diagnostic instructions.

An official 2008 Yamaha OEM service manual covering the FJR13AX(C) and FJR13AEX(C) motorcycles, documenting complete engine, chassis, cooling, and electrical specifications for these specific 1298cc touring models.

Manual FAQ, Purchase & Download Details

Which specific document identity and edition details are printed on this 2008 service manual? keyboard_arrow_down

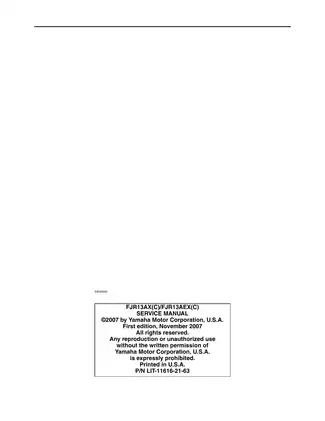

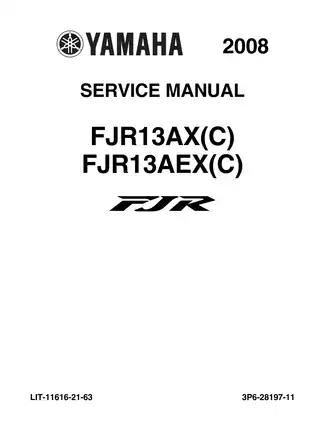

Publication is the first edition released in November 2007 for the specified 2008 models. It is identified by the publication number LIT-11616-21-63 and document code 3P6-28197-11.

Are wiring diagrams and connector references included in the electrical system chapter? keyboard_arrow_down

Manual includes information regarding the electrical system, which covers components like the ECU, sensors, and ignition coils.

Is there content available concerning specification tables or technical reference data for the fuel and engine systems? keyboard_arrow_down

Manual contains dedicated chapters that list various technical data categories for the bike. These sections provide references for fuel tank capacity, disc diameters, and other specifications. Users can consult the table of contents to locate these technical reference tables within the document.
