Suzuki GSF650 / GSF650S / GSX650F 2007–2009 Service Manual

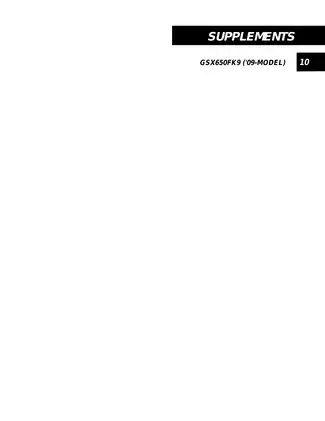

This Suzuki service manual covers the 2007–2009 GSF650/S and GSX650F family, including the market-specific U/SU variants. The integrated GSX650FK9 supplement updates specifications and states that K8 service data still applies.

PDF Navigation and Page Details

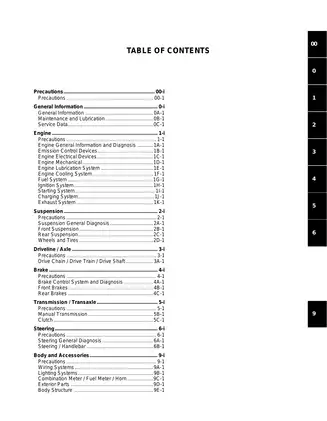

Text search and diagram viewing: Searchable text and embedded bookmarks support navigation through the service chapters and K9 supplement. Small wire codes and connector numbers in dense diagrams require zooming; rotating the page helps when viewing the full wiring layouts.

One printable English-language PDF contains 620 pages total, including six preliminary pages, three of them blank, and the two-page GSX650FK9 specification supplement.

FI Diagnosis, Engine Overhaul and Chassis Service

The selected topics below show the main workshop coverage. Lighting-system tests and GSX650F cowling removal are further examples of the manual’s contents.

• Engine repair: Step-by-step engine removal, top- and bottom-end disassembly, shim-type valve adjustment, and crankshaft bearing inspection and selection.

• FI diagnosis: DTC troubleshooting charts, SDS fault records, injector and fuel-pump checks, and IAP, TP, ECT and IAT sensor tests.

• Intake and emissions: Throttle valve synchronization, ISC valve preset and opening initialization, STVA testing, PAIR service, and E-33 EVAP procedures.

• Cooling and lubrication: Cooling-circuit pressure testing, thermostat inspection, water-pump disassembly and assembly, oil-pressure diagnosis, and oil-pump service.

• Transmission and clutch: Gearset disassembly, shift-fork inspection, clutch-plate measurements, hydraulic master and release-cylinder repair, and clutch-circuit bleeding.

• Brakes and chassis: Brake bleeding and caliper overhaul, front-fork rebuilding, swingarm and linkage bearing service, wheel-bearing replacement, and steering-stem bearing work.

• Electrical troubleshooting: Market-specific wiring diagrams, ECM connector assignments, starting and charging tests, and combination-meter and fuel-gauge diagnosis.

Written for mechanics who already have motorcycle service knowledge, the manual assumes suitable measuring equipment and the special tools specified for the work.

Internal Engine and Drivetrain Work

Engine coverage extends to cylinder-head and valve-seat repair, piston and cylinder inspection, crankcase separation, and crankshaft journal and thrust-bearing selection. The Camshaft and Sprocket Assembly Diagram accompanies valve-timing work, with multi-stage cylinder-head bolt tightening specifications.

Transmission access: Internal transmission removal requires engine removal and crankcase separation. Gearshaft assembly drawings and inspection limits support assessment of shifting faults; clutch specifications distinguish plate wear, distortion and spring deterioration.

Fuel Injection and Electrical Fault Tracing

DTC charts connect fault indications with circuit checks, sensor readings and ECM terminal assignments. This lets a mechanic compare harness condition with component test results when tracing an FI fault.

SDS diagnosis: The Suzuki Diagnosis System sections explain stored operating conditions, comparisons with normal-operation samples, and malfunction-history clearing. The manual identifies the SDS set, mode-select switch and electrical test equipment used in these procedures.

Throttle valve synchronization covers both SDS and mode-select-switch methods. ISC preset and opening initialization are documented, while the STVA and combined IAP/TP/IAT sensor are supplied with the throttle body as an assembly, with explicit restrictions on disassembly.

Wiring coverage: Full vehicle wiring diagrams are provided for GSF650 E-28 and GSX650F E-03/E-24/E-28/E-33. The FI System Wiring Diagram and ECM connector table provide additional system circuitry and pin assignments.

Disconnecting a battery terminal while the engine runs can damage the ECM. Forcing test probes into connector terminals can deform the contacts; the electrical precautions explain the appropriate probing approach.

Cooling, Emissions and Chassis Details

The Water Hose Routing Diagram and Throttle Cable Routing Diagram show placement during reassembly. The PAIR System Hose Routing Diagram supports emission-system service; EVAP canister and purge-valve procedures apply specifically to E-33.

The Periodic Maintenance Schedule Chart organizes routine service. Rear-shock coverage includes removal, inspection, spring-preload adjustment and damping adjustment; Suzuki identifies the shock absorber as non-serviceable internally.

Safety reminder: Securely support the motorcycle for chassis work and follow each test’s electrical precautions, including whether battery power is required.

A Preview of Valve, Chain and Electrical Specifications

Cold valve-clearance specifications are 0.10–0.20 mm for intake and 0.20–0.30 mm for exhaust, checked at compression TDC with the cams in the illustrated checking positions. Drive-chain inspection uses a 323.8 mm (12.75 in) service limit over 20 pitches.

Cooling data lists a 3.0 L coolant capacity. CKP sensor inspection specifies approximately 90–150 Ω between the Bl/Y and Green leads, alongside a separate insulation-to-ground check.
