2000–2001 Honda CBR929RR Fireblade Factory Service Manual (P/N 61MCJ01)

488 Pages • Printable PDF • 53.99 MB • Download

5.0starstarstarstarstar(1)
$18.97 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Model: CBR929RR Fireblade

Model Years: 2000–2001


  • Engine type: Four cylinder, inline 30° inclined from vertical, DOHC

  • Displacement: 929 cm³ (56.7 cu-in)

  • Compression ratio: 11.3:1

  • Fuel system: PGM-FI (Programmed Fuel Injection)

  • Transmission: 6-speed, constant mesh

  • Firing order: 1-2-4-3

  • Bore and stroke: 74.0 x 54.0 mm

  • Drive system: Chain drive

Honda Manual Features & Selected Content Preview

This Honda factory service manual covers the 2000–2001 CBR929RR Fireblade, with repair and diagnostic information for its PGM-FI inline-four powertrain and diamond-type chassis.

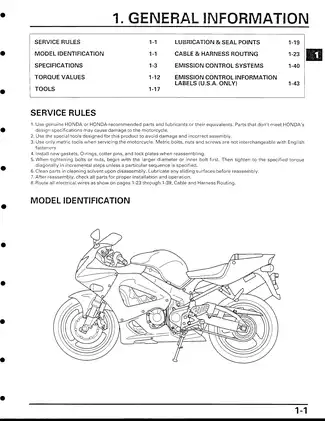

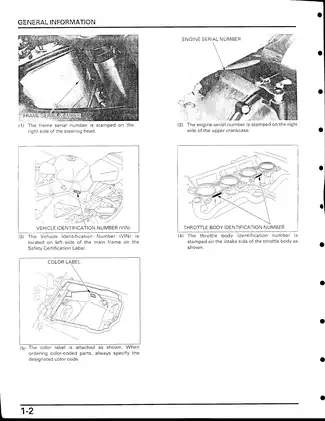

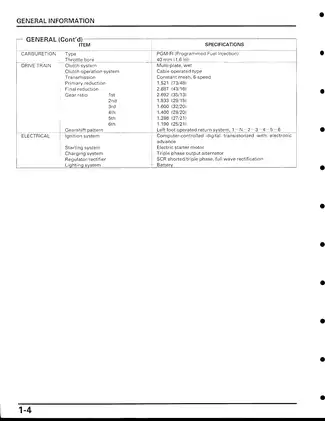

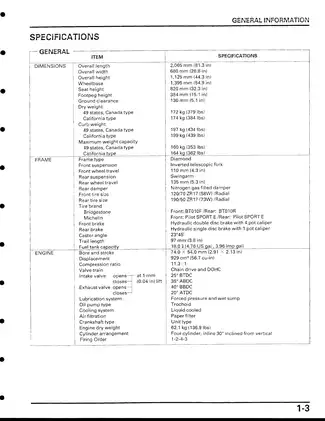

  • Engine repair: Engine removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, camshaft inspection, and valve-timing procedures.

  • Clutch and transmission: Clutch disassembly, gearshift-linkage service, crankcase separation, crankshaft bearing selection, and transmission gear, shaft, and bushing inspection.

  • Fuel and emissions: PGM-FI self-diagnosis, fuel-pressure testing, injector checks, starter-valve synchronization, PAIR inspection, and California-specific EVAP and oxygen-sensor procedures.

  • Intake and exhaust control: H-VIX operating checks, EGCV service, variable air intake valve disassembly, servo-motor testing, and control-cable adjustment.

  • Cooling and lubrication: Cooling-system pressure tests, thermostat inspection, water-pump replacement, oil-pressure testing, oil-pump inspection, and oil-cooler service.

  • Chassis and brakes: Inverted-fork service, wheel-bearing replacement, steering-head bearing adjustment, suspension-linkage inspection, master-cylinder and caliper service, and hydraulic brake bleeding.

  • Electrical diagnosis: ECM connector layouts, charging and ignition tests, starter-motor overhaul, switch checks, and troubleshooting charts for starting and running faults.

This manual is suited to experienced mechanics who can use precision measuring equipment and the specified service tools; internal engine work and electrical diagnosis assume workshop knowledge.

Engine, Clutch, and Transmission Work

Camshaft, clutch, shift-drum, and shift-fork service can be performed with the engine installed. Cylinder-head, piston/cylinder, crankshaft, and transmission work require engine removal; crankshaft and transmission service also require crankcase separation.

The crankshaft section combines color-coded main-journal bearing selection tables with Plastigauge verification. Incorrectly positioned bearing inserts can block oil passages, causing inadequate lubrication and eventual engine seizure.

Component-specific torque tables distinguish cylinder-head fastener sizes and required thread treatments. Exploded assembly views show component relationships during disassembly and reassembly.

PGM-FI, H-VIX, and Emissions Diagnosis

PGM-FI troubleshooting connects MIL blink codes with sensor, injector, wiring, and ECM checks. Numbered test-harness terminal views and wire-color references help distinguish circuit faults from failed components before replacement parts are selected.

H-VIX control: The variable air intake valve and EGCV share an ECM-controlled servo motor. Separate diagnostic charts address MIL codes 34 and 35, covering servo potentiometer voltage and motor operation alongside the documented cable-adjustment procedures.

Regional fuel systems: The manual distinguishes 49-state/Canada throttle bodies identified as GQ60C from California units identified as GQ60B. California coverage adds EVAP purge-control valve and oxygen-sensor procedures; secondary air supply inspection covers the PAIR components.

Cooling and Chassis Service

Cooling-system coverage includes radiator-cap testing, leak checks, thermostat inspection, and coolant replacement. For a leaking water-pump mechanical seal, the specified repair is replacement of the pump as an assembly. Lubrication procedures cover the oil strainer, pressure-relief valve, pump, and cooler.

Front suspension work includes fork-seal and bushing inspection. Rear suspension sections cover linkage and swingarm pivot bearings, while shock-absorber service includes inspection, mounting-bearing replacement, and replacement of a damaged shock as an assembly.

Hydraulic brake chapters distinguish front and rear master cylinders and calipers, with bleeding procedures and wear-limit tables. Observe the manual’s safety precautions for supporting the motorcycle and servicing the brake system.

Electrical Tests and Diagram Coverage

Electrical sections cover alternator charging-coil and regulator/rectifier checks, direct-ignition coil and ignition pulse generator testing, starter-relay diagnosis, and instrument and switch inspection. Peak-voltage testing specifies adaptor 07HGJ-0020100 with a suitable digital multimeter.

Reference illustrations include Cable & Harness Routing, the California Vacuum Hose Routing Diagram, California and non-California PGM-FI System Diagrams, the Test Harness Terminal Layout, and exploded brake assemblies.

Diagram coverage: The separate overall Wiring Diagram chapter and several chapter-opening system overview plates referenced in the manual are absent from this PDF.

A Preview of Bearing, Fuel, and Cooling Data

These examples represent a small selection of the workshop specifications included in the manual.

For crankshaft inspection, standard main-journal oil clearance is 0.017–0.035 mm at journals No. 1 and No. 5. Fuel-system specifications list fuel pressure at idle as 343 kPa.

Cooling capacity is specified separately: 3.2 liters for the radiator and engine, plus 0.4 liter for the reserve tank.

Text Search, Bookmarks, and Page Count

Search, navigation, and diagram detail: OCR text search is available, with recognition errors in some labels. Page-level bookmarks work; chapter bookmarks have missing or incorrect destinations. Small connector pin numbers need magnification and remain faint in places.

One printable English-language PDF contains 488 pages total, including two blank pages already included in that count.
