Canon imageRUNNER 5570/6570 Copier Service Manual 2005 (P/N DU7-1143-000)
932 Pages • 1 Printable PDF (English) • Download
Canon Models Covered & Key Technical Specifications
Models: imageRUNNER 5570, imageRUNNER 6570
Sub-models / Variants: 100V model, 120V model, 230V model; iR5570N (printing-speed table)
Model Year: 2005
-
Engine/Print Resolution: 1200 dpi (equivalent) x 600 dpi copying; 2400 dpi (equivalent) x 600 dpi printing
-
Memory Capacity: 512 MB
-
Hard Disk Drive: 20 GB
-
Warm-Up Time: 30 seconds or less
-
First Copy Time: 3.3 seconds
-
Supported Media: Plain paper, recycled paper, colored paper, heavy paper (91-200 g/m2), bond paper, transparency, postcard, label sheet, index sheet, tracing paper
-
Paper Capacity: 600 sheets per cassette and 1700 sheets per paper deck with 64 g/m2 paper; 550 sheets per cassette and 1500 sheets per paper deck with 80 g/m2 paper; 50 sheets in the manual feeder with 64 or 80 g/m2 paper
-
Power Requirements: 100V / 120V / 230V; max 1500W consumption for the 100V model

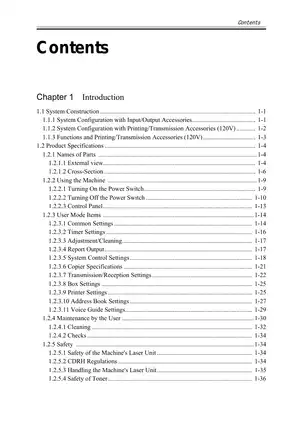

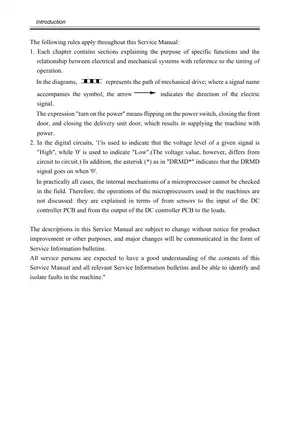

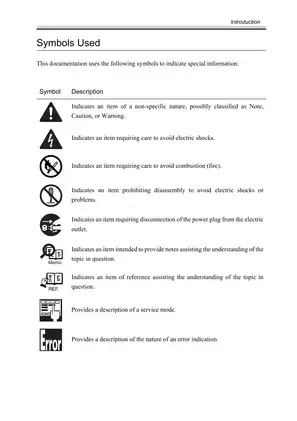

Canon Manual Features & Selected Content Preview
Canon service manual for the imageRUNNER 5570 and 6570, P/N DU7-1143-000, Rev. 0, issued January 2005. It covers technical theory, installation, maintenance, troubleshooting, and repair of the base machine across regional configurations.
PDF Search, Bookmarks, and Circuit Detail
Text access and diagram detail: The manual’s body text is searchable, and embedded bookmarks provide chapter and subsection navigation. Some circuit-diagram identifiers are not searchable as complete terms. Small connector, pin, and wire-code labels require zooming.
Supplied as one printable English-language, 932-page PDF, including the original front and back covers and the 27-page appendix containing timing and circuit diagrams.
Copier Systems, Repair, and Fault Diagnosis
The following selected coverage highlights outline the main service areas. Other topics include MEAP platform construction and control-panel LCD contrast adjustment.
-
Controller and scanner repair: Step-by-step removal and replacement procedures for controller components, the CCD unit, scanner drive, and laser scanner, with related adjustments.
-
Image formation: Potential control, charging, developing, toner supply, transfer, and separation, plus drum, cleaner, charging-wire, and developing-assembly service.
-
Paper handling and fixing: Deck, cassette, manual-feed, registration, duplex, and delivery mechanisms; roller and drive-component replacement; IH fixing-unit service.
-
Diagnosis and service modes: Error, jam, and alarm codes; faulty-image checks; electrical component maps; status displays, I/O checks, adjustments, and test functions.
-
Installation and software: Base-machine setup, network checks, selected accessory installation, HDD formatting, firmware downloads, and SRAM/MEAP backup and recovery.
-
Diagrams and maintenance: Wiring and circuit diagrams, image-data flow, roller and sensor layouts, timing charts, replacement-part tables, and scheduled servicing guidance.
Canon issued this manual for qualified service personnel; it assumes familiarity with copier electrical safety, laser precautions, high-voltage image formation, and service-mode work.
Regional Configurations and Accessory Limits
Dedicated printing/transmission option maps identify the Multi PDL Printer Kit-G1, Super G3 Fax Board-R1, Universal Send Kit-D1, and iR Security Kit-A2, together with supporting boards and licenses. System construction drawings show DADF-M1, Finisher-T1, Saddle Finisher-T2, Shift Tray-D1, Puncher Unit-L1/M1/N1/P1, Copy Tray-L1, and Paper Deck-V1.
The iR5570N reference concerns printing-speed data. The main service publication is identified on its cover for the imageRUNNER 5570/6570.
This is a base-machine service manual. It includes option mapping, host-interface information, accessory-related service modes, and finisher/ADF jam codes. Full peripheral teardown coverage should not be inferred from those references. Installation procedures are included for Copy Tray-L1, the card reader, NE Controller-A1, and the original holder.
Controller, Reader, and Image-Formation Service
Controller components: Replacement coverage extends to the main controller box and PCB, SDRAM, Boot ROM, HDD, and cooling fan. The post-replacement sections explain component transfer, software restoration, and DC controller/HVT PCB setting requirements.
Reader and scanner: Procedures address the reader controller, CCD unit, scanning lamp, scanner motor and drive cable, glass, sensors, and laser scanner unit. White-plate and ADF data adjustments, mirror-base positioning, and post-replacement checks connect component replacement with image setup.
Image formation: Operating explanations link laser output, charging current, developing bias, and toner supply to potential control. Repair sections cover the process unit, photosensitive drum and heater, drum cleaner, charging assemblies and wires, developing cylinder and blade, hopper motors, and potential sensor.
Cleaning-blade and side-seal installation, charging-wire routing and height, and potential-sensor checks provide the detail needed to assess work beyond routine cleaning.
Paper Transport and IH Fixing
Paper-path explanations distinguish the right and left decks, cassettes 3 and 4, manual feed, registration, duplex/reversing paths, and delivery. Replacement and adjustment sections address rollers, motors, clutches, solenoids, belts, feed-roller pressure, and component orientation.
The fixing chapter covers the upper and pressure rollers, thermistors, heater, cleaning web, shutter, separation claws, and inlet guide. Its operating sequences distinguish low-temperature and high-humidity startup, heavy paper, transparencies, bond paper, power saving, and sleep.
Canon warns that a deformed fixing shutter can interfere with and damage the fixing roller surface. The service notes also explain how interrupted HDD access or firmware writing can damage stored data or prevent normal operation. Follow Canon’s isolation and safety precautions around the laser path, high-voltage charging circuits, and heated fixing assembly.
Fault Isolation, Software, and Service References
Level 1 and Level 2 service modes cover DISPLAY, I/O, ADJUST, FUNCTION, OPTION, TEST, and COUNTER. Error details and component maps let technicians relate a reported fault to the relevant sensor, drive, or PCB rather than relying on an error-code description alone.
The Service Support Tool sections distinguish normal and safe download modes. They cover HDD formatting, system and boot software, controller and fax downloads, and SRAM/MEAP backup and recovery. Backup guidance explains how counter data and MEAP applications relate to controller or HDD replacement.
More than 1,000 numbered figures and 200 numbered tables support the text. References include the Wiring Diagram of the Major PCBs, Copy/Box/SEND/Fax/PDL image-data flow diagrams, Arrangement of Rollers and Sensors, IH Fixing Method, General Timing Chart, the 20-sheet General Circuit Diagram (Printer), and the reader circuit diagram.
Periodic-replacement and durable/consumable tables provide factory part numbers and service-life guidance. Special tools include the FY9-3009 mirror-positioning tool, FY9-9196 NA-3 test sheet, FY9-3012 potential-sensor electrode, FY9-3014 environment-sensor checker, and FY9-3038/FY9-3039 tester extension pins.
Selected Fixing-Web and Inlet-Guide Adjustment Data
For a new fixing web, the solenoid-adjustment section specifies drive-lever travel of 8.6 mm. Used-web positioning is treated separately, so the new-web specification is not a universal replacement setting.
The fixing inlet-guide section specifies a front-to-rear height difference of 0.2 mm or less. These component-specific references accompany the illustrated adjustment sections.
