Yamaha Breeze 125 ATV Service Manual Set, 1989–2004 (P/N 3FA-28197-10)

Use the model-specific supplements alongside the base repair sections. The YFM125S instructions refer back to the base manual for maintenance checks and to the P/PC supplement for switch testing.

PDF Search, Bookmarks and Page Breakdown

Search and diagram detail: Text search is available in the YFM125S and P/PC sections. The M(C) supplement and base manual do not have searchable service text. Embedded bookmarks cover all four sections and the main repair chapters. Small wiring labels are readable when zoomed.

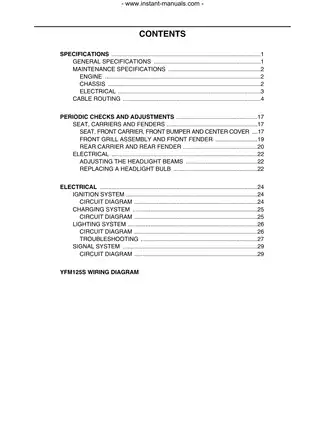

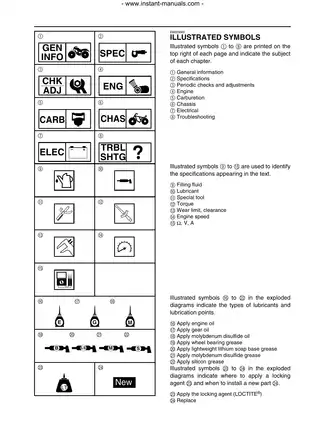

The ZIP contains one printable, 309-page PDF. This total already includes 17 pages of usage notes, symbol guides, indexes and contents, plus four memo pages.

Engine Overhaul, Belt Drive and Electrical Diagnosis

This content selection is not a complete table of contents; further topics include battery inspection and headlight aiming.

• Engine repair: Step-by-step removal, teardown and reassembly cover the cylinder head, valves, piston, crankshaft and crankcase.

• Belt drive and clutch: Primary and secondary sheave service, centrifugal-clutch inspection, reverse-gear components and shift-mechanism repair.

• Carburetor service: Mikuni VM18SH disassembly, needle-valve inspection, float-height adjustment and fuel-level testing.

• Chassis repair: Drum-brake service, rear-axle removal, steering and suspension inspections, and drive-chain alignment.

• Electrical troubleshooting: Model-specific wiring diagrams and diagnostic charts address ignition, electric starting, charging, lighting and indicator circuits.

• Scheduled maintenance: Valve-clearance checks, compression testing, engine and transmission oil service, and separate engine/V-belt air-filter maintenance.

The procedures are suited to mechanics familiar with workshop measurement and the use of the specified special tools.

Model Codes and Supplement Differences

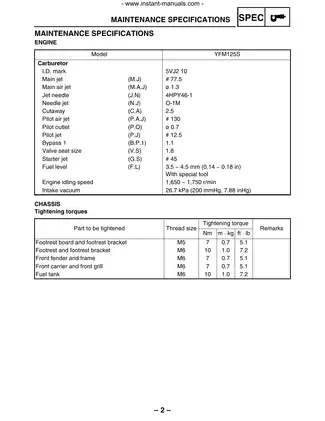

The M(C) supplement distinguishes non-California 3FAR from California 3FAP specifications. The P/PC material identifies the corresponding versions as 3FAW and 3FAX. Separate carburetor calibrations help identify the correct jetting and adjustment data for each version.

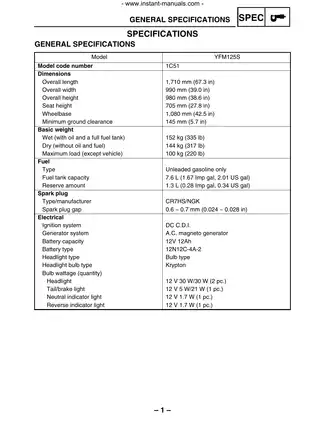

YFM125S model code 1C51 has DC C.D.I., different charging and lighting circuits, and its own carrier and fender removal instructions. The P/PC supplement adds brake-light-switch checks and a steering assembly view showing the cable joint and bracket.

Internal Engine and Sheave Service

Overhaul coverage extends to valve-guide replacement, valve-seat refacing and lapping, oil-pump inspection, cam-chain timing, and crankshaft/balancer alignment.

An in-frame service list identifies top-end and drive components that can be serviced without removing the engine, helping establish how much disassembly a job requires.

The Lubrication Diagram shows the oil circuit. The Primary Sheave and Secondary Sheave exploded view identifies the belt-drive assembly, with tool references including crankcase separator YU-01135 / 90890-01135 and clutch spring holder YS-28891 / 90890-01337.

Crankcase-splitting cautions explain how forcing the halves apart or striking gasket surfaces can damage the mating faces.

Fuel System, Steering and Rear Axle

The Carburetor Sectional View maps the air, fuel and mixture passages. Fuel-level checks use gauge 90890-01312, and the M(C) supplement supplies spark-arrester cleaning instructions.

Rear-axle instructions cover hub bearing and seal replacement and the staged inner/outer nut tightening procedure. Steering work includes tie-rod positioning and toe-in adjustment.

The axle removal and installation notes warn that hammering directly on the axle end can damage its threads and splines.

Starter Tests and Circuit Fault Tracing

Starter-motor service includes disassembly, brush and commutator measurements, and armature resistance and insulation tests. Separate checks address the starter relay and starting circuit cut-off relay.

Ignition System, Electric Starting System, and Charging System circuit diagrams accompany the fault-finding charts. Switch-continuity tables, wire-color references and pickup-coil resistance specifications support component and harness testing.

Reverse-indicator limitation: The base manual’s diagnostic flow ends after the shift-lever-switch check on printed page 7-48; the continuation is absent.

Standard shop safety practices and proper protective equipment are essential, especially when the ATV is raised or spring-loaded clutch parts are being serviced.

Examples of Cold Valve Clearances and Belt Wear Limits

For the YFA1(W) base engine, valve-adjustment data specify cold intake clearance of 0.08–0.12 mm and cold exhaust clearance of 0.10–0.14 mm. These values accompany the feeler-gauge checks and adjuster procedures.

Its V-belt inspection data list a standard width of 20.1 mm and a wear limit of 18.1 mm. Reference tables also provide cylinder-head flatness limits, compression-test data, fluid capacities, and engine and chassis tightening torques.
