1990–1995 Yamaha YFM80 Badger 80 ATV Factory Service Manual Set (P/N LIT-11616-08-19)

Use the supplement’s model-specific data alongside the base manual’s service and repair procedures.

The supplement provides revised specifications and wiring information; it is not a standalone overhaul manual.

Engine Overhaul, Shaft Drive, and Electrical Fault Tracing

• Engine repair: Step-by-step engine removal, crankcase separation, cylinder-head service, piston and ring inspection, camshaft service, and reassembly.

• Clutch and shifting: Centrifugal clutch disassembly, plate inspection, clutch-height adjustment, and transmission, shift-fork, shift-cam, and shift-shaft service.

• Carburetion and tune-up: Carburetor overhaul, float-height and fuel-level adjustment, valve-clearance setting, compression testing, and ignition-timing checks.

• Brakes and chassis: Drum-brake service, wheel-bearing replacement, toe-in adjustment, steering inspection, and shock absorber, lower-arm, and swingarm removal.

• Shaft drive: Rear-axle and drive-pinion removal, gear and bearing inspection, middle-drive shim selection, and reassembly procedures.

• Electrical diagnosis: Ignition, starting, charging, and neutral-indicator troubleshooting, supported by circuit diagrams, switch-continuity charts, and wiring diagrams.

Written for mechanics, the base manual uses workshop measurements and identifies the special tools required for the documented service procedures.

Internal Engine Repair and In-Frame Service

Cylinder-head work extends to valve-guide replacement, valve-seat refacing and lapping, and rocker-arm inspection. Piston and ring tables distinguish standard clearances from wear limits, while assembly instructions cover cam-chain timing.

The in-frame service notes identify components that can be removed with the engine installed, including the cylinder head, piston, clutch, and CDI magneto. This helps a mechanic assess the repair scope before committing to engine removal.

Crankcase-separation cautions address damage to gasket mating surfaces from forcing the cases apart or striking the wrong area. The oil-pump installation section also warns that unlubricated crankcase oil passages can lead to engine damage.

Clutch Setup and Drivetrain Assembly

Clutch setup includes washer and plate selection for clutch-boss and friction-plate heights. The procedures identify universal clutch holder YM-91042 / 90890-04086 for work on the clutch-boss nut.

Transmission inspection covers gear engagement, shift-fork movement, and shaft runout. Shaft-drive reassembly adds a middle-gear shim-selection chart and a staged rear-axle nut tightening procedure.

Carburetor Inspection and Variant-Specific Settings

Carburetor inspection distinguishes needle-valve wear, blocked jets, and a sticking throttle valve. Assembly instructions connect float-height measurement to needle-valve condition, with a separate procedure for checking fuel level.

The M/MC supplement separates California and non-California carburetor identification and jetting, allowing those settings to be matched to the corresponding model code.

Drum Brakes, Steering, and Suspension

Brake inspection includes drum-diameter and lining-thickness measurements plus cam-lever indexing. Steering checks cover tie-rod and bushing wear, while cable-routing drawings support reassembly.

Shock-absorber procedures cover removal, inspection, and assembly replacement. The chassis sections also provide lubrication points and component-specific tightening specifications.

Brake and steering work affects vehicle control; follow the manual’s support and post-adjustment safety warnings.

Starting, Ignition, and Charging Diagnosis

The Ignition System, Electric Starting System, and Charging System circuit diagrams accompany troubleshooting charts and electrical test values. The YFM80(D) and YFM80M/YFM80MC wiring diagrams include connector representations and wire-color keys.

Starting-system checks cover the neutral switch, rear brake switch, and starting circuit cut-off relay, helping distinguish an interlock or wiring fault from a starter-motor fault. Starter-motor service includes brush, commutator, and armature inspection.

Examples from the Valve and Cylinder-Head Specifications

For the YFM80(D), the valve-adjustment section specifies cold clearances of 0.05–0.10 mm for the intake and 0.075–0.125 mm for the exhaust.

The cylinder-head inspection section gives a warpage limit of less than 0.05 mm, alongside its inspection and resurfacing guidance.

Text Search, Wiring Detail, and File Contents

Search and diagram detail: OCR text supports searching across both publications, and embedded bookmarks open their chapters and wiring diagrams. OCR errors can affect exact code searches; small wiring labels are best read with zoom.

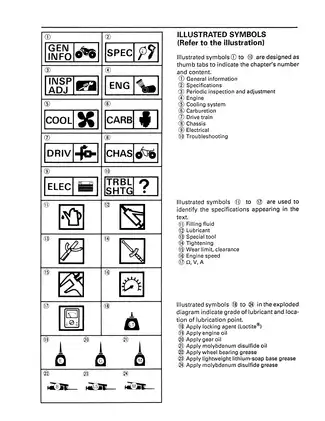

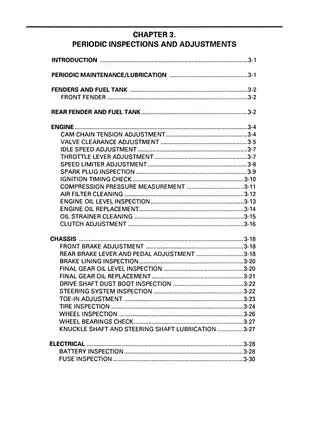

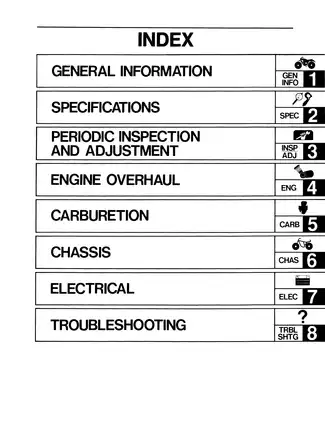

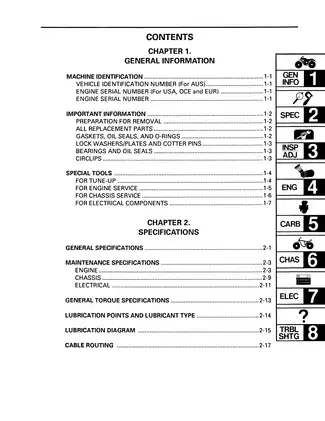

One printable, English-language PDF contains 210 pages. This total includes nine introductory, index, and contents pages in the base manual and three foreword, symbol-key, and contents pages in the supplement.
