2001-2002 Acura MDX Air Bag Restraint Systems Service Manual

Complete service and repair procedures for your 2001-2002 Acura MDX. Includes diagnostics and component locations for SRS systems, part number Abe008.

4.6starstarstarstarstar_half(5)
Acura SUV manual preview - 2001-2002 Acura MDX Air Bag Restraint Systems Service Manual
$16.54 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
4 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Acura Models Covered & Key Technical Specifications

Models: Acura MDX
Sub-models / Variants: 3.2CL, 3.2TL, 3.5RL
Build Years: 2001–2002
Technical Data:

  • Parking brake lining service limit: 0.04 in (1.0 mm)
  • Brake pedal free play (MDX): 0.04–0.20 in (1.0–5.0 mm)
  • Brake pedal height (MDX): 6.44 in (164.0 mm)
  • Parking brake drum diameter (MDX): 8.264–8.267 in (209.9–210.0 mm)
  • Brake bleed screw torque: 80 in-lbs (9 Nm)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
26805 / Mary Diaz
File Size:
98.78 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
SUV
Last updated / verified
Oct 9, 2025

Acura Manual Features & Content Preview

Technical Scope for the 2001–2002 Acura MDX Service Manual

  • Covers 2001–2002 Acura MDX Supplemental Restraint Systems (SRS), airbag safety, diagnostic trouble code (DTC) procedures, and component replacement
  • Official American Honda Motor Co., Inc. technical publication, 2001 edition
  • Contains 36 diagnostic trouble code charts, 35 technical figures, and detailed circuit wiring diagrams for the 2001 Acura MDX
  • Delivered as a direct download the moment payment clears
  • Full-text search finds any part number in seconds
  • This 100-page archive provides the official factory diagnostic parameters and inspection procedures for the SRS and brake systems across the 2001–2002 Acura MDX, 3.2CL, 3.2TL, and 3.5RL platforms

Component and Diagnostic Coverage

This manual documents the entire supplemental restraint system for the 2001 Acura MDX, including the SRS unit, cable reel, side-impact sensors, and occupant position detection system (OPDS). The text details the proper deactivation and activation procedures required before maintenance, emphasizing safety protocols for handling airbag modules and tensioner components. Experts will find specific guidance on using the Honda PGM tester and SCS service connectors for troubleshooting electrical faults, retrieving diagnostic codes, and resetting system memory. The publication also provides extensive specifications for the braking systems on the 2001 Acura MDX, 3.2CL, 3.2TL, and 3.5RL, including disc brake pad clearance, parking brake adjustment, and master cylinder testing.

Technical Specifications Preview

Data sections include torque values for critical fasteners like the steering wheel nut (28 ft-lbs / 38 Nm) and seat belt tensioner mounting bolts (24 ft-lbs / 32 Nm). Electrical reference values for the SRS sensors are documented in the DTC troubleshooting charts, which detail resistance requirements and pinout identification for the various harness connectors. Tolerance tables provide service limits for disc brake rotor runout at 0.004 in (0.10 mm) and parking brake drum diameter specifications for the 2001 Acura MDX. Refer to the provided wiring diagrams for routing information and connector terminal identification across all relevant engine control and restraint sub-systems. An official 100-page Acura technical publication covering the 2001–2002 Acura MDX and related models, documenting SRS diagnostic protocols, electrical system troubleshooting, and comprehensive brake service specifications for the factory-spec build.

Manual FAQ, Purchase & Download Details

Is there a reference for torque specifications related to the air bag system components? keyboard_arrow_down

Manual contains a dedicated torque specifications section that lists the required values for various mounting bolts and nuts throughout the air bag restraint systems.

Can I see which specific models are referenced in this 2001-2002 Acura MDX manual? keyboard_arrow_down

Document specifically covers the 2001-2002 edition of the Acura MDX air bag restraint systems. The content includes component locations, safety precautions, and system operation references relevant to that specific production period.

Does this manual include diagrams and component location illustrations for the SRS units? keyboard_arrow_down

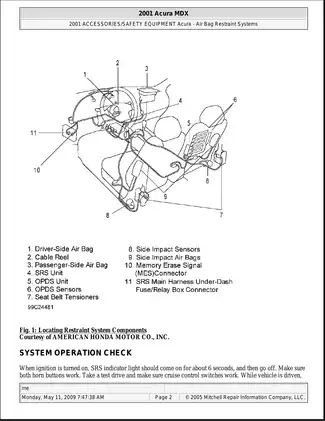

Manual features comprehensive illustrations, such as the locating restraint system components figure, which identifies the positions of the driver-side air bag, SRS unit, cable reel, and other related parts.

Are there lookup resources for spring-loaded lock connectors and cable reel centering steps? keyboard_arrow_down

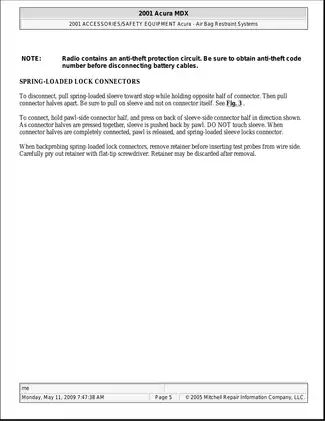

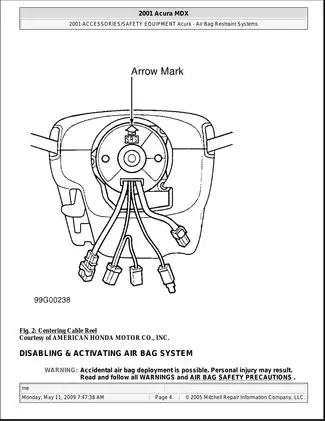

Manual provides guidance on identifying and handling spring-loaded lock connectors through specific figures and descriptive text. It also covers cable reel centering procedures to ensure the arrow mark is positioned correctly after a new unit is installed. These reference materials are found in the adjustments and system sections of the document.
