Mercury/Mariner 8 & 9.9 HP Four-Stroke Outboard Service Manual, 1996–2010 (P/N 90-827857R1)

248 Pages • ZIP Download: 19 Printable PDFs • 5.82 MB

4.5starstarstarstarstar_half(4)
$11.85 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Mercury Models Covered & Key Technical Specifications

Models: Mariner 8hp, 9.9hp

Sub-models / Variants: Manual Start, Electric Start, Bodensee

Model Years: 1996–2010 (1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010)

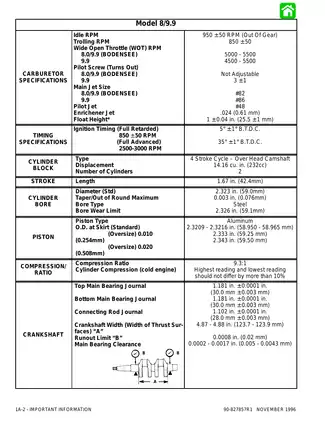

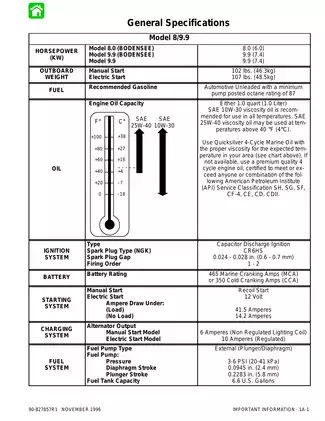

  • Engine displacement: 232 cc (14.16 cu. in.)

  • Engine configuration: 4-stroke, 2-cylinder

  • Idle RPM: 950 ± 50 RPM (out of gear)

  • Compression ratio: 9.3:1

  • Fuel type: 87 octane minimum pump-posted

  • Fuel pressure: 3-6 PSI (20-41 kPa)

  • Engine oil capacity: 1.0 Liter (1.0 US Quart)

  • Spark plug gap: 0.024–0.028 in. (0.6–0.7 mm)

  • Ignition timing: 5° ± 1° BTDC at 850 ± 50 RPM (full retard) and 35° ± 1° BTDC at 2,500–3,000 RPM (full advance)

  • Gear ratio: 2.0:1

Mercury Manual Features & Selected Content Preview

This November 1996 Mercury Marine factory service manual (P/N 90-827857R1) covers Mercury/Mariner 8 and 9.9 HP four-stroke outboards. It distinguishes the standard 9.9 HP model from the 8.0 and 9.9 HP BODENSEE versions and covers short- and long-shaft assemblies.

PDF Search and Chapter Navigation

Text search, bookmarks, and wiring detail: The PDFs have searchable text and embedded bookmarks. Some wire codes and connector pin labels are part of the drawings and are easiest to read when zoomed in. The chapter Home buttons point to an unavailable page in the outline file.

The ZIP contains 19 printable PDFs totaling 248 pages, including the separate one-page service manual outline.


Powerhead, Ignition, and Gearcase Service

Here’s a selection of workshop topics from the manual. It also explains how hull shape and weight distribution affect outboard performance.

  • Powerhead repair: Step-by-step instructions for powerhead removal and reinstallation, crankcase disassembly, cylinder head overhaul, valve clearance adjustment, and timing belt replacement.

  • Ignition and charging: CDI fault isolation with a direct voltage adapter (DVA), plus charging tests for manual-start lighting coils and regulated electric-start systems.

  • Starting systems: Electric starter relay tests and motor overhaul, plus recoil starter disassembly, rope and spring setup, and neutral interlock adjustment.

  • Fuel system: Standard and BODENSEE fuel pump service, carburetor removal and overhaul, float setup, and electrothermal valve testing.

  • Midsection and lower unit: Driveshaft housing disassembly, gearcase pressure leak testing, water pump service, and lower-unit teardown and reassembly.

  • Controls and wiring: Throttle and shift linkage adjustment for tiller-handle, side-shift, and remote-control layouts, with separate manual- and electric-start wiring diagrams.

The repair sections are suited to marine technicians and experienced outboard owners familiar with electrical testing and precision engine measurements.

Maintenance, Rigging, and Engine Checks

The maintenance schedule runs from pre-use and post-use checks through annual service, longer-interval work, and storage. Procedures cover spark plugs, timing belt inspection, engine oil and the reusable oil filter, fuel lines and filter, lubrication points, and gearcase lubricant.

There are also procedures for propeller removal and installation, corrosion-control anodes, cooling-system flushing, battery storage, and electric-start fuse replacement.

Rigging and recovery coverage includes transom mounting and height checks, Ride-Guide steering cable installation, remote cable and wiring harness hookup, propeller selection, and recovery after complete submersion.

Compression and cylinder leakage testing help separate mechanical faults from tuning problems. The leakage chart links where air escapes to possible faults at the intake or exhaust valves, piston or rings, or head gasket.

Internal Engine and Lower-Unit Repair

The cylinder head chapter covers rocker arms, the camshaft, valve guides and seats, and the oil pump. Powerhead inspection includes bore and piston measurements, piston pin and ring checks, crankshaft and connecting rod inspection, and thermostat testing. A chart pairs crankcase marks with color-coded main bearings.

Midsection coverage identifies the swivel bracket, swivel head, clamp bracket, steering handle, and Design I and Design II pivot pins. It distinguishes bracket and tilt tube jobs that can be done with the powerhead and gearcase still in place.

The Gear Housing (Propeller Shaft) exploded view shows the propeller shaft and bearing carrier. Lower-unit procedures cover gear and shaft inspection, driveshaft and shift shaft service, bearing, bushing, and seal replacement, and final shift checks. Pinion depth and forward and reverse gear backlash are non-adjustable.

Incorrect timing belt indexing can let the valves hit a piston. Reversing the vane set on a used water pump impeller can cause the vanes to break soon after the outboard returns to service.

Electrical Diagnosis and Variant Details

Ignition charts cover weak or absent spark, hard starting, erratic timing, high-speed misfire, surging, and low-oil-pressure speed limiting. Tests cover the trigger coil, stator, CDI, and ignition coils. The manual also covers flywheel removal and installation and verification of the non-adjustable CDI timing. A starting circuit flowchart and Starter Motor Assembly exploded view support electric starter diagnosis and repair.

BODENSEE service differs at the fuel pump cooling jacket, water hose routing, and parts shown in the Carburetor exploded view. The BODENSEE pilot screw is non-adjustable.

Remote linkage procedures distinguish throttle-arm spring and retaining-ring designs. Commander 2000 diagrams cover manual and electric start, with connector pinouts on the electric-start version. The Commander 3000 panel-mount view identifies the neutral interlock and emergency stop switches.

Secure the outboard before service and disconnect the battery when electrical isolation is required. The ignition tests address high voltage and grounding of the spark plug leads and ignition components. Fuel-system procedures warn about gasoline vapors and fire.

Service Tools and Reference Tables

Named tools include the Carburetor Scale (91-36392), Flywheel Holder (91-83163M), Valve Spring Compressor (91-80949A1), Bearing Carrier Tool (91-13664), and Drive Shaft Bearing Removal Tool (91-824788A1). The repair sections give component-specific torques, fluid capacities, wear and inspection limits, carburetor setup data, and electrical test specifications.

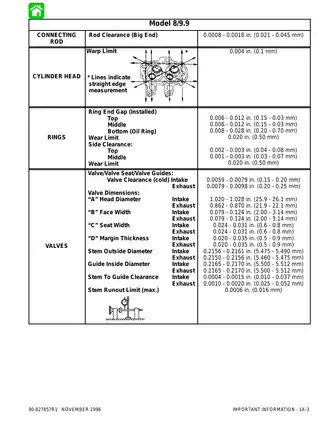

A Look at Valve Lash and Cylinder Bore Limits

The cylinder head chapter specifies cold valve clearance of 0.0059–0.0079 in. for the intake valves and 0.0079–0.0098 in. for the exhaust valves.

Cylinder block inspection distinguishes the standard bore diameter of 2.323–2.324 in. from the 2.326 in. wear limit for a standard-size bore. The chapter gives separate limits for oversize bores.
