Harley-Davidson Electra Glide / Super Glide 1978–1980 Service Manual (P/N 99482-80)

184 Pages • ZIP Download: Printable PDF • 30.57 MB

4.7starstarstarstarstar_half(3)
$18.15 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Harley-Davidson Models Covered & Key Technical Specifications

Models: Electra Glide, Super Glide, FL, FLH, FX, FXE, FXEF, FXS

Models & Model Codes: First two VIN characters identify the model/variant.

FL — FL-80 (6H)

FLH — FLH-1200 (2A), FLH-80 (3G), FLH-80 Classic (3H), FLH-1200 Police (7H), FLH-1200 Shrine (8H), FLH-80 Police (9H), FLH-80 Shrine (1K)

FX — FX-1200 (2C)

FXE — FXE-1200 (9D), FXE-80 (6G)

FXEF — FXEF-1200 (5E), FXEF-80 (6E)

FXS — FXS-1200 (2F), FXS-80 (7G)

Sub-models / Variants: 1200cc, 1340cc, 80 cubic inch (FL-80, FLH-80), Police, Shrine, Laced Wheels, Cast Wheels

Model Years: 1978–1980 (1978, 1979, 1980)

VIN Identification: 1978–1979 VIN format uses H in the second-to-last position; 1980 VIN format uses J in the second-to-last position (manufacturer identification).

Transmission Variants: Early 1979 and earlier: drum shifter; late 1979 and later: plate shifter.

Serial Numbers / Production Changes: Taper-face second compression rings: 1340cc engines beginning with crankcase No. 1479-345-165; 1200cc engines beginning with crankcase No. 179-023-001. Late-1980 FL and FX motorcycles above VIN 26625-J0: square-section seal calipers at the FL front/rear and FX rear.


  • Engine: 4-cycle, 45 degree V-Twin

  • Engine Displacement: 1200cc (73.66 cu in), 1340cc (81.6 cu in)

  • Horsepower: 60 HP at 4800 RPM (FL-80), 60 HP at 5200 RPM (FLH), 65 HP at 5400 RPM (FLH-80)

  • Transmission: 4-speed constant mesh

  • Ignition Timing: 35° BTC fully advanced

  • Oil Capacity: 4 U.S. quarts

  • Spark Plug Gap: 0.038–0.043 in.

Harley-Davidson Manual Features & Selected Content Preview

This is the 1980 Harley-Davidson Service Manual, P/N 99482-80, for 1978½–1980 Electra Glide FL/FLH and Super Glide FX/FXE/FXEF/FXS, covering motorcycles manufactured after January 1, 1978.

PDF Navigation, Wiring Legibility, and Page Count

Search and reading: The PDF has no searchable text or PDF bookmarks. Small wiring-diagram labels are readable when enlarged. Some body-text line endings are clipped at the right page edge.

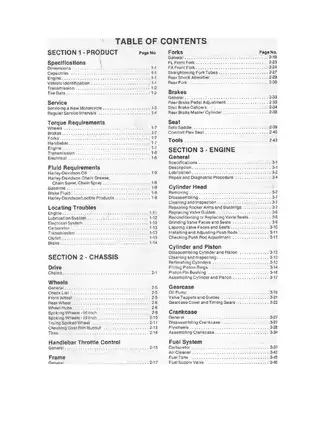

The ZIP contains one printable PDF with 184 pages, including two covers, three introductory pages, two general contents pages, and six section contents pages.


Engine Rebuilding, Chassis Service, and Electrical Diagnosis

The following is a selection of covered work, not a complete contents list. Other examples include throttle-control repair and Comfort Flex seat adjustment.

  • Engine repair: Step-by-step cylinder-head removal and reconditioning, valve-guide and valve-seat work, pushrod adjustment, cylinder and piston inspection, fitting and refinishing, and piston-pin bushing service.
  • Wheels and chassis: Chain service, wheel removal and hub work, spoke lacing and truing, cast-rim runout checks, and frame-alignment checks.
  • Suspension and brakes: FL and FX fork overhaul/straightening, rear-fork work, rear shock assembly service, master-cylinder and caliper repair, and hydraulic bleeding.
  • Transmission and starting: Clutch disassembly/inspection/assembly, electric starter shaft and solenoid work, kick-starter and starter-clutch repair, main-drive-gear oil-seal replacement, and mainshaft/countershaft service.
  • Electrical testing: Switch diagnosis, charging-system tests, alternator removal/installation, ignition-system diagnosis, battery testing, and Prestolite and Hitachi starter-motor repair.
  • Workshop references: Periodic maintenance schedules, a general fastener-tightening chart, component-specific torque requirements, fluid and lubricant requirements, locating-trouble charts, and factory special-tool references.

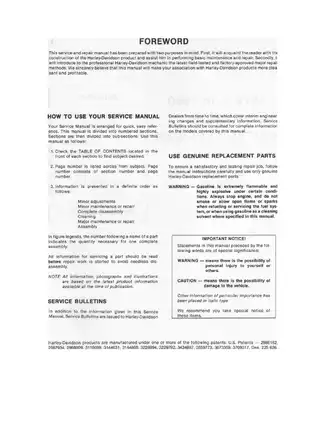

The foreword addresses both basic maintenance and professional major repair. Routine service suits mechanics familiar with these motorcycles; crankcase, flywheel, valve-seat, fork-straightening, and transmission setup work requires appropriate measuring tools and workshop equipment.

Engine Diagnosis, Internal Repairs, and Carburetors

Troubleshooting: Compression and cylinder-leakage tests accompany diagnosis of valve-train noise, oil consumption, and crankcase-breathing problems. These checks help distinguish cylinder sealing faults from other causes before selecting a repair procedure.

Internal engine work: Oil-pump service, tappets and guides, gearcase timing gears, flywheel inspection/truing, and crankcase assembly extend the coverage beyond top-end work. Cylinder Head and Crankcase exploded views identify assembly relationships.

Piston-ring changes: The cylinder section distinguishes taper-face second compression rings for 1340cc engines beginning with crankcase No. 1479-345-165 and 1200cc engines beginning with No. 179-023-001.

Fuel system: Keihin carburetor disassembly, inspection, assembly, and troubleshooting accompany fuel-system repair. Separate procedures distinguish the 1979-and-earlier carburetor from the 1980 design.

Wheel, Fork, and Brake Variants

Wheel procedures distinguish 16- and 19-inch spoke lacing and truing. Adjustable FL fork procedures cover solo and sidecar setup, supported by the FL Adjustable Fork exploded view.

Rear shock assembly work covers disassembly and spring-related service; defective shock absorbers are replaced, not internally rebuilt.

The Disc Brake exploded view covers FL front/rear and FX rear applications. For late-1980 FL and FX motorcycles above VIN 26625-J0, the brake section identifies square-section caliper seals in those positions. Its warning distinguishes marked front and rear calipers: different piston retraction makes them noninterchangeable, with consequences for braking.

Shifter Changes and Model-Specific Wiring

Transmission setup: Shifter linkage adjustment, early/late shifter-cover procedures, and shifter-fork setup accompany shaft, bearing, seal, and case work. The Countershaft and Case Assembly exploded view supports component identification.

Early-1979-and-earlier drum-shifter hardware is separated from the late-1979-and-later plate-shifter arrangement. The tool references distinguish the 96384-39 Fork Shifter Gage for the earlier arrangement from the 96385-78 gage for the later design.

Wiring diagrams: Separate diagrams cover 1978½–1979 FL/FLH, FX/FXE, and FXS/FXEF models, plus 1980 FL/FLH, FXE, and FXS/FXEF. Section drawings, setup diagrams, test circuits, and charging-system test arrangements supplement the schematics.

Ignition generations: The manual separates the 1979-and-earlier system from 1980 electronic advance. It warns that interchanging the earlier coil and the electronic-advance coil can damage electronic components.

Workshop Equipment and Coverage Limits

Factory-tool pages identify the 95500-80 Wheel Truing Stand, 96245-51 Fork Stem and Cross Member Aligning Gage, and 95952-33 Connecting Rod Clamping Tool. Together with the shifter-gage references, these help assess whether the shop has the equipment required for a planned repair.

FXWG is outside the stated model-coverage line, despite an FXWG-80 entry in the identification table. The foreword directs technicians to Harley-Davidson Service Bulletins for interim engineering changes and supplementary information.

Mechanical repair carries inherent risk; follow the manual’s warnings and use proper workshop equipment, especially for brake hydraulic work, fuel-system service, spring-loaded assemblies, and major engine or chassis repair.

Examples of Oil-Pressure and Ignition-Coil Test Specifications

The engine section gives operating oil pressure as 12–35 psi at 2,000 rpm with the oil at normal operating temperature, alongside its pressure-checking procedure.

Ignition-coil troubleshooting specifies primary resistance of 4.7–5.7 ohms for 1979-and-earlier coils and 3.3–3.7 ohms for 1980-and-later coils. The separate ranges belong to the different ignition generations addressed in the manual.
