Yamaha Grizzly 80 ATV Manual Set, 2005–2006 (P/N LIT-11616-18-47)

Yamaha specifies using the Grizzly service supplement together with the included base manual and earlier supplement. The owner’s manual covers operation, rider supervision, and preventive maintenance.

Text Search, Bookmarks and Wiring Detail

Search and diagram detail: The service PDF supports text search in the YFM80GT supplement; the earlier service sections and appended wiring diagrams are not searchable. The owner’s PDF has searchable operating and maintenance text, with some image-based warnings and end matter outside text search. Both files include PDF bookmarks. Small connector and wire-color labels in the large wiring diagrams require zooming.

The ZIP download contains two printable PDFs totaling 397 pages: a 252-page service file and a separate 145-page owner’s manual. These counts include five nontechnical supplementary pages, two warranty pages, and a two-page safety reply card.

Engine Repair, Electrical Diagnosis and Rider Operation

These selected contents show the main workshop and operating coverage. Other included topics include cleaning and long-term storage preparation.

• Engine and driveline repair: Engine removal, cylinder-head and valve-train work, piston and clutch service, oil-pump inspection, crankcase separation, transmission and shift-mechanism repair, crankshaft work, middle-gear setup, and shaft-drive service.

• Carburetor and engine checks: Carburetor removal, disassembly, inspection, assembly, installation, and fuel-level adjustment, plus ignition-timing checks, compression testing, and valve, cam-chain, clutch, and throttle adjustments.

• Brakes, steering and suspension: Front and rear drum-brake repair, steering-system removal and inspection, front shock and lower-arm service, rear shock and swingarm work, wheel-bearing checks, toe-in adjustment, and cable routing.

• Electrical troubleshooting: YFM80(D) and YFM80M/YFM80MC wiring diagrams, component tests, and fault-isolation charts for ignition, electric starting, charging, and the neutral-indicator circuit.

• Operation and routine care: Adjustable speed limiter and air-intake restrictor coverage, pre-operation checks, maintenance schedules, and riding techniques for hills, slopes, shallow water, rough terrain, and skids.

The owner volume is suited to operators and adults supervising younger riders, including owners who handle basic maintenance. Yamaha states that the repair literature is primarily for dealers and qualified mechanics and assumes a working knowledge of machine repair.

Starting, Supervision and Routine Maintenance

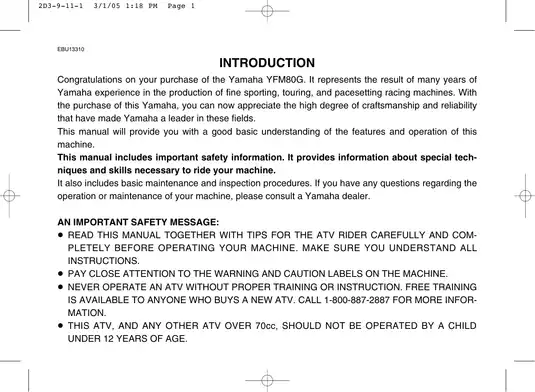

The owner’s manual identifies controls and machine markings, distinguishes cold- and warm-engine starting, and explains the fuel-cock and choke controls. Operating chapters address acceleration, deceleration, break-in, parking on slopes, cargo limits, and shifting.

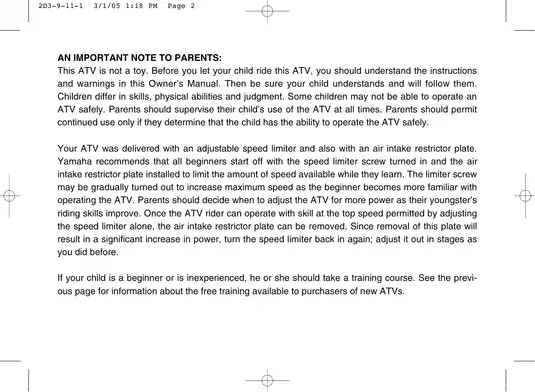

Yamaha explains how the speed-limiter screw and intake restrictor work together, why power should increase in stages as riding skills improve, and why removing the restrictor requires resetting the limiter. Safety coverage prohibits operation by riders under 12 and calls for adult supervision of children under 16. Training, protective gear, off-road use, passenger restrictions, and rollover avoidance are also addressed.

Routine maintenance procedures cover engine and final-gear oil, spark plugs, air-filter and spark-arrester cleaning, idle adjustment, brake-shoe inspection, control free play, clutch adjustment, cable and steering lubrication, wheel removal and installation, battery care, fuse replacement, and basic starting troubleshooting.

Engine Teardown and Assembly Checks

The base service manual uses exploded job diagrams and step-by-step procedures. Cylinder-head, cylinder, piston, clutch, shift-shaft, starter-drive, oil-pump, and CDI-magneto work can be performed without first removing the engine.

Internal inspection extends to valve guides and seats, camshaft and rocker arms, piston rings, crankshaft, transmission, and middle gear. Assembly instructions cover cam-timing alignment, shift-fork positioning, clutch stack-height checks, and middle-driven-gear shim selection. Reference tables supply wear limits, clearances, lubrication points, approved lubricants, and component-specific torque data.

Listed tools include the YM-01235 / 90890-01235 rotor holder, YM-91042 / 90890-04086 clutch holder, and YM-04019 / 90890-04019 valve spring compressor.

Factory cautions address gasket-surface damage during crankcase separation and engine damage from unlubricated oil-pump passages during assembly. Air-filter service also warns that running without the element can accelerate piston and cylinder wear.

Drum Brakes, Steering and Shaft Drive

Exploded views support front-wheel/front-brake service, rear-brake repair, steering-system work, and shaft-drive disassembly. Inspection procedures distinguish worn bushings and bearings from damaged steering shafts, shock absorbers, drive gears, and rear axles. Shaft-drive service specifies the YM-37132 / 90890-01422 rear-axle nut wrench.

Support the ATV securely and follow the manual’s warnings when working on its brakes, steering, drivetrain, engine, or electrical system.

Ignition, Starting and Charging Fault Isolation

Separate ignition, electric-starting, charging, and signal-system circuit diagrams accompany the wiring sheets. Diagnostic charts cover switch continuity, ignition spark and coil checks, starter-motor inspection, charging faults, and neutral-indicator problems.

The circuit diagrams and test charts help trace a symptom through the affected switches, relays, wiring, and components before replacement decisions are made. Electrical specifications remain tied to their respective base-manual or supplement configurations.

Selected Carburetor and Pickup-Coil Specifications

For the YFM80GT, the carburetor table specifies a fuel level of 2.5–4.5 mm below the carburetor body edge and a float height of 20.0–22.0 mm. These are separate reference measurements for carburetor inspection and adjustment.

The same supplement lists pickup-coil resistance as 264–396 Ω at 20°C (68°F), associated with the white/blue and white/red leads. The electrical tables pair resistance specifications with test temperatures and lead colors.
