Suzuki GSX1300R Hayabusa 1999–2003 Service Manual Set

The supplement updates the base manual and refers back to its chapters for procedures that remain unchanged. Together, they provide the RX service instructions and the documented RY revisions.

PDF Bookmarks, Wiring Detail, and Page Count

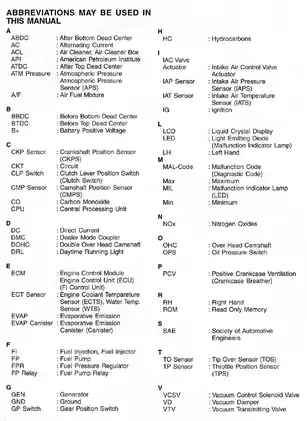

Search and diagram navigation: Text search is unavailable. Embedded PDF bookmarks link to the main sections and the GSX1300RY supplement. Small labels in the checked wiring diagrams are readable when enlarged.

The download contains one printable, 503-page PDF, including the publications listed above and one additional illustrated cover page.

Engine Overhaul, FI Diagnosis, and Chassis Service

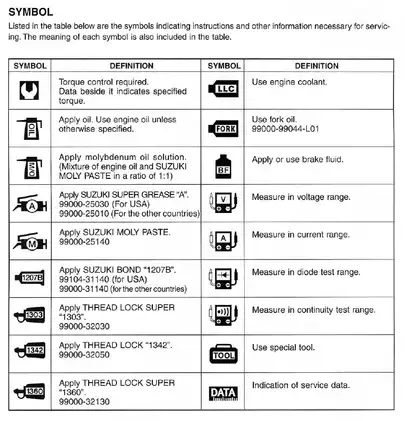

These selected coverage highlights outline the main workshop areas. Further topics include fast-idle adjustment and steering-damper inspection.

• Engine and transmission: Engine removal, crankcase separation, cylinder-head service, crank balancer inspection, starter clutch repair, and transmission and gearshift mechanism disassembly.

• Fuel injection and intake: Dealer-mode diagnostics, fuel-pressure and pump testing, throttle-body service, throttle valve synchronization, sensor checks, and intake-air control inspection.

• Cooling and lubrication: Cooling-system pressure testing, thermostat inspection, water-pump overhaul, oil-cooler service, and engine oil-pressure checks.

• Chassis and brakes: Front fork service, steering and swingarm inspection, brake caliper and master-cylinder overhaul, hydraulic clutch bleeding, and drive chain alignment.

• Electrical systems: Charging and electronic ignition diagnosis, starter-motor overhaul, side-stand interlock testing, and combination-meter inspection.

• Emission controls: California evaporative-system checks, canister hose routing, pressure-control valve inspection, and PAIR reed-valve and air-control valve testing.

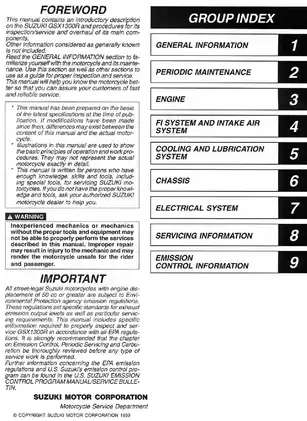

This manual is written for people with sufficient knowledge, skills, and tools to service Suzuki motorcycles, including access to the specified special tools.

Engine Repair and Maintenance

Maintenance and valve train: Fuel and oil recommendations accompany periodic maintenance charts, compression testing, and tappet shim selection tables. Step-by-step procedures cover valve-clearance adjustment and cam chain tensioner replacement, supported by valve timing drawings.

Internal inspection: Cylinder and piston wear limits, Plastigauge camshaft journal measurements, and bearing selection data support engine overhaul. Exploded views, transmission cross-sections, and tightening tables accompany the disassembly and reassembly procedures.

The cylinder-head bolts have a staged tightening sequence. Uneven tightening of the camshaft journal holders can damage the head or holder thrust surfaces, a specific assembly risk addressed in the engine chapter.

Working on the powertrain requires mechanical understanding; consult a qualified technician if a procedure exceeds your experience.

FI Diagnosis and Throttle Synchronization

Dealer-mode fault codes are paired with circuit checks and ECM connector references. These procedures help distinguish injector or sensor faults from wiring and connection problems before component replacement. The mode select switch is identified as Suzuki tool 09930-82710.

Throttle valve synchronization includes calibration of vacuum balancer gauge 09913-13121. The text also explains ECM injection timing and load maps, throttle-position sensor adjustment, and SRAD intake-air controls.

With the throttle cables disconnected, allowing the throttle valve to snap shut can damage the valve or throttle body. The removal procedure specifically addresses this handling risk.

Cooling and Lubrication Circuits

The cooling circuit diagram follows coolant circulation through the engine, radiator, and thermostat. Water-pump procedures cover disassembly and seal installation; the engine lubrication system chart traces oil delivery to internal components.

Suspension, Brakes, and Final Drive

Fork overhaul, wheel bearings, steering adjustment, swingarm linkage inspection, and drive chain cutting and joining are covered. The fork cartridge must remain assembled; rear shock service covers removal, inspection, replacement, and adjustment because the shock unit itself is not serviceable.

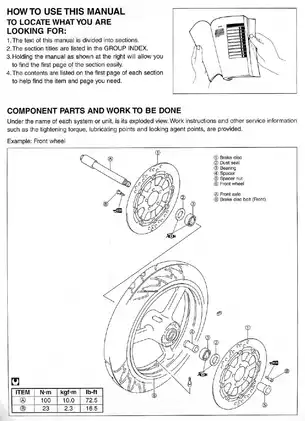

Brake and hydraulic clutch sections describe seal inspection, component assembly, and bleeding. Exploded views show component order, lubrication points, and specified fasteners.

Electrical Diagnosis and Emissions Routing

Charging-system troubleshooting charts and the starter/side-stand interlock circuit accompany generator, regulator, relay, and ignition checks. Market-specific wiring diagrams, wire-color legends, and harness routing drawings support circuit tracing.

California evaporative-system diagrams show canister connections and hose routing. PAIR system inspection covers the reed valves and vacuum-operated air-control valve.

GSX1300RY Supplement Changes

The supplement documents elimination of the oil catch tank, revised crankcase breathing, and changed oil capacities. It also details piston-ring and clutch changes, revised fuel hoses, and updated fuel-gauge inspection and wiring information, helping identify which procedures and parts arrangements apply to the RY variant.

Valve, Injector, and Pedal Data Preview

Cold-engine valve clearances are 0.10–0.20 mm for intake valves and 0.20–0.30 mm for exhaust valves.

Injector resistance is specified at 11–16 Ω at 20°C (68°F), measured between the disconnected injector’s terminals. The rear brake pedal height is 55–65 mm below the top of the footrest, giving the reference point needed to interpret the adjustment specification.
