Suzuki GSX-R750 2006–2007 Service Manual Set (P/N 99500-37130-01E)

590 Pages • ZIP Download: 3 Printable PDFs • 47.52 MB

5.0starstarstarstarstar(1)
$17.89 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Suzuki Models Covered & Key Technical Specifications

Model & Model Code: GSX-R750 (GSX-R750K6 for service, K6–K7 for parts diagrams)

Sub-models / Variants: E-02 (U.K.), E-19 (E.U., GSX-R750 and GSX-R750U2), E-24 (Australia), E-03 (U.S.A. excluding California), E-28 (Canada), E-33 (California), GSX-R750UF (information-label table)

Model Years: 2006–2007

Serial Numbers: GSX-R750K6 effective frame numbers — JS1CF111100100001 – (E-02 and E-19 GSX-R750), JS1CF211100100001 – (E-19 GSX-R750U2), JS1CF121300100001 – (E-24), JS1GR7KA 62100001 – (E-03, E-28, and E-33)


  • Engine: Four-stroke, liquid-cooled, DOHC, 4-cylinder

  • Displacement: 750 cm³ (45.8 cu. in)

  • Compression ratio: 12.5:1

  • Transmission: 6-speed constant mesh, 1-down/5-up shift pattern

  • Idle speed: 1 200 ± 100 r/min

  • Ignition timing: 8° B.T.D.C. at 1 200 r/min

  • Brake fluid spec: DOT 4

  • Engine oil capacity (overhaul): 2 900 ml (3.1/2.6 US/Imp qt)

  • Coolant capacity: 2.7 L (2.9/2.4 US/Imp qt)

  • Drive chain: RK525ROZ5Y, 116 links

Suzuki Manual Features & Selected Content Preview

Publication Pages
Suzuki GSX-R750K6 Factory Service Manual (2006 model), P/N 99500-37130-01E, prepared December 2005, © 2006 522
Suzuki GSX-R750 K6–K7 Illustrated Parts Diagrams (2006–2007) 67

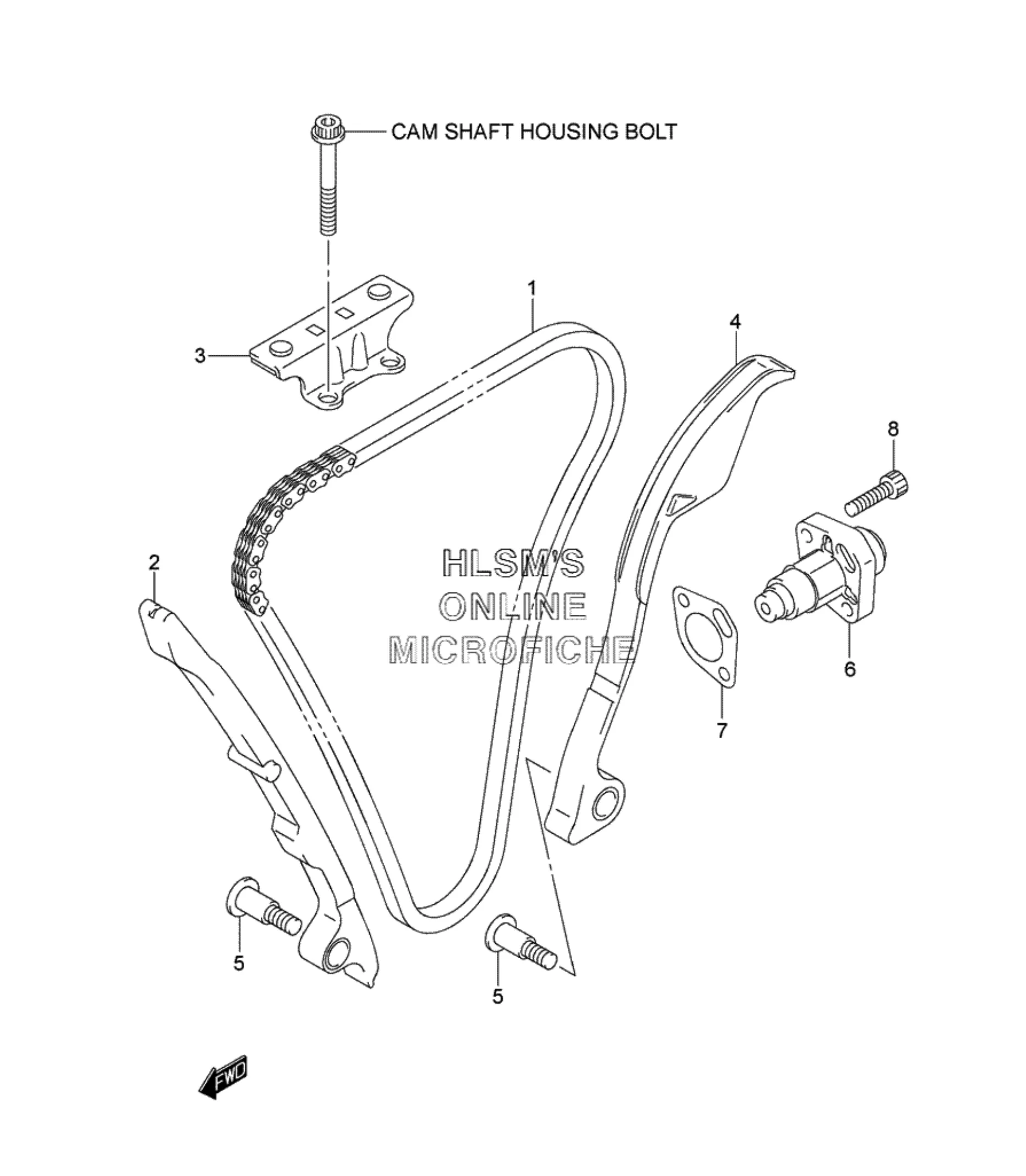

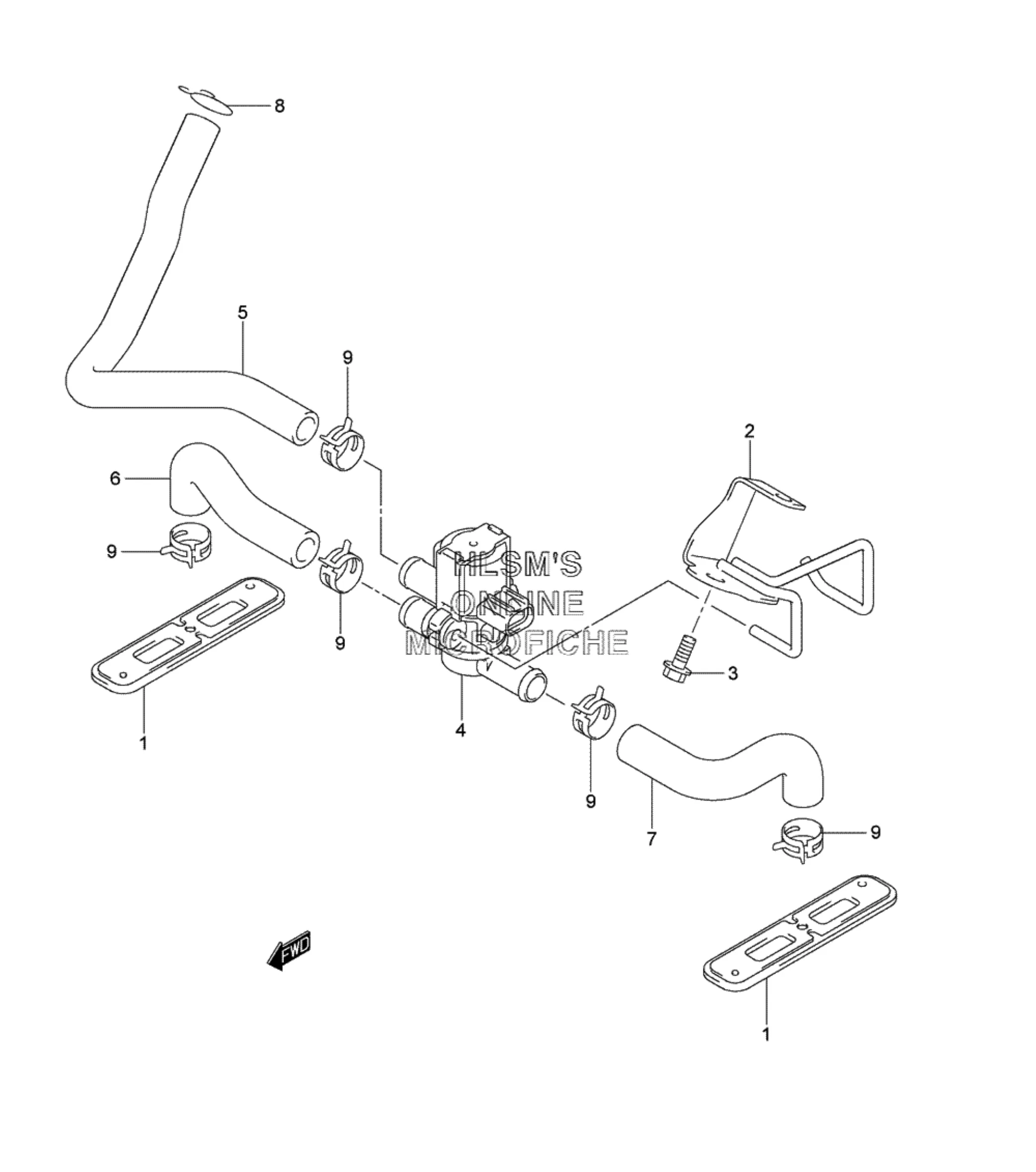

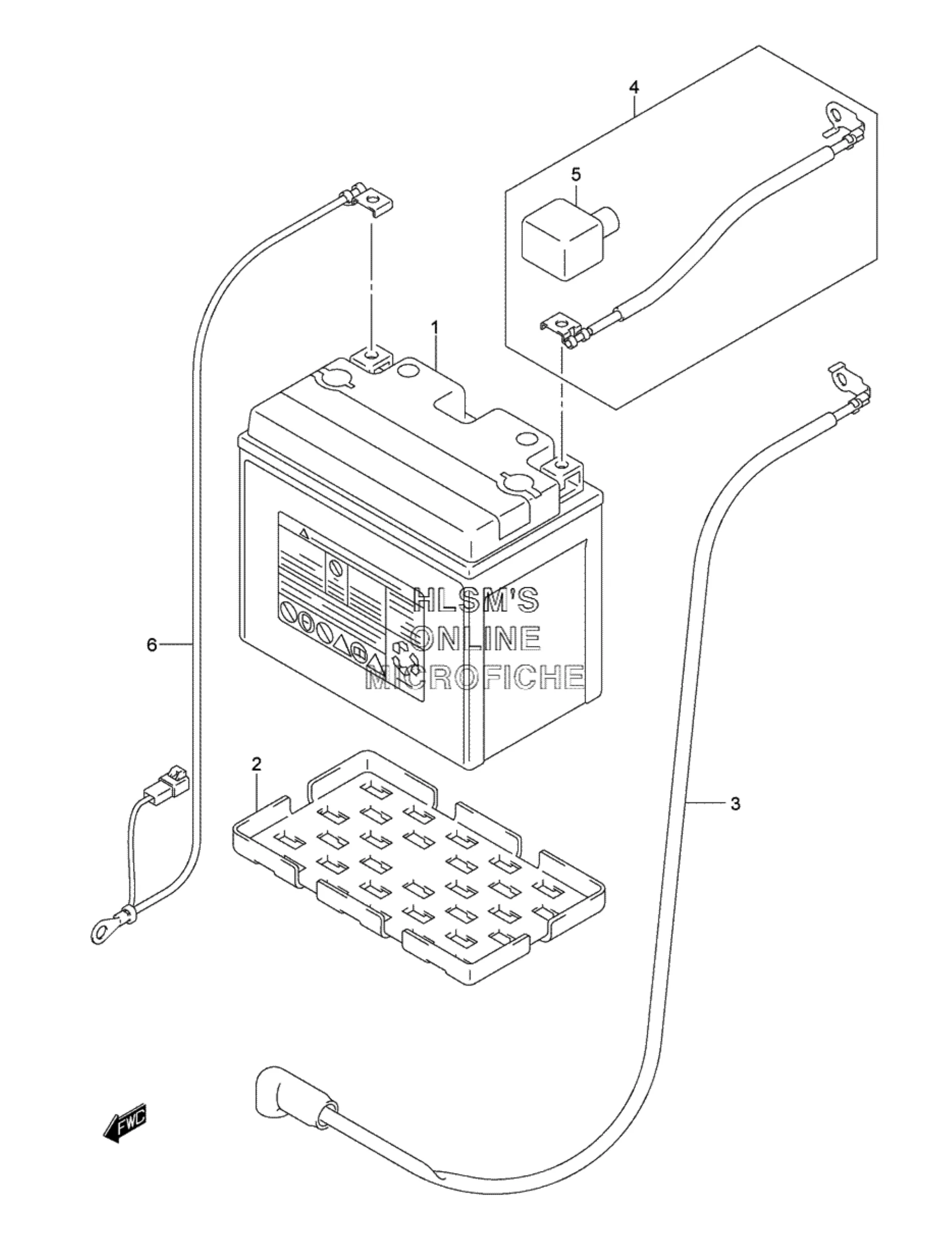

The factory manual covers workshop procedures for the K6. The companion diagrams use numbered callouts to identify parts and assemblies, and K7 coverage in this set is limited to those illustrations.

PDF Search and Diagram Navigation

Search and bookmarks: The workshop manual has searchable text and chapter bookmarks. Small connector and wire-color labels on both full wiring diagrams are readable when zoomed in. The parts diagrams have page bookmarks labeled by image filename, with no text search. The reference sheet is searchable and has no embedded bookmarks.

The ZIP contains three printable PDFs totaling 590 pages. That count includes the workshop manual’s front and back covers and publication page, the parts diagrams’ cover, and a separate one-page parts-fiche reference sheet.


Engine Overhaul, FI Diagnosis, and Chassis Service

The selected topics below focus on common workshop jobs. The manual also covers radiator-cap testing and cooling-system bleeding.

  • Engine and transmission: Step-by-step procedures for engine removal and installation, cylinder-head and cam-drive service, crankcase teardown, clutch repair, and gearbox disassembly.
  • Fuel delivery and throttle bodies: Fuel pressure and discharge tests, pump and filter service, primary and secondary injector inspection, sensor adjustment, and throttle-valve synchronization.
  • Fuel injection diagnostics: Dealer-mode and Suzuki Diagnosis System (SDS) procedures, DTC charts, fail-safe operation, actuator tests, and fault-code reset.
  • Suspension, steering, and brakes: Inverted-fork overhaul, steering bearings and damper service, swingarm and linkage work, and front and rear caliper and master-cylinder repair.
  • Wheels and drive chain: Wheel-bearing service, tire removal and installation, wheel balance weights, and drive-chain cutting and joining.
  • Electrical troubleshooting: Charging and starting tests, side-stand and ignition interlock diagnosis, and checks for the combination meter, lighting, switches, relays, and battery.
  • Service references: Mileage- and time-based maintenance charts, component torque tables, service limits, and harness, cable, and hose routing drawings.

Suzuki wrote the workshop manual for people who already have the knowledge, skills, and special tools needed to service its motorcycles.

Engine Service and Valve Adjustment

The engine chapter identifies which components can be serviced in the frame, including the clutch plates and camshafts, so you can tell which jobs require pulling the engine. Internal service covers pistons, the crankshaft and connecting rods, balancer shaft, and gearshift mechanism, with wear checks and bearing selection data for reassembly.

Valve service includes cold-clearance checks, intake and exhaust shim-selection charts for the 21-size tappet shim set P/N 12800-05830, camshaft timing, and cam-chain tensioner inspection. The cooling and lubrication chapter covers water-pump seal inspection and oil-cooler service, with an engine lubrication chart for tracing oil flow.

Fuel Injection and Electrical Diagnosis

On the returnless fuel system, the pressure and discharge tests help narrow a delivery fault to the pump, filter, or regulator. Throttle-body service includes disassembly, cleaning, TP and STP sensor settings, fast-idle adjustment, and synchronization across all four cylinders.

The listed DTCs from C11 through C60 have circuit-specific checks for components such as ignition coils, both injector stages, the secondary throttle valve actuator, the PAIR solenoid, and the fuel-pump and cooling-fan relays. SDS can compare saved baseline readings with data captured when a fault occurs. The tool references identify the SDS set 09904-41010 with CD-ROM Ver. 7 99565-01010-007, mode-select switch 09930-82720, TPS test harness 09900-28630, and fuel-pressure adapter and hose tools 09940-40211 and 09940-40220.

The FI wiring schematic and ECM terminal map help trace a fault to the correct connector circuit. The two main wiring diagrams group E-02, E-19, and E-24 separately from E-03, E-28, and E-33. The manual covers the heated oxygen sensor on E-02 and E-19, the immobilizer on E-02, E-19, and E-24, and evaporative emissions on E-33.

Chassis Service and Repair Cautions

The front-fork and rear-suspension construction views show how the assemblies fit together. The chassis chapter includes fork seal and oil-level service, suspension settings, brake bleeding, and final checks. Service on the sealed, nitrogen-charged rear shock is limited to removal and replacement. The manual separately covers gas release before disposal.

Turning the exhaust control valve actuator pulley against its internal gears can damage them. Adjusting the cables with the valve fully open or fully closed can also damage the actuator. Follow the manual’s fuel-pressure, ignition-source, and brake-fluid precautions when servicing those systems.

Valve Clearance and Fuel Pressure Preview

The K6 cold valve-clearance specification is 0.08–0.18 mm on the intake side and 0.18–0.28 mm on the exhaust side. Separate shim charts support adjustment on each side.

The fuel-delivery pressure check specifies approximately 300 kPa with the ignition switched on. The manual gives separate diagnostic checks for pressure below and above specification.
