BMW K 1200 LT 1998–2003 Repair & Parts Manual Set

The repair procedures and exploded parts plates support different stages of workshop work: inspecting an assembly, identifying its components, and matching catalog callouts to part numbers and application dates. Separate ABS II and Integral ABS material helps distinguish the appropriate brake procedures before work begins.

The base repair manual addresses standard motorcycles and genuine BMW accessories. The parts catalog includes final-drive applications that differ from the base manual’s specifications, so assembly and equipment matching remains important. Electrical coverage provides harness layouts and connector locations rather than complete circuit-level wiring diagrams.

Workshop PDF Search and Parts-Catalog Navigation

Text search and illustrated references: The repair and ABS PDFs have searchable text and embedded bookmarks for chapters and individual procedures. The catalog’s parts tables are not searchable, and that file has no embedded bookmarks. Small catalog entries and electrical-location callouts are readable with enlargement.

The ZIP download contains three printable English PDFs totaling 816 pages. Included in that total are eight opening reference pages and 48 largely blank divider pages in the repair manual, five opening reference pages and six largely blank pages in the ABS document, and the parts catalog’s cover.

Engine Overhaul, ABS Service, and Parts Identification

These selected coverage highlights summarize part of the material. Additional topics include cooling-system troubleshooting charts and alarm-system programming, remote-control coding, and alarm-memory interpretation.

• Engine repair: Step-by-step engine removal, crankcase disassembly, cylinder-head service, timing-chain installation, and reassembly procedures, with internal inspection and measurement data.

• Transmission and final drive: Clutch removal and hydraulic service, gearbox overhaul, integral reversing-mechanism service, and rear-drive disassembly and adjustment.

• ABS brakes: ABS II and Integral ABS caliper, disc, sensor, pressure-modulator, brake-line, filling, and bleeding procedures, including BMW MoDiTeC testing.

• Telelever and chassis: Fork and leading-link service, steering-damper replacement, wheel bearings, frame removal, fairing work, and running-gear checks.

• Fuel injection: Motronic control-unit, injector, pressure-regulator, throttle-valve actuator, and throttle-cable work, including cruise-control cable adjustment and fuel-pressure testing.

• Electrical service: Hall-effect transmitters, ignition components, alternator and starter repairs, fuse identification, wiring-harness views, and connector and relay locations.

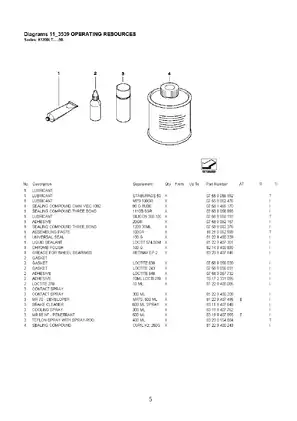

• Parts reference: Exploded plates for mechanical assemblies, electrical equipment, bodywork, luggage, radio, navigation, cruise control, and alarm components, with quantities and application columns.

BMW presents the repair manual as a supplement to workshop personnel’s training; the procedures suit technicians with the corresponding mechanical knowledge and specified workshop equipment.

Internal Engine Work and Cooling Diagnosis

The engine material extends to valve seats, camshafts and bucket tappets, piston and connecting-rod inspection, crankshaft main and big-end bearing measurements, the freewheel, output shaft, and lubrication system. Combined oil/water-pump repair includes seal and shaft work.

The camshaft and valve-clearance sections identify piston-positioning errors that can damage valves and pistons. Special-tool references include camshaft aligning device 11 3 700 and chain-tensioner pin 11 6 740.

Cooling coverage includes radiator and thermostat removal, leak testing, and fault charts for overheating, coolant loss, slow warm-up, and a fan that fails to operate. The engine cutaway and coolant-circuit layout provide assembly and flow references alongside the procedures.

Motronic, Ignition, and Electrical Equipment

The fuel-system chapters identify Motronic MA 2.4, the injection rail, pressure regulator, throttle-valve actuator, and cruise-control Bowden cable. The fuel-pressure test links a low reading to checks of the pump, filter, regulator, and fuel lines.

Electrical repair includes alternator voltage-regulator replacement and starter disassembly with carbon-brush replacement. Left/right harness views and electronics-box connector and relay-position illustrations support component location; they are distinct from circuit schematics.

Gearbox Setup and Chassis Measurement

Gearbox detail includes input, output, and intermediate-shaft setup, selector-drum shimming, selector-shaft adjustment, shaft seals, and the reversing mechanism’s final function check. Tool references include clutch-housing holder 11 2 821 and gearbox mount 23 4 700.

The gearbox sectional drawing and rear-drive cutaway accompany procedures for bevel-pinion and crown-wheel work, shim selection, tooth-contact assessment, and bearing preload. Driveshaft and Paralever swingarm service, suspension measurement, and wheel-track alignment are also covered.

The steering-damper section warns that screws of the wrong length can damage the damper. It identifies the requirement for the manufacturer’s specified fasteners.

Integral ABS Circuits and Equipment-Specific Parts

The ABS document explains the four independent brake-fluid circuits and distinguishes wheel-circuit work from control-circuit work. Reservoir filling, pressure-modulator replacement, self-diagnosis, fault-memory checks, and MoDiTeC bleed tests receive separate treatment.

BMW specifies specially trained personnel for Integral ABS repair and maintenance and an authorized workshop for pressure-modulator work. Brake repairs should follow those qualifications and the manual’s safety procedures.

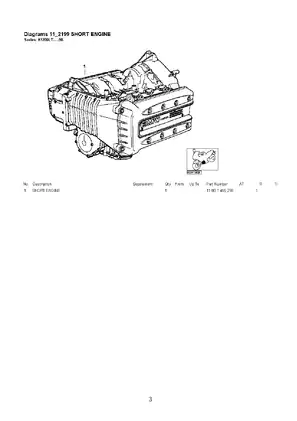

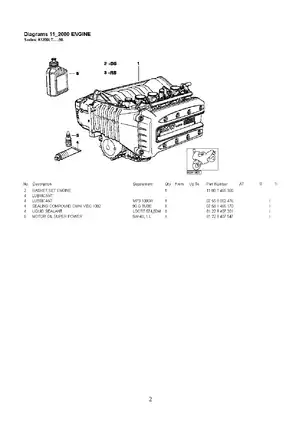

The compiled parts catalog provides assembly identification rather than repair instructions. Opening plates identify engine gasket set 11 00 1 465 300, short engine 11 00 1 465 298, engine block with crank gear 11 00 1 465 299, and engine block with pistons 11 00 1 465 301. Date breaks and equipment-specific application columns distinguish parts that share a general assembly description.

Examples of Valve-Clearance and Fuel-Pressure Data

For the K 1200 LT engine, the valve-clearance section specifies intake clearance of 0.15–0.20 mm and exhaust clearance of 0.25–0.30 mm, measured with the engine no warmer than 35°C.

The fuel-pressure checking procedure specifies 3.5 bar (49.80 psi) with the engine idling. These entries illustrate the measurement conditions supplied alongside the workshop procedures.
