Yamaha WR450F(T) Owner’s Service Manual, 2005–2006 (P/N 5TJ-28199-42)
758 Pages • 1 Printable PDF (EN, FR, DE, ES) • Download
Yamaha Models Covered & Key Technical Specifications
Model: WR450F(T)
Sub-models / Variants: WR450FT (5TJ8: USA; 5TJA: CDN, AUS, NZ), WR450F (5TJ9: EUROPE; 5TJA: ZA)
Model Year: 2005–2006
-
Engine type: Liquid cooled 4-stroke, DOHC
-
Displacement: 449 cm³ (15.8 Imp oz, 15.2 US oz)
-
Bore × stroke: 95.0 × 63.4 mm (3.74 × 2.50 in)
-
Compression ratio: 12.3:1
-
Dry weight: 112.5 kg (248 lb)
-
Starting system: Kick and electric starter
-
Fuel capacity: 8.0 L (1.76 Imp gal, 2.11 US gal)
-
Transmission: 5-speed constant-mesh
Yamaha Manual Features & Selected Content Preview

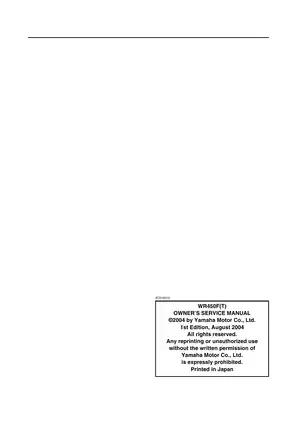

Yamaha’s WR450F(T) Owner’s Service Manual, P/N 5TJ-28199-42, covers operation, maintenance, tuning, and repair for the regional WR450FT and WR450F competition models listed above. This is the first edition, dated August 2004, for the machine Yamaha identifies for closed-course competition use.
Searchable PDF and Linked Contents
Text search and diagram detail: Searchable PDF text is available throughout the technical sections. Chapter bookmarks open the relevant contents pages, whose linked entries lead to individual sections. Small wire-color codes and connector labels in the main wiring diagram require zooming for comfortable reading.

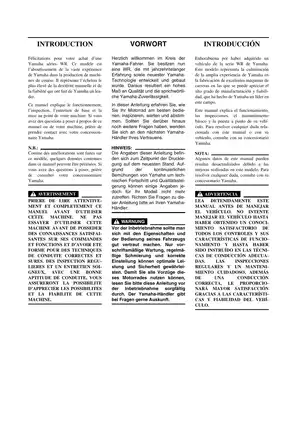

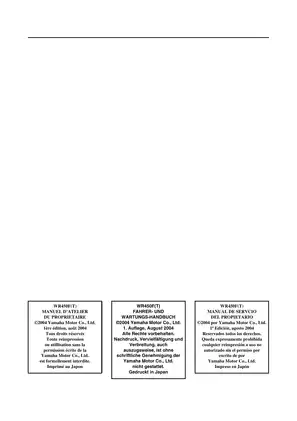

One printable 758-page PDF contains English, French, German, and Spanish text. The total includes the front and back covers, 24 pages of multilingual front matter, and two blank pages.
Engine, Chassis and Electrical Service
The following selected coverage highlights summarize the main workshop areas. Other topics include starting and break-in procedures and U.S.-specific spark-arrester cleaning.
-
Maintenance: Pre-ride checks, race-based service schedules, cold valve-clearance adjustment with shim-selection tables, air-filter service, and oil and coolant changes.
-
Engine and drivetrain: Engine removal and installation, cylinder-head and piston work, wet-clutch repair, crankcase separation, crankshaft installation, and internal transmission inspection.
-
Carburetor and induction: KEIHIN FCR MX39 removal, disassembly, inspection, float setting, accelerator-pump timing, air-induction valve testing, and symptom-based jetting guidance.
-
Brakes and chassis: Wheel-bearing replacement, caliper and master-cylinder disassembly, hydraulic brake bleeding, steering-bearing service, and swingarm/linkage repair.
-
Suspension: Front-fork oil-seal, base-valve and damper-rod service; rear-shock removal, spring and bearing work; and front/rear suspension setup charts.
-
Electrical diagnosis: Wiring diagrams and fault-isolation charts for map-controlled CDI ignition, the electric starter and cut-off circuit, charging, throttle-position sensing, and lighting.
The repair procedures are written as a mechanic’s reference; technicians and experienced owners will need precision measuring equipment and the specified service tools for internal work.
Engine Repair and Dry-Sump Lubrication
Exploded views, job charts, and “extent of removal” notes identify which parts must come off for a particular job, helping plan disassembly without stripping unrelated assemblies.
Step-by-step procedures reach valve-guide replacement and reaming, valve-seat inspection and lapping, and decompression-system checks. Camshaft inspection includes journal measurements and clearance checks; the valve-adjustment section provides separate intake and exhaust shim-selection tables.
Bottom-end work: Balancer and oil-pump service accompany crankcase and crankshaft procedures. Transmission coverage includes gear, shift-cam, and shift-fork inspection and assembly, followed by operational checks. Lubrication-flow diagrams map the pressure-feed and scavenging routes through the dry-sump engine.
The camshaft section warns that turning the crankshaft during cam installation can cause damage or incorrect valve timing. Uneven cam-cap tightening can damage the cylinder head, caps, and camshafts.
Carburetor, Induction and Cooling
Carburetor exploded views identify the accelerator-pump and air-cut-valve components. The tuning chapter relates main jets, pilot jets, needle selection, and leak jets to throttle opening, atmospheric conditions, and running symptoms.
Air-induction testing covers airflow direction and vacuum-operated valve behavior. Cooling coverage includes radiator removal, cap and system pressure tests, and water-pump shaft, seal, and bearing service.
Chassis Repair and Suspension Setup
The chassis reference data identify the semi-double-cradle frame and distinguish standard suspension configurations for USA/Canada, Europe, and Australia/New Zealand/South Africa.
Swingarm procedures extend to relay-arm and connecting-rod bearings, bushes, seals, and installation depths. Suspension tuning adds sprocket choices, fork spring and oil-level setup, rear spring selection, and damping charts tied to track behavior.
Rear-shock limits: Disassembly procedures cover the spring and mounting bearings. Yamaha warns against dismantling the pressurized damper cylinder or nitrogen tank and assigns nitrogen discharge for disposal to Yamaha dealers.
Fork internals are sensitive to contamination and may retain air pressure; Yamaha recommends dealer servicing. Suspension and hydraulic-brake repairs require secure machine support and proper service equipment.
CDI, Starting and Charging Diagnosis
The electrical tables distinguish the U.S. 5TJ-80 CDI unit from the 5TJ-90 unit used outside the USA. The conceptual 3-D Image Map of Ignition Timing explains how engine speed and throttle position affect ignition control.
System-specific flowcharts guide no-spark, starter-motor, no-charge, TPS, and lighting checks rather than leaving the wiring diagram as the only diagnostic aid. Starter-motor coverage includes disassembly, brush and armature inspection, and reassembly; TPS coverage includes replacement and output-voltage adjustment.
Service Tools and Reference Tables
The special-tool list supplies North American and 90890-series numbers. Examples include the crankcase separator YU-1135-A / 90890-01135, fork seal driver YM-01442 / 90890-01442, timing light YM-33277-A / 90890-03141, and vacuum/pressure pump gauge set YB-35956-A / 90890-06756.
Cable-routing diagrams supplement the electrical drawings. Reference tables cover component-specific torque values, capacities, wear and runout limits, inspection clearances, suspension settings, carburetor data, and electrical resistance and output checks.
Preview: Valve and Piston Inspection Data
Cold valve-clearance specifications distinguish the intake setting of 0.10–0.15 mm from the exhaust setting of 0.20–0.25 mm. These values accompany the valve inspection and shim-selection material.
Piston inspection lists a standard piston-to-cylinder clearance of 0.040–0.065 mm and a service limit of 0.10 mm, alongside cylinder-bore and piston-skirt measurement guidance.
