Kymco Downtown 300i 2009 Scooter Service Manual (P/N T300-LEA7-A2)

KYMCO factory service manual for the Downtown 300i, model designation LEA7, First Edition, July 2009 (P/N T300-LEA7-A2). It covers the OHC engine, Keihin throttle-body fuel injection, ECU-controlled systems, and associated chassis repair.

PDF Search, Bookmarks and Circuit Detail

Search and navigation: Text search is partial. The general-information, inspection/adjustment, lubrication, and cylinder/piston sections, plus part of the rear-chassis chapter, are not searchable. Embedded chapter bookmarks use Italian labels. Small circuit labels require zooming, and some ignition-diagram lettering is soft.

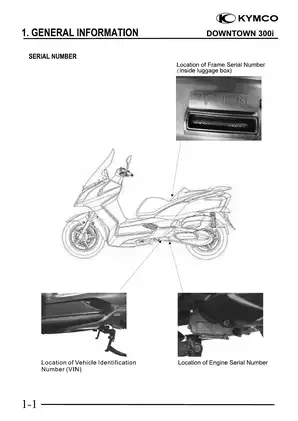

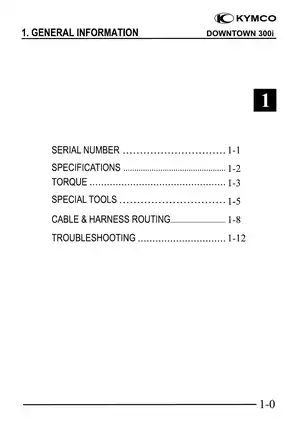

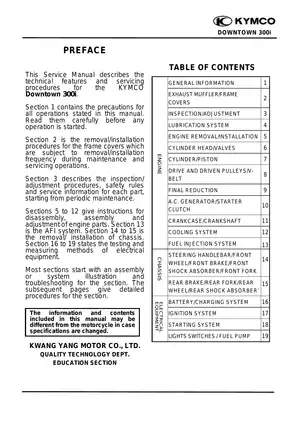

The ZIP download contains one printable English PDF with 223 pages, including the publication page and the preface/contents page. These two introductory pages are already included in the total.

Engine, CVT and Fuel-Injection Service

The following selected coverage highlights are not a complete contents list. Other topics include frame-cover removal and side-stand interlock checks.

• Engine repair: Engine and hanger removal, cylinder-head and valve service, camshaft timing, cylinder and piston work, crankcase separation, and crankshaft inspection.

• CVT and final drive: Drive and driven pulleys, V-belt, weight rollers, dry centrifugal clutch, driven-face bearings, and final-reduction gear disassembly and reassembly.

• Cooling and lubrication: Radiator and cooling-system testing, thermostat and thermosensor checks, water-pump repair, oil-filter service, and oil-pump replacement.

• EFI diagnostics: CELP blink-code diagnosis without a scan tool, DTC tables, KYMCO FI diagnostic-tool operation, live-data analysis, code clearing, and TPS/ISC resets.

• Brakes and chassis: Hydraulic disc-brake service, fluid replacement and bleeding, wheel bearings, front suspension, steering-stem bearings, rear-fork removal, and rear-shock replacement.

• Electrical troubleshooting: Charging, ignition, starting, lighting, switch, sensor, relay, and fuel-pump tests, supported by circuit diagrams, ECU pin information, and component locations.

This manual is suited to trained technicians and technically qualified owners equipped for multimeter, pressure-gauge, bearing-tool, and spring-compressor work. Its maintenance schedule reserves certain jobs for a KYMCO dealer.

Engine Repair and Workshop Specifications

Step-by-step procedures cover major engine disassembly and reassembly, with compression diagnosis, valve-clearance adjustment, cam-chain alignment, piston and cylinder measurement, and crankshaft checks. The cylinder head can be serviced in the frame; cylinder/piston work and crankcase separation require engine removal.

Component-specific torque tables, lubricant specifications, maintenance information, clearances, wear limits, and electrical test data support inspection and assembly. Special-tool references include Flywheel Puller E003, Tappet Adjuster E012, and Bearing Puller E037.

Cooling, Lubrication and Drivetrain Work

Cooling coverage extends to radiator and fan removal, water-pump shaft and mechanical-seal replacement, and cooling-system bleeding after engine installation. The oil pump is serviced by removal and replacement as an assembly; internal pump disassembly is excluded.

CVT instructions include clutch-shoe service and driven-face bearing replacement. Clutch work calls for a spring compressor and Fittings & Nut Wrench E033. Final-reduction procedures include shaft, gear, bearing, and oil-seal inspection.

EFI Fault Tracing and Electrical Tests

The CELP/DTC tables connect fault codes with possible causes and symptoms for the TPS, MAP sensor, water-temperature sensor, tilt switch, oxygen sensor and heater, injector, ignition coil, fuel pump, ISC, and crank-position sensor. Alongside fuel-pressure, injector, fuel cut-off relay, and ECU-continuity tests, these references support fault isolation before components are replaced.

Operating instructions for the KYMCO FI diagnostic tool 3620A-LEB2-E00 cover ECU identification and live-data screens. These show engine speed, battery voltage, throttle position, intake pressure and temperature, atmospheric pressure, injection duration, ignition advance, engine temperature, oxygen-sensor activity, and ISC operation.

Visual references include Cable & Harness Routing, the Injection System Diagram, ECU Pin Function chart, Charging System Layout, Ignition Circuit, and Starting Circuit. Electrical coverage is system-specific; this edition does not contain a separate full-scooter wiring-diagram chapter.

Brake, Steering and Suspension Coverage

The brake chapters cover conventional front and rear hydraulic disc systems, including rear-caliper disassembly and reassembly. ABS diagnosis and ABS hydraulic-unit repair are outside this manual’s coverage.

Steering-bearing work includes race removal, replacement, and adjustment checks, with lock-nut wrenches F00002 and F00023 identified. Rear-suspension coverage includes shock removal, installation, and spring-preload adjustment.

Workshop Cautions

The throttle body is factory-set. Disturbing its painted screws can upset throttle/idle synchronization and cause starting or idle problems. Forcing the crankcase halves apart with a driver can damage their mating surfaces.

Fuel-system work requires pressure relief, cooling-system service must be performed with the engine cool, and brake repair depends on keeping friction surfaces free of oil and grease. Follow the manual’s safety precautions and use appropriate protective equipment before beginning service.

Examples of Injector and Charging Test Values

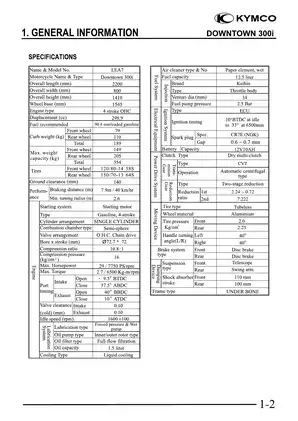

The fuel-injector inspection specifies a standard resistance of 11.7 ± 0.6 Ω at 20°C (68°F), alongside connector and component illustrations.

The charging-system test specifies 14–15 V at 5,000 rpm with the engine at operating temperature, a battery in good condition, and the headlight on high beam. The chapter also provides regulator/rectifier wiring checks.
