Kymco ZX-50 / Scout 50 Scooter Service Manual — 2000

March 2000 KYMCO factory service manual for the ZX 50 and Scout 50, covering model SC10AS with its air-cooled, single-cylinder two-stroke engine. The issue is credited to Kwang Yang Motor Co., Ltd., Overseas Sales Department, Overseas Service Section, and is organized into 17 numbered sections.

PDF Search, Chapter Access, and Diagram Detail

Search and diagram limitations: Body text is searchable, and embedded bookmarks link to the preface and all numbered sections using Italian section labels. Lettering embedded in diagram images is not searchable. Small labels in the full SC10AS wiring diagram remain partly difficult to read even when enlarged; the separate system schematics are easier to follow.

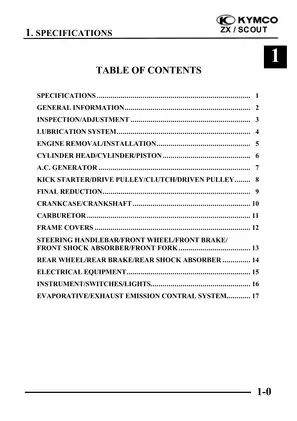

The ZIP download contains one printable English-language PDF with 187 pages, including one preface page, one contents page, and 185 specification and service pages.

Two-Stroke Engine, CVT, and Scooter Systems

The following selected coverage highlights summarize the main workshop areas rather than reproduce the full contents. Other topics include air-cleaner servicing and headlight-aim adjustment.

• Lubrication and top end: Oil-pump removal, inspection, synchronization, and bleeding, plus cylinder-head decarbonizing, piston-ring inspection, and cylinder/piston reassembly.

• Engine and crankshaft: Engine removal and installation, crankcase separation, crankshaft inspection, bearing replacement, oil-seal installation, and crankcase assembly.

• CVT and final drive: Kick-starter repair, drive-belt replacement, drive-pulley and weight-roller inspection, clutch/driven-pulley disassembly, and final-reduction overhaul.

• Fuel and exhaust: Throttle-valve and carburetor service, auto-bystarter testing, reed-valve inspection, fuel-tank removal, catalytic-muffler inspection, and emission-test adjustment.

• Brakes and chassis: Wheel and steering-stem service, hydraulic front-brake repair, rear drum-brake service, and front/rear suspension removal and assembly.

• Electrical diagnosis: SC10AS wiring diagram, charging-, ignition-, and starting-system schematics, circuit-test tables, and electrical fault-isolation charts.

It is suited to professional technicians and experienced scooter mechanics who can use workshop measuring equipment and pullers; internal engine, clutch, suspension, and hydraulic-brake repair assumes established shop skills.

Fault Isolation Before Disassembly

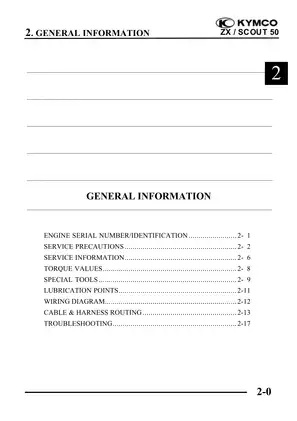

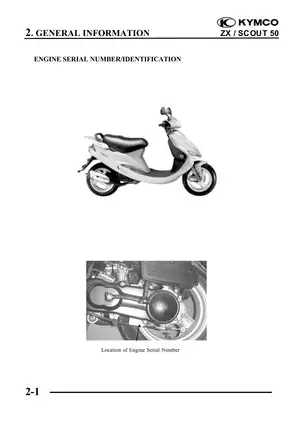

The opening sections establish engine identification, service precautions, cable-and-harness routing, lubrication points, and scheduled inspections. Troubleshooting charts address hard starting, immediate stalling, loss of power, and poor idle or high-speed performance.

Other charts cover CVT faults, steering pull, weak suspension, poor braking, oil-meter and fuel-gauge faults, and starter-motor problems. That diagnostic structure helps separate fuel, ignition, compression, electrical, and drivetrain causes before repair work begins.

Engine Access, Internal Repair, and Oil Delivery

The manual distinguishes jobs that can be handled in the frame from those requiring full engine removal. Cylinder-head, cylinder, and piston service can be performed with the engine installed; crankcase and crankshaft repair requires the engine to come out.

Step-by-step procedures cover internal disassembly and reassembly, supported by crankshaft-runout and connecting-rod inspections, bearing and oil-seal replacement, and post-assembly checks for compression, abnormal noise, and air leakage.

Factory tool references: The special-tool table identifies the E026 crankcase puller, E023 crankcase assembly collar, E024 crankcase assembly tool, and E030 universal bearing puller. It also lists the E001 flywheel puller, E027 clutch spring compressor, and F004 rear shock absorber compressor.

Oil-system boundary: Pump removal, inspection, installation, synchronization, and line bleeding are covered; the manual specifically prohibits disassembling the oil pump itself.

Oil-system cautions explain how incorrect pump-control alignment or trapped air can interrupt lubrication and cause piston seizure or severe engine damage. Piston-installation notes also address ring-to-locating-pin alignment and the risk of installation damage.

Carburetor Checks and Catalytic Exhaust

The carburetor section includes auto-bystarter circuit testing, float-chamber disassembly, float-valve inspection, jet and passage cleaning, and float-level checks. Reassembly instructions retain the recorded screw positions before final idle and air-screw adjustment.

The exhaust section explains the oxidizing catalytic converter and provides muffler removal, joint and packing-collar inspection, and exhaust-emission test and adjustment procedures.

Brake Configuration and Suspension Repair

The manual includes inspection and troubleshooting references for expanding and hydraulic brakes, while the detailed front-brake repair chapter specifically covers the hydraulic disk setup. Its procedures extend to fluid replacement, bleeding, pad and disk inspection, master-cylinder disassembly and assembly, and caliper repair.

Rear-brake coverage addresses the drum, shoes, cam, cable, and wear-indicator alignment. Chassis instructions include frame-cover removal sequences, steering-head race replacement, front-wheel bearing service, front-fork work, left front-shock disassembly, and rear-shock disassembly and assembly.

Electrical Tests and Circuit References

Electrical sections cover charging-output diagnosis, A.C. generator coil tests, regulator/rectifier and resistor checks, ignition-coil and pulser-coil testing, and CDI terminal checks. Starter-relay and starter-motor inspections, fuel-unit and oil-meter tests, and switch-continuity tables support component-level diagnosis.

The separate charging, ignition, and starting schematics show circuit connections. Cable-and-harness routing views and the lubrication-system layout provide additional assembly references.

Because the work involves gasoline, CDI ignition, spring-loaded assemblies, hydraulic brake fluid, and a hot catalytic muffler, follow the factory precautions and complete the specified operational checks before road testing.

Selected Piston-Ring and Ignition Test Specifications

For SC10AS top-end inspection, the piston-ring table lists a standard end gap of 0.10–0.25 mm for both top and second rings, with a 0.40 mm service limit. Component-specific torque tables, lubricant data, wear limits, and clearances accompany the repair procedures.

Ignition-coil testing distinguishes the secondary circuit with and without the plug cap: at 20°C, the listed resistance is 6.99–10.21 kΩ with the cap and 3.24–3.96 kΩ without it.
