Kubota B9200HST-E (2WD) / B9200HST-D (4WD) Tractor Operator's Manual (P/N 66361-6291-2)

This Kubota operator's manual covers the B9200HST-E (2WD) and B9200HST-D (4WD) tractors. The U.S.A. printing is dated May 2002 and carries Code No. 66361-6291-2.

Text search, navigation, and wiring detail: PDF text search and embedded bookmarks are not available. Small wire codes and switch-terminal markings are readable when enlarged.

• V1200-A diesel: Daily cooling, lubrication, and fuel-system checks; fuel-line bleeding, fuel filter bowl cleaning, and engine oil and filter changes.

• Hydrostatic transmission: Fluid and filter replacement, transmission strainer cleaning, and separate front axle differential and gear case oil service for 4WD tractors.

• Clutch, brakes, and steering: Pedal free-travel adjustments, front wheel toe-in, steering wheel play checks, wheel installation, and ballast guidance.

• PTO and auxiliary hydraulics: Rear-PTO and mid-PTO controls, 3-point hitch setup, hydraulic block type outlet connections, and power steering operation when equipped.

• Troubleshooting and electrical reference: Engine, tractor, and battery troubleshooting tables, plus the wiring diagram, wire-color key, and fuse ratings.

• Service schedules and storage: Maintenance check list and engine oil viscosity chart, with fluid capacities, tire pressures, wheel fastener torques, and long-term storage requirements.

Written for tractor owners and operators, the manual explains regular maintenance they can perform and refers major service and repair work to a Kubota dealer.

B9200HST Controls and Implement Operation

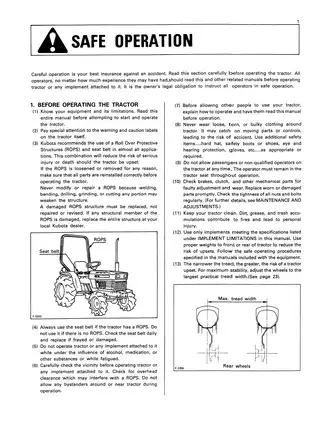

Start-up instructions cover preheating requirements based on ambient temperature and the glow plug indicator. The controls section explains the range selector, speed set device, and differential lock pedal, alongside safe operating practices and roll-over protective structure (ROPS) precautions.

For attachments, the text explains rear-PTO and mid-PTO selection and 3-point hitch positioning. Top link, lifting rod, and check chain adjustments accompany guidance on implement mounting, trailer towing, and the optional swing drawbar.

The hydraulic block type outlet drawing identifies pressure, neutral, and tank connections for external implement valves. Separate guidance addresses connections and operating precautions for optional power steering.

Routine Maintenance and Variant Differences

The maintenance check list separates initial break-in service from recurring oil and filter work. Cooling-system coverage includes radiator flushing, hose checks, radiator screen and oil cooler cleaning, and fan drive belt tension adjustment. The air cleaner section explains element cleaning and replacement.

2WD and 4WD lubrication: The 4WD front axle differential case and right and left gear cases have separate oil-change instructions. The 2WD tractors have king pin and center pin grease points; the clutch release hub and manual steering gear box also receive specific lubrication guidance.

Cartridge-filter replacement instructions flag gasket damage from overtightening. The transmission section explains how metal filings can damage precision hydraulic components and why the suction strainer needs cleaning.

Long-term storage instructions address battery care, coolant preparation, and the risk of the clutch disc rusting when left engaged.

Troubleshooting and Repair Scope

For quick fault isolation, dedicated engine, tractor, and battery charts connect symptoms with likely causes and countermeasures. Topics include hard starting, low power, a 3-point hitch that will not lift or lower, uneven HST operation, and failure to move.

The tractor charts distinguish basic range-selector, parking-brake, and fluid-supply issues from creeping caused by HST linkage adjustment. This helps narrow a movement complaint before planning a repair; linkage and pressure adjustments are referred to the dealer.

Overhaul limits: Coverage centers on operation, routine service, adjustments, and symptom-based troubleshooting. Internal engine and HST overhaul procedures are outside its scope. References to valve clearance and injection timing are not complete repair instructions.

Wiring Diagram and Technical References

The 12V wiring diagram shows the safety start switch, glow plug circuit, regulator, lights, and harness connections, with wire-color codes and main-switch terminal markings. The fuse list supplies circuit protection ratings.

The traveling speeds chart separates results by tire size. The implement limitations table lists attachment dimensions, weights, and loading limits, while the tire inflation pressure chart distinguishes farm and turf tire configurations.

Hydraulic safety guidance addresses pressure release before line disconnection and the risk of fluid injection injuries.

Printable PDF and Included Pages

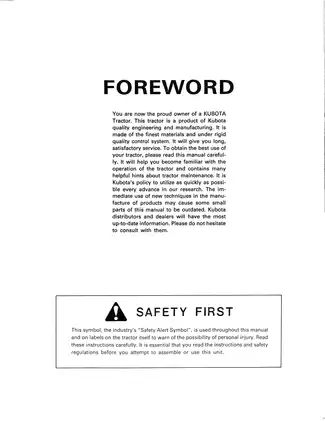

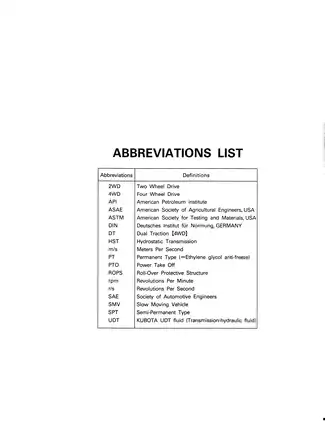

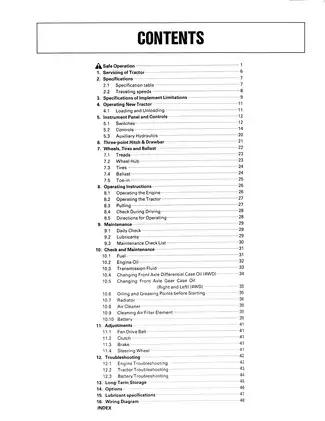

The 56-page printable English PDF contains 48 numbered manual pages plus eight unnumbered pages: front and back covers, an abbreviations list, a foreword, a contents page, an index, one blank page, and a Kubota company-information page. All eight are already included in the total.
