Honda ATC 200X 1986–1987 Service & Repair Manual (P/N 61HB501)

Honda’s factory service manual for the 1986–1987 ATC 200X (P/N 61HB501) covers maintenance, diagnosis, and mechanical repair, with separate information for the original 1986 configuration and the versions labeled “After ’86.”

PDF Search, Bookmarks, and Diagram Detail

Finding service information: Searchable OCR text and embedded chapter bookmarks support navigation, including direct bookmarks to both wiring diagrams. Small wire-color labels require zooming; their OCR recognition is unreliable.

Supplied as one printable, English-language 227-page PDF, including the cover and eight memo pages.

Engine, Chassis, and Electrical Service

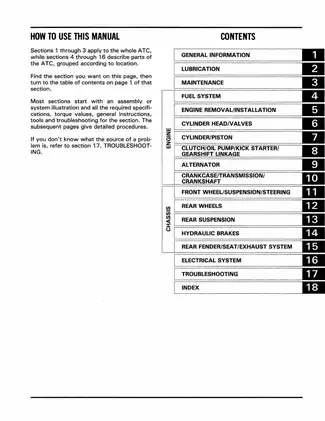

The following selected service topics outline the manual’s coverage. Other examples include spark-arrester maintenance and exhaust-system removal and installation.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, camshaft installation, and cylinder and piston inspection.

• Fuel system: Carburetor disassembly and assembly, float-level inspection, pilot-screw adjustment, high-altitude jetting, and fuel-delivery troubleshooting.

• Clutch and transmission: Clutch inspection, crankcase separation, transmission and crankshaft service, oil-pump checks, kick-starter repair, and gearshift-linkage service.

• Suspension and steering: Telescopic air-fork rebuilding, steering-bearing replacement, rear-axle bearing service, swingarm repairs, and rear-shock inspection and servicing.

• Hydraulic brakes: Fluid replacement and bleeding, pad and disc inspection, front and rear caliper and master-cylinder service, and parking-brake adjustment.

• Electrical diagnosis: Ignition-coil, pulse-generator, alternator, AC-regulator, and switch tests, supported by separate wiring diagrams for the two configurations.

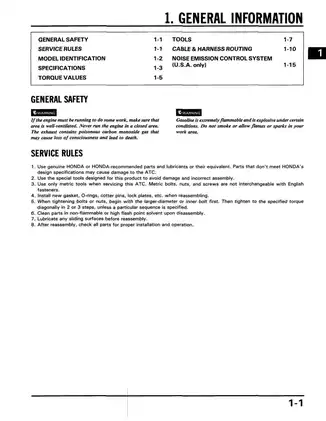

This manual suits mechanically qualified owners and technicians with proper tools; standard workshop procedures are assumed, and Honda recommends dealer service for wheel and steering-head-bearing maintenance.

Engine Inspection and In-Frame Service

Factory clearance limits support workshop decisions about component reuse and replacement. The engine sections distinguish work that can be performed in the frame from crankshaft and transmission repairs requiring crankcase separation.

Cylinder-head coverage extends to rocker-arm and camshaft inspection, valve-guide measurements, seat-contact evaluation, and cam-chain timing. Valve-seat refacing illustrations show contact-position differences, while the lubrication diagram traces oil flow through the engine.

The manual also provides maintenance schedules, compression testing, valve-clearance and decompressor adjustment, and component-specific engine-mounting and frame-fastener torque references.

Carburetor and Production Differences

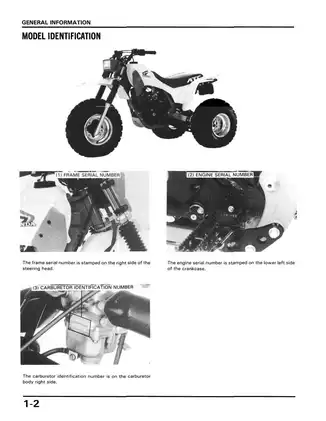

The fuel-system information distinguishes PD64A carburetor versions from the later PD3AA configuration, with separate main-jet and needle-position data. This makes it possible to match the settings to the installed carburetor rather than treating every production version alike.

An exploded carburetor assembly view accompanies the overhaul procedures. The maintenance section also distinguishes the original air-cleaner arrangement from the later foam-and-paper assembly.

Suspension, Axle, and Brake Service

The front-fork section includes an exploded assembly view, bushing and seal inspection, and configuration-specific oil-capacity and oil-level information. Steering and rear-axle sections cover bearing replacement and assembly checks.

Rear-shock limits: Coverage includes spring removal, damper-force inspection, reservoir and hose fluid service, bleeding, and nitrogen charging. The manual explicitly prohibits disassembling the damper unit. Rear-shock work involves pressurized nitrogen, while front-fork disassembly involves stored spring force.

The oil-filter rotor lock nut and rear-axle lock nuts have left-hand threads; the service notes identify this distinction to avoid thread damage. Chain-care cautions also explain how high-pressure cleaning can damage the drive-chain O-rings.

Fault Tracing and Wiring References

The troubleshooting charts address hard starting, loss of power, poor running at different engine speeds, and handling problems. They connect symptoms with fuel, ignition, compression, and chassis checks.

Electrical procedures distinguish component faults from wiring faults through resistance and continuity tests. Separate wiring diagrams show the original layout and the later arrangement with an ignition switch, alongside switch-continuity charts and cable-routing references.

Examples of Head, Rotor, and Axle Torque Data

The staged cylinder-head tightening procedure specifies 28–30 N·m for the 8 mm nuts. The oil-filter rotor section gives 50–60 N·m for its left-hand-threaded lock nut.

The rear-axle inner lock nut is specified at 100–120 N·m applied torque. The axle section explains the leverage effect of its lock-nut wrench when used with a 20-inch beam-type torque wrench, distinguishing wrench readings from applied torque.
