Yamaha V-Star XVS650 Supplementary Service Manual 1997–2008 (P/N LIT-11616-11-16, LIT-11616-14–31)

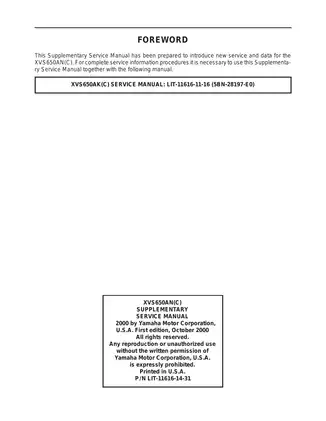

• 520-page PDF set: Four files contain six Yamaha factory publications—a 36-page XVS650AN(C) supplement, 323-page XVS650AK(C) base service manual, and 33-page XVS650K(C) supplement in the 392-page combined file, plus separate 40-page XVS650A ’98, 47-page XVS650 2001, and 41-page XVS650A 2001 supplements. Printed identifiers are base-manual P/N LIT-11616-11-16 with Yamaha code 5BN-28197-E0, XVS650K(C) supplement P/N LIT-11616-11-21, and XVS650AN(C) supplement P/N LIT-11616-14-31, first edition October 2000.
• Identified model codes include XVS650AK(C) 5BN1/5BN2/5BN3, XVS650K(C) 5FB1/5FB2/5FB3, XVS650AN(C) 5BNT/5BNU, XVS650A ’98 5BN4/5BN5/5BN8/5BN9, XVS650 2001 4VRD/4XRD, and XVS650A 2001 5BNV/5BNW.
• Engine repair sections cover removal, cylinder heads, rocker arms and camshafts, valves and springs, cylinders and pistons, clutch and shift shaft, oil pump, A.C. magneto and starter clutch, crankcase, crankshaft and connecting rods, transmission, and middle-gear service.
• Carburetion and routine service content includes carburetor synchronization, fuel-level adjustment, throttle-position-sensor inspection, fuel-pump checks, valve-clearance work, compression testing, ignition-timing checks, and model-specific maintenance schedules. Air-induction and air-cutoff-valve inspection is also covered, including the XVS650A ’98 AIS section specifically marked for D/A configurations.
• Chassis procedures address front and rear wheels, static balancing, disc and drum brakes, master-cylinder and caliper repair, hydraulic bleeding, front-fork disassembly and assembly, steering-head service, rear shock and swingarm inspection, and shaft-drive backlash and shim setup.
• Electrical diagnosis is organized by system, with switch tests, T.C.I. ignition, electric starting, starter motor, charging, lighting, signals, fuel pump, carburetor heater, and self-diagnosis sections supported by circuit diagrams, troubleshooting charts, cable-routing views, and full wiring diagrams.

Document Scope and Model Matching

The combined US file is internally matched: Yamaha specifies the XVS650AK(C) base manual for both the included XVS650K(C) and XVS650AN(C) supplements. This gives the US configurations a full base repair manual together with the factory changes, specifications, routing information, and procedures introduced by the later publications.

The international files are supplementary updates rather than stand-alone repair manuals. Yamaha directs the XVS650A ’98 supplement to be used with XVS650 ’97 Service Manual 4VR-AE1. The XVS650 2001 supplement also calls for 4VR-AE2, while the XVS650A 2001 supplement calls for 5BN4-AE1. The 5BN4-AE1 supplement is included in this set; 4VR-AE1 and 4VR-AE2 are not. Coverage should therefore be matched to the motorcycle’s model label and required publication chain rather than assumed for every XVS650 from 1997 through 2008.

Factory Repair Depth and Technical References

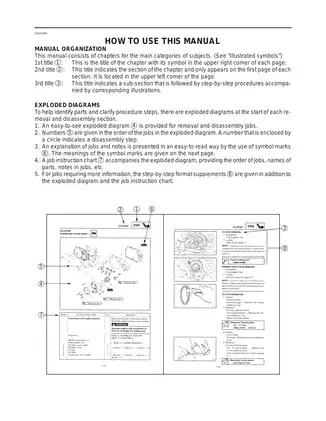

The base manual uses exploded views, numbered job instruction charts, inspection criteria, and reassembly notes for major repair operations. Drivetrain coverage extends through middle-gear inspection and backlash adjustment, shaft-drive troubleshooting, final-gear backlash measurement, roller-bearing removal and reassembly, ring-gear positioning, and shim and thrust-washer selection.

Factory tool callouts include the YM-01231/90890-01231 final-gear backlash band, YM-01312-A/90890-01312 fuel-level gauge, YU-08030-A/90890-03094 vacuum gauge, YM-33222/90890-04080 middle-gear backlash tool, and YM-04050/90890-04050 bearing-retainer wrench. These references are tied to the applicable inspection, adjustment, removal, and assembly procedures rather than presented as a generic tool list.

Electrical repair is supported by the XVS650AK(C) full wiring diagram and separate 2001 XVS650, XVS650A, and XVS650AN(C) wiring diagrams. System-level examples include the ignition circuit diagram, electric-starting circuit and operating logic, charging circuit, fuel-pump circuit operation, carburetor-heater circuit, and air-induction system diagrams. Related tables provide component-specific torque specifications, fluid-capacity data, wear limits, clearance and adjustment specifications, and electrical test values without reducing the manual to a list of isolated numbers.

The factory cautions flag several easy ways to damage parts. Connecting-rod bearings must remain with their original rods to preserve the established oil clearance, and the final-drive bearing retainer uses a left-hand thread. The middle-gear section also warns that overtightening the bearing housing can close up backlash and damage the gears.

Brake hydraulics, fork springs, engine removal, and the gas-charged rear shock require the motorcycle to be securely supported and the manual’s component-specific safety precautions followed before repair work begins.
