Honda Models Covered & Key Technical Specifications

Models: TRX250R FourTrax 250R

Model Years: 1986–1989 (1986, 1987, 1988, 1989)


  • Engine type: Liquid cooled 2-stroke single

  • Displacement: 246 cc

  • Transmission type: 6-speed, constant mesh

  • Fuel system: Piston valve carburetor

  • Ignition system: CDI

  • Fuel capacity: 10.0 liters (2.64 U.S. gal.)

  • Transmission oil capacity: 0.6 liters (0.63 U.S. qt.) after draining; 0.7 liters (0.74 U.S. qt.) at disassembly

  • Tire pressure (front): 4.0 psi (27.5 kPa)

  • Tire pressure (rear): 1986–1987: 2.9 psi (20.0 kPa); 1988–1989: 3.3 psi (22.5 kPa)

Honda Manual Features & Selected Content Preview

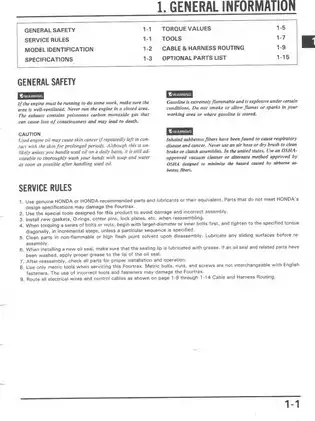

Honda factory service manual P/N 61HB903, September 1988 edition, covering the 1986–1989 Honda TRX250R FourTrax 250R. It covers maintenance, fault diagnosis, and repair, with production-year differences identified throughout the relevant sections.

PDF Search, Chapter Bookmarks, and Page Count

Search and diagram detail: Text search is available in later sections, but PDF pages 1–126 have no searchable text. Embedded bookmarks link to chapter openings and the index. Small wire-color labels require zooming, especially in the after-1986 wiring diagram.

The ZIP download contains one printable English PDF with 224 pages, including the cover, two introductory pages, one blank page, and six memo pages.


Engine Overhaul, Chassis Service, and Electrical Diagnosis

The following selected service topics show the manual’s repair scope. Other included subjects include exhaust-chamber removal and spark-arrester maintenance.

  • Engine repair: Engine removal and installation, cylinder-head and piston inspection, crankcase separation, transmission service, crankshaft inspection, and bearing replacement.

  • Clutch and starting mechanism: Clutch and lifter service, balancer inspection and alignment, gearshift-linkage repair, and kick-starter disassembly and reassembly.

  • Fuel and cooling systems: Carburetor disassembly, air-screw and altitude/temperature adjustments, reed-valve inspection, radiator testing, coolant replacement, and water-pump mechanical-seal repair.

  • Wheels and steering: Front and rear hub-bearing replacement, tire removal and repair, rear-axle service, tie-rod adjustment, steering-shaft inspection, and front-arm service.

  • Suspension and brakes: Front-shock service, rear-shock disassembly and charging, swingarm and linkage repair, hydraulic bleeding, caliper overhaul, and master-cylinder repair.

  • Electrical diagnosis: CDI troubleshooting, ignition-coil, exciter-coil, pulse-generator, lighting-coil, and AC-regulator tests, switch continuity checks, and production-specific wiring diagrams.

The manual is best suited to professional technicians and experienced owners familiar with precision measurement and specialized shop equipment; Honda does not explain standard workshop procedures or general service principles in detail.

Production-Year Differences and Component Matching

Year-specific tables distinguish transmission gearing, final-drive components, CDI timing, alternator and lighting equipment, wheel hubs, steering geometry, suspension, and brake-system changes. These distinctions help match service data and replacement components to the vehicle before work begins.

The transmission section specifically identifies the 1986 and later C6 gears as not interchangeable. Clutch-lifter illustrations also separate the early arrangements from the later lifter, needle-bearing, and washer assembly.

Engine and Drivetrain Repair Depth

Top-end inspection and repair can be performed with the engine installed. The clutch, balancer, gearshift linkage, kick starter, alternator, and balancer-bearing holder can also be serviced in the frame. Transmission or crankshaft repair requires engine removal and crankcase separation.

Step-by-step procedures carry those internal repairs through shaft and gear assembly, bearing replacement, oil-seal installation, and crankcase reassembly. Cylinder and piston selection uses matching A/B size codes, supported by inspection limits for the bore, piston, rings, pin, and connecting-rod small end.

Transmission and crankshaft exploded views accompany checks for shift-fork wear, gear-bushing clearance, shaft wear, crankshaft runout, and connecting-rod clearance. Assembly notes identify shift-fork orientation and washer alignment.

Tool references include crankcase puller 07937-4300000 in the transmission chapter and driveshaft disassembly/assembly tool 07964-MB00200. Honda warns that prying the crankcase halves apart can damage their mating surfaces.

Carburetor Adjustment and Cooling-System Repair

Carburetor identification separates PJ05A, PJ07A, PJ07B, and PJ07C configurations for 1986, 1987, 1988, and 1989 respectively. Adjustment tables cover the corresponding jets, needle positions, and air-screw settings, including altitude and temperature changes.

Carburetor circuit illustrations explain how the metering systems overlap across throttle openings. Reed-valve inspection distinguishes a serviceable assembly from one requiring replacement; fuel-tank, strainer, and air-cleaner procedures are also included.

Cooling-system work includes radiator-cap pressure testing, leak checks, radiator removal, coolant replacement and air bleeding, and water-pump shaft, bearing, oil-seal, and mechanical-seal service. The tool listings identify mechanical-seal driver attachment 07945-4150400.

Chassis, Suspension, and Hydraulic Brakes

Front-hub and swingarm procedures distinguish early and after-1987 bearing arrangements. Steering and suspension layouts, rear-axle assembly views, and linkage illustrations support inspection and reassembly. Rear-shock coverage extends to reservoir service, oil filling, air bleeding, and nitrogen charging.

The rear-shock spring settings provide a service baseline. Detailed preload and damping adjustment for rider weight, riding conditions, and skill level is referred to the Owner’s Manual.

Brake coverage includes pad and disc inspection, front and rear caliper overhaul, master-cylinder repair, rear-brake-pedal service, and the parking-brake mechanism.

Separate tire-removal procedures address U.S. and non-U.S. equipment. Honda warns that an incorrect bead-breaker blade can damage the tire or rim, while unsuitable mounting lubricants can allow the tire to shift on the rim.

Work involving premixed fuel, hot pressurized coolant, an elevated chassis, hydraulic brakes, or the nitrogen-charged rear shock requires the safeguards and equipment identified in the manual.

Ignition Tests and Symptom-Based Troubleshooting

Separate 1986 and after-1986 wiring diagrams accompany cable, hose, and harness-routing drawings. Electrical checks cover connector condition, component resistance, regulated voltage, and switch continuity. CDI ignition timing is checked rather than adjusted.

Troubleshooting charts address hard starting, loss of power, poor low- or high-speed performance, lean and rich mixtures, clutch slip, shifting faults, transmission noise, overheating, coolant leaks, steering problems, brake faults, weak or missing spark, and lighting failures.

Supporting references include component-specific torque tables, fluid capacities, wear limits, suspension settings, maintenance schedules, and a competition-use replacement-parts schedule.

Examples of Brake Limits and Ignition Test Data

The brake inspection pages specify a thickness service limit of 3.0 mm (0.12 in) for both front and rear discs. The disc-warpage service limit is 0.30 mm (0.012 in).

For ignition-coil inspection, the primary-winding resistance specification is 0.1–0.3 Ω at 20°C (68°F), with separate checks for the secondary winding and spark-plug cap.
