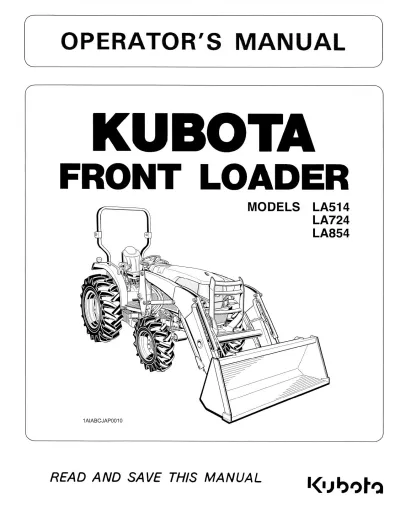

Kubota LA514, LA724, LA854 Front Loader Operator's Manual (P/N 7J275-6911-1)

This 2010 Kubota operator's manual, Code No. 7J275-6911-1, covers the 2000s-era LA514, LA724, and LA854 front loaders and their compatible L-series tractors.

Text search and navigation: PDF text search and embedded bookmarks are not available. Navigation relies on the printed contents pages and the PDF viewer's page controls.

• Loader operation: Bucket filling, lifting and carrying loads, dumping, float control, peeling, scraping, backfilling, valve lock operation, and bucket level indicator adjustment.

• Hydraulic controls: Test operation, air removal, dual remote hydraulic control connections, two-stage bucket dumping, and optional front remote hydraulic control procedures.

• Loader removal and reinstallation: Illustrated procedures covering support stands, mounting pins, frame engagement, hydraulic quick couplers, and preparation for storage.

• Attachments and quick hitch: Implement attachment and detachment, latch maintenance, pallet fork assembly, and specifications for buckets, the bale spear, and pallet forks.

• Routine maintenance: Grease-point and control linkage lubrication, daily hose and fastener inspections, mounting-hardware retightening, and scheduled main frame bolt checks.

• Specification references: Loader dimensions, boom and bucket cylinder data, bucket weights, lift capacity and rollback force charts, and American and metric hardware torque tables.

This manual is suited to loader owners and operators handling normal operation and routine upkeep; Kubota directs major repair work to its dealers.

Tractor Setup and Loader Operation

Pre-operation checks cover transmission fluid level, tire inflation, front and rear tread settings, and rear ballast. Liquid tire ballast tables distinguish tire sizes and calcium chloride mixtures for different freezing conditions.

Dimensional specification drawings and loader terminology views identify the loader geometry and components. Performance tables distinguish capacity at the bucket pivot pin from capacity farther forward and at different lifting heights, helping you compare ratings at the same load position.

Hydraulic Controls and Attachment Connections

The hydraulic hose connection views identify coupler colors, lever directions, and cylinder port assignments. They provide a reference for checking connections when boom or bucket movement does not match the control label.

The dual remote valve section warns that connecting a hydraulic motor to the regenerative bucket circuit can damage the motor's seals.

Optional front remote coverage explains the main and activation switches, hose routing, coupler connection and disconnection, and pressure-release procedures. The valve lock does not disable the switch-operated third-function hydraulics.

Quick Hitch and Loader Removal

Quick-hitch procedures cover seating the implement and checking latch engagement, with separate instructions for pallet fork assembly. Bucket specification tables distinguish rigid and quick-attach versions, alongside bale spear dimensions and loader-specific fork ratings.

The loader removal procedure requires an approved bucket to remain attached. Illustrated removal and reinstallation sections explain stand positioning, side-frame engagement, mounting pins, and hose reconnection; storage guidance covers coupler protection and exposed cylinder rods.

Maintenance Data and Repair Scope

Scheduled maintenance distinguishes initial mounting-hardware retightening from recurring main frame bolt checks. General torque tables separate American UNC/UNF fasteners by grade and provide specifications for metric cap screws.

Hydraulic fluid selection and replacement schedules are referred to the tractor operator's manual. This publication does not contain internal cylinder or control-valve repair procedures, hydraulic pressure testing, or tractor engine and transmission repair chapters.

Always ensure the tractor is on stable ground and hydraulic pressure is safely relieved before inspecting lines or fittings.

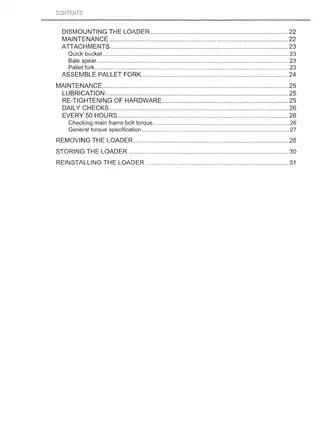

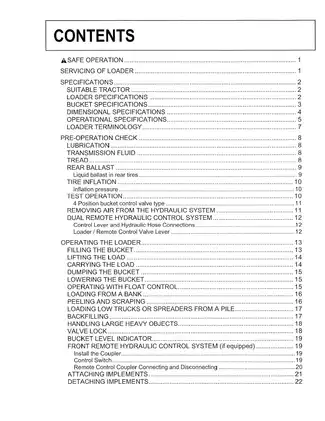

PDF Contents and Included Pages

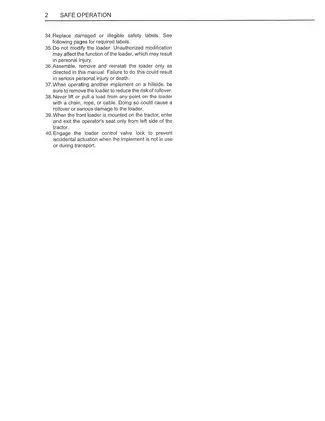

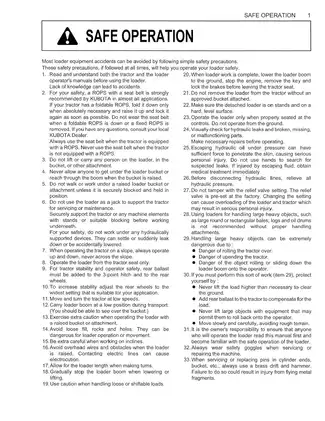

One printable, English-language 39-page PDF contains 31 main-text pages, four Safe Operation pages, two contents pages, and two cover pages. All eight pages of safety information, contents, and covers are already included in the total.
