1997 Mercury Marine 30/40 HP 2-Cylinder Outboard Service Manual - Marathon & Sea Pro (P/N 90-826148R2)

This Mercury Marine service manual covers the 1997 30/40 HP 2-cylinder outboards, including 30/40 Marathon and 30/40 Sea Pro models with manual or electric start configurations. Publication 90-826148R2, March 1997 edition.

Text search, bookmarks and wiring detail: Service text is searchable, and embedded bookmarks cover chapters and individual procedures. Some labels within wiring diagrams are not searchable. Small wiring labels require zooming; a few relay terminal numbers remain difficult to read.

• Powerhead repair: Removal, crankshaft and piston disassembly, cylinder inspection and honing, reed block service, reassembly and installation.

• Ignition and starting: TPM/CDM diagnosis, stator and trigger testing, charging-system troubleshooting, electric starter overhaul and wiring diagrams for different serial ranges.

• Fuel and oil injection: Fuel pump service, WME carburetor adjustments, high-altitude rejetting, enrichener testing, oil pump synchronization, bleeding and flow testing.

• Lower unit: Gear housing teardown, gear and clutch inspection, bearing and seal replacement, water pump impeller service and pressure testing.

• Trim and mid-section: Power trim hydraulic and electrical troubleshooting, disassembly and bleeding, gas-assist manual tilt replacement, clamp/swivel brackets and drive shaft housing service.

• Controls and manual starter: Shift and throttle cable adjustment, tiller handle linkage, rewind starter repair, spring tension adjustment and starter interlock setup.

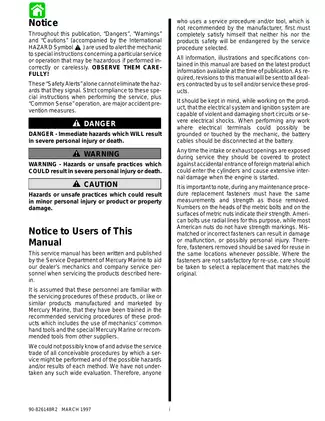

Written for Mercury dealer mechanics and company service personnel already trained in outboard servicing and the use of common and specialized shop tools.

Ignition Variants and Electrical Diagnosis

The ignition sections distinguish electronic spark advance with a Timing Protection Module (TPM) through U.S. S/N 0G589999 from mechanical spark advance at 0G590000 and above. Electrical component layouts also identify the corresponding Belgian break at 9973100.

Wiring diagrams separate engines through 0G380074, 0G380075-0G589999, and 0G590000-up. These distinctions help match the trigger, flywheel and diagnostic procedure to the engine before electrical parts are selected.

Testing covers Direct Voltage Adapter (DVA) checks, trigger output and separate resistance tables for Capacitor Discharge Modules 822779 and 827509. The tool list identifies the Volt/Ohm/DVA Meter 91-99750.

Charging tests cover 9-, 14-, 16- and 18-amp systems, with regulator/rectifier checks. The Starting Circuit Troubleshooting Flow Chart links starter faults to numbered test points; separate diagrams cover Commander controls, gauges and lanyard stop switches.

WME Carburetors, Fuel Delivery and Oil Injection

Carburetor identification tables link WME versions to horsepower and starting configuration. The Jet Orifice Size Chart and high-altitude jetting chart accompany idle-mixture and float adjustments.

Fuel-system troubleshooting addresses air bubbles, restricted anti-siphon valves, low pump pressure, flooding and lean running. Separate fuel-flow drawings show manual-start, electric-start and electric-start tiller arrangements.

Oil injection coverage extends to the variable-ratio pump drive, low-oil warning components and carburetor/oil pump synchronization, with separate flow diagrams on either side of the 0G590000 serial break.

Powerhead Inspection and Reassembly

The powerhead section provides crankshaft runout limits, piston and bore inspection data, bearing checks, thermostat testing and bleed-hose routing. Torque Sequence views show intake manifold and crankcase cover bolt patterns.

Special-tool references include Flywheel Puller 91-73687A1 and Piston Pin Tool 91-74607A2. The repair instructions explain why mismatched or reversed connecting rod caps can cause bearing failure.

Gearcase, Power Trim and Installation

The 2.0:1 gearcase has no gear shims or adjustable backlash. Its reassembly section explains bearing-race seating and backlash checks, with lubricant-capacity data and propeller shaft, clutch dog and bearing carrier inspection.

A specific assembly caution identifies how a bottomed-out shift shaft can bend the clutch dog's cross pin when the carrier bolts are tightened.

The Power Trim Flow Diagrams explain trim, tilt and shock functions. The Hydraulic System Troubleshooting Flow Chart addresses leak-down and failure to hold position under reverse thrust, followed by valve, memory piston and seal service.

Service limits: The power trim hydraulic pump and electric motor are replacement assemblies, not internally rebuildable units. Gas-assist manual tilt coverage is limited to adjustment, removal and replacement of the sealed assist unit.

Outboard installation sections cover steering connections, control cable setup and propeller installation, supported by the Propeller Information Charts. Follow the factory warnings for ignition voltage, fuel handling and supporting the outboard during powerhead or trim work.

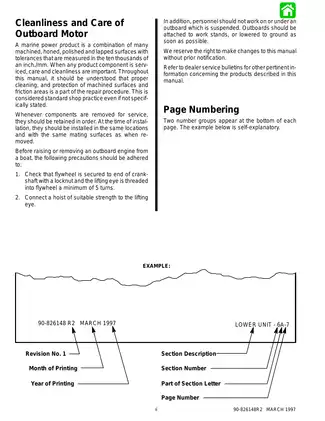

Printable PDF and Included Pages

One printable, English-language 333-page PDF: 301 pages of service material and section contents, 19 section dividers, nine Notes pages, one cover and three preliminary pages. All are included in the total.
