Mercury/Mariner 1998 Outboard Service Manual – 20 JET, 20, 25, 25 Marathon & 25 SeaPro (P/N 90-826883R2)
337 Pages • 1 Printable PDF (English) • Download
Mercury Models Covered & Key Technical Specifications
Models: Mercury/Mariner 20 JET, 20, 25, 25 MARATHON, 25 SEAPRO
Sub-models / Variants: Short Shaft, Long Shaft, Electric Start, Remote Control, Manual Start, Tiller Handle, Side Shift, Work Model (20/25 manual-start RED-stator wiring); additional 15XD references in selected specification and service sections
Model Years: 1994–1999 (1994, 1995, 1996, 1997, 1998, 1999)
Serial Numbers: United States: 0G044027 and Above, Belgium: 09807909 and Above
-
Engine: Two-cylinder, two-cycle
-
Displacement: 24.4 cu. in. (400 cc)
-
Horsepower: 20 HP (14.9 kW) to 25 HP (18.7 kW)
-
Gear Ratio: 2.25:1 (20/25 propeller-drive models)
-
Ignition Type: Capacitor Discharge Ignition (CDI)
-
Spark Plug: NGK BP8H-N-10
-
Spark Plug Gap: 0.040 in. (1.0 mm)
-
Fuel/Oil Ratio: 50:1
-
Charging System Output: 4 Amps (BLACK stator, 2-magnet flywheel) or 6 Amps (RED stator, 4-magnet flywheel) @ 6000 RPM
-
Battery Rating: 465 MCA / 350 CCA
Mercury Manual Features & Selected Content Preview
Mercury Marine’s June 1998 service manual (P/N 90-826883R2) covers the 1994–1999 Mercury/Mariner 20 JET, 20, 25, 25 MARATHON, and 25 SEAPRO two-stroke outboards within the serial ranges listed above.
Search, Bookmarks, and Wiring Diagrams
Text search and wiring detail: Search the manual text or use the embedded bookmarks to jump to sections and procedures. Some wire labels appear only inside the drawings. Zoom in to read small wire-color codes and connector pin numbers.

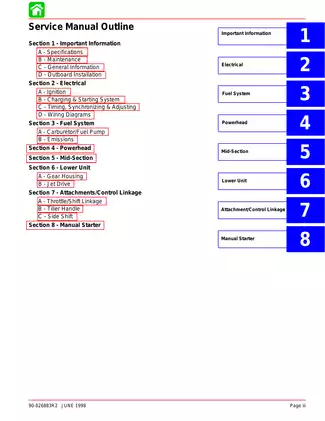

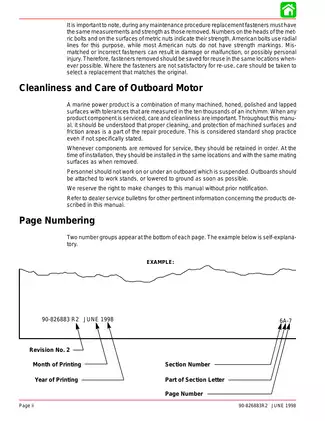

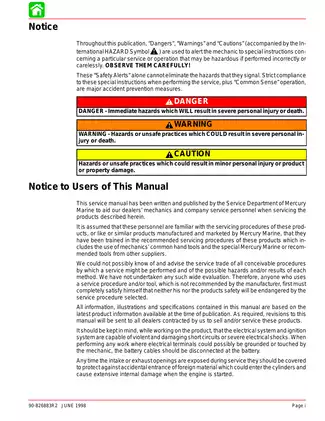

The download is one printable, English-language 337-page PDF, including the original cover, three introductory pages, and one Notes page.
Powerhead, Ignition, and Drive System Service
The topics below are selected examples. The manual also covers steering link rod installation and inspection after complete submersion.
- Powerhead repair: Step-by-step procedures for powerhead removal, disassembly, and reassembly, with crankshaft and piston inspection, bearing and seal replacement, and reed-block checks.
- Fuel system: Carburetor removal and adjustment, fuel-pump rebuilding, primer-system diagnosis, float-level checks, and high-altitude jet charts.
- Ignition and electrical: Electronic and mechanical spark-advance diagnostics, BLACK- and RED-stator tests, charging-system checks, starter-motor repair, and wiring diagrams.
- Lower unit and jet drive: Gearcase disassembly, propeller-shaft and bearing-carrier service, jet-pump repair, liner replacement, and impeller-clearance adjustment.
- Cooling and maintenance: Water-pump impeller replacement, thermostat testing, cooling-system flushing, fuel-line inspection, corrosion-anode replacement, and storage preparation.
- Controls and manual starter: Tiller-handle and side-shift servicing, throttle and shift linkage adjustment, neutral-interlock checks, recoil-starter overhaul, and starter-rope replacement.
Written for dealer mechanics and Mercury Marine service personnel, this manual assumes familiarity with outboard servicing and the specified standard and special tools.
Powerhead Repair and Cylinder-Bore Differences
Factory torque data, fluid capacities, wear limits, and adjustment specifications support inspection through reassembly and test running. Illustrated torque sequences cover the exhaust, crankcase, and cylinder-block covers.
Chrome and Mercosil bores: U.S. serial numbers through 0G202749 have chrome bores, which cannot be rebored. Starting at 0G202750, Mercosil blocks have an oversize repair provision.
Piston installation drawings show the orientation that keeps rings from catching in the ports. The procedures specify Piston Pin Tool 91-76160A2 and show bleed-hose routing. The reed-block inspection calls for replacing the entire assembly if an individual component is damaged.
Ignition, Charging, and Starting Diagnostics
Serial-specific stator, switch-box, and linkage tables help identify the installed ignition system and select the right tests before ordering parts. Mechanical advance begins at U.S. serial 0G438000 for 20/25 models and 0G760300 for 20 JET models. For Belgian 20/25 models, the cutoff is 09927000.
Diagnostic references include the electronic spark advance graph, starting circuit troubleshooting flowchart, rectifier tests, and Commander remote-control wiring diagrams. Separate peak-voltage and resistance tables cover the ignition configurations and identify Multimeter/DVA Tester 91-99750A1. Timing and synchronization procedures distinguish tiller-handle, side-shift, and remote-control arrangements.
Carburetor, Fuel Pump, and Cooling Service
WMC carburetor tables distinguish standard and SeaPro/Marathon configurations. Troubleshooting charts address hard starting, flooding, surging, poor acceleration, and rich or lean running. The primer section connects starting and idle symptoms to the diaphragm, check ball, and passages.
Thermostat opening tests and water-pump assembly views support cooling-system service. The jet-drive pump section warns that reversing the established vane set of a reused impeller can break the vanes. Maintenance schedules cover freshwater flushing and more frequent anode checks after saltwater use.
Propeller Gearcase and Jet-Pump Variants
Gearcase service covers gears, the clutch, shafts, bearings, seals, and leak testing. Coverage for the 9.9/15 Bigfoot four-stroke in this manual is limited to the lower unit, with a separate 2.42:1 gearcase specification table.
Jet-pump and linkage drawings separate units through serial 0G157845 from those starting at 0G157846. The jet-drive section also covers reverse-gate adjustment, cavitation checks, worn impellers, and small- and large-diameter single-bearing assemblies.
Midsection, Controls, and Recoil Starter
Exploded views and torque tables identify clamp-bracket, swivel-bracket, and driveshaft-housing components. The control sections show cable routing, throttle cams, and horizontal shift shafts. Recoil-starter procedures cover spring inspection and reassembly.
Marine fuel and electrical work carries fire and shock risks. Follow the manual’s precautions and consult a certified marine technician before major service work.
Selected Piston and Gearcase Specifications
For the 20, 25, and 20 JET powerheads, the piston inspection section lists a piston-to-bore clearance of 0.003–0.004 in. (0.076–0.101 mm). The cylinder inspection section specifies a 0.030 in. (0.762 mm) oversize rebore for Mercosil blocks.

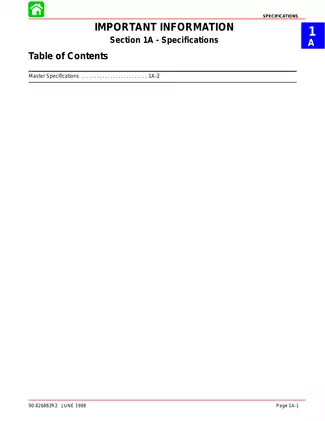

For the 20/25 propeller-drive gearcase, the master specifications list a lubricant capacity of 8.8 fl. oz. (260 mL).
