Aprilia ETV 1000 Caponord & Rally 2001–2007 Service Manual Set (P/N 8140776)

1,124 Pages • ZIP Download: 7 Printable PDFs • 128.12 MB

5.0starstarstarstarstar(1)
$18.45 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Aprilia Models Covered & Key Technical Specifications

Models: ETV 1000 Caponord (V990 engine; 6-speed mechanical transmission)

Sub-models / Variants: Rally, ABS

Model Years: 2001–2007 (2001, 2002, 2003, 2004, 2005, 2006, 2007)


  • Fuel tank capacity: 25 liters (approx. 6.6 US gal), including reserve

  • Fuel reserve: 4 liters (+/- 1 liter / approx. 1.057 US gal)

  • Front ABS tone wheel-to-sensor gap: 0.4–1.85 mm (0.016–0.073 in)

  • Rear ABS tone wheel-to-sensor gap: 0.7–1.80 mm (0.028–0.071 in)

  • Rider saddle mounting screw torque: 10 Nm (1.0 kgm)

Aprilia Manual Features & Selected Content Preview

Publication Pages
ETV mille Caponord Workshop Manual, USA, release 00/2002-03 — P/N 8140548 344
ETV mille Workshop Manual with Caponord ABS section, UK, release 00/2004-04 — P/N 8140776 352
ETV mille Caponord Use and Maintenance, February 2001 — P/N 8104310, supplied in two parts 120
ETV 1000 Capo Nord 2001 Parts Catalogue, Cat. 3941, release 00, Italian/English 61
ETV mille Rally workshop update 28

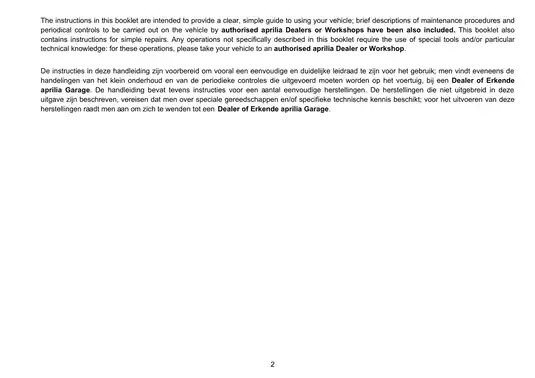

ETV 1000 Caponord owner's booklet, copyright 2006, English/Dutch 219

The workshop books cover service and repair; the owner publications cover operation and basic upkeep, while the catalogue supports parts identification. The Rally update adds variant-specific bodywork and fork procedures.

Engine repair scope: Complete-engine removal and installation are covered, but internal overhaul is referred to separate engine workshop publications that are not included.

PDF Search, Bookmarks and File Contents

Search and navigation: The ABS workshop manual has searchable text and detailed bookmarks, although some bookmarks lead to incorrect pages. The USA workshop manual has chapter bookmarks but no text search. Both parts of the 2001 owner manual are partly searchable; some headings and diagram labels are not. The parts catalogue and Rally update have searchable text. The English/Dutch booklet has no usable word search. Only the two workshop PDFs have bookmarks. Small wiring labels in the workshop books and 2001 owner manual require zooming.

The ZIP contains seven printable PDFs totaling 1,124 pages; the 2001 owner manual is split into 43- and 77-page files. This total includes the Rally update, four cover pages, 18 note pages, four blank pages, two importer-directory pages and three closing information pages.


EFI Diagnosis, ABS Service and Chassis Repair

The following selected contents outline the main workshop areas. Other topics include headlight aiming and storage preparation.

  • Engine and fuel system: Step-by-step engine removal and installation, clutch slave-cylinder removal, fuel-pump and throttle-body service, injector testing, cylinder synchronization, CO adjustment and throttle-position sensor setting.

  • Electrical diagnosis: Displayed fault codes, charging-system tests, ECU connections, ignition coils, thermistors, crankshaft-position sensing, starter and fuel-pump circuits, safety interlocks, switches and lighting.

  • Cooling system: Coolant replacement and removal of the radiator, cooling fan, coolant thermistors, thermostat and expansion reservoir.

  • Chassis service: Wheel and hub disassembly, brake pads and discs, hydraulic bleeding, steering-head service, front-fork teardown, swingarm inspection, suspension linkage work, spoke adjustment and chain breaking/riveting.

  • ABS equipment: Wheel-sensor replacement, tone-wheel inspection, controller removal, brake bleeding, troubleshooting tables and a dedicated wiring diagram.

  • Rally configuration: Its own maintenance schedule, body-panel and sump-guard removal, plus front-fork exploded views and disassembly, inspection, seal replacement and reassembly procedures.

  • Owner and parts references: Dashboard and control identification, saddle and luggage-area configuration, stand use, scheduled maintenance, vehicle-identification locations and 60 numbered parts-reference plates.

The workshop manuals are written for Aprilia dealers and qualified mechanics with motorcycle-repair knowledge and the specified equipment; the owner material suits riders handling operation and basic upkeep.

Fuel Injection and Electrical Fault Finding

The fault-code charts link dashboard indications to component tests, helping distinguish wiring or connection faults from failed sensors, coils or injectors. Separate checks also address a no-start condition when no fault code is displayed.

The fuel chapters include the tank-mounted pump assembly, delivery filter, engine-management sensors, ECU connectors and automatic tests. Throttle-position sensor setup uses the Axone diagnostic unit; the throttle-body linkage is not individually adjustable or removable. The USA book also includes evaporative-emission components and hose routing.

Engine, ABS and Suspension Work

The parts catalogue illustrates crankcases, crankshaft assemblies, cylinder heads and valves, cylinder timing systems, gearbox, clutch, water pump and ignition components. These are parts-identification references, not internal overhaul instructions.

The ABS controller is replaced as a complete unit rather than dismantled. Its troubleshooting tables distinguish sensor, power-supply, valve and pump faults and include Axone diagnostic-screen information.

The manual warns that phonic-wheel damage can impair ABS operation and that incorrect ABS hose routing can cause loss of braking. Removed click clamps must be replaced with matching clamps.

Owner Operation and Edition Differences

The owner publications explain instrument self-tests, warning lights, trip-odometer use, clock setting, EFI indications, fuel-tank access and load precautions. The later booklet also describes manual ABS deactivation and the passenger-saddle conversion that enlarges the luggage platform.

Dashboard functions vary by edition. Earlier workshop material describes switching kilometer/mile, liter/gallon and Celsius/Fahrenheit displays; the copyright-2006 booklet specifies factory-set kilometer/mile and temperature units that cannot be changed afterward.

Diagrams and Workshop Equipment

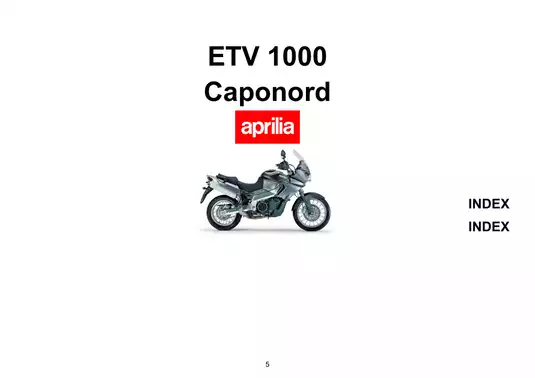

Illustrations include the fuel-injection diagram, ECU hook-up diagram, charging-system layout, complete Caponord wiring diagram, ABS wiring diagram and Rally front-fork exploded view.

Specified equipment includes the Axone 2000 diagnostic unit P/N 8140595, chain breaker/riveter P/N 8140192, engine lifting eye P/N 8140183, and engine stand/pedestal P/N 8140188 and 8140187.

Fuel-system, brake/ABS, and engine-removal work involves flammable fuel, hydraulic circuits, and a heavy engine assembly. Follow the publication's safety precautions and use the specified lifting and service equipment.

Examples of Injector Test Values and Rally Fork Limits

The ABS workshop manual specifies injector resistance of 11.5–13 Ω at 20°C (68°F), applicable to both injectors.

Rally front-fork inspection specifies a minimum unloaded spring length of 395 mm and a rod-curvature limit of 0.2 mm.
