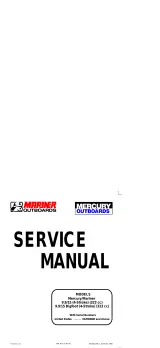

1998+ Mercury/Mariner 9.9/15 HP 4-Stroke Outboard Service Manual (P/N 90-856159R1)

This Mercury Marine factory service manual (P/N 90-856159R1, August 1998) covers 1998 and newer Mercury/Mariner 9.9 HP and 15 HP 4-stroke outboards, including standard and Bigfoot configurations featuring the 323 cc overhead-cam engine. Coverage starts at US serial number 0G590000.

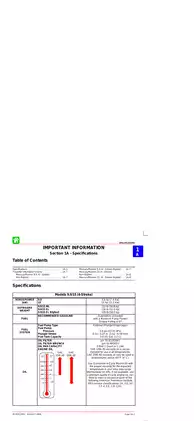

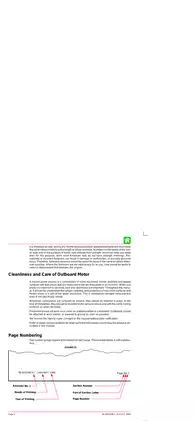

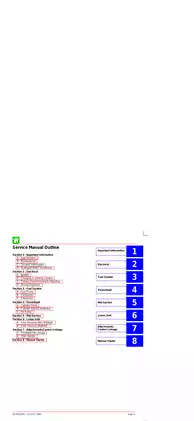

Text search, navigation, and diagram detail: Searchable PDF text and embedded bookmarks provide access to sections and individual procedures. Small wire-color labels and connector numbers are best read with zoom.

• Powerhead repair: Cylinder-head and crankcase disassembly, valve-clearance adjustment, valve-guide replacement, valve-seat reconditioning, piston inspection, main-bearing selection, and timing-belt installation.

• Fuel system: Diaphragm fuel-pump overhaul, carburetor disassembly and reassembly, float-height measurement, and choke and throttle-linkage setup.

• Electrical diagnosis: CDI troubleshooting, Direct Voltage Adapter (DVA) tests, charging-coil checks, rectifier/regulator diode tests, and ignition-timing verification.

• Lower-unit service: Separate Non-Bigfoot and Bigfoot gear-housing rebuilds, water-pump impeller replacement, propeller-shaft inspection, seal replacement, and gearcase pressure checks.

• Controls and starters: Tiller-handle repair, front-shift and side-shift cable adjustment, starter-motor overhaul, manual-rewind service, and neutral-interlock adjustment.

• Maintenance and cooling: Factory service intervals, engine-oil and gearcase-lubricant changes, spark plug and timing belt inspection, thermostat testing, and storage preparation.

• Illustrated references: Wiring diagrams and location views, starting-system troubleshooting flowcharts, propeller information charts, valve dimension drawings, and gear-housing exploded and cross-section views.

Written for dealer mechanics and Mercury Marine service personnel, the manual assumes training in outboard servicing and familiarity with the required hand tools and specialty tools.

Powerhead Repair and Mechanical Diagnosis

You will find factory-specified tolerances for cylinder bores, piston-to-cylinder clearances, and valve train dimensions, plus torque tables covering flywheel and cylinder-head fasteners. Internal repair procedures include cylinder-head resurfacing, crankshaft inspection, and Plastigauge checks for main-bearing and connecting-rod oil clearances.

Bearing selection and lubrication: Crankcase identification letters are matched to color-coded replacement main bearings. The oil-pump chapter covers trochoid rotor inspection and clearance measurement.

Compression faults: Cylinder leakage analysis relates escaping air to possible intake-valve, exhaust-valve, piston/ring, or head-gasket faults. This helps narrow the source of compression loss before powerhead disassembly.

The timing-belt section identifies the risk of valve damage when the drive or driven gear is rotated with the belt removed or incorrectly installed.

Ignition, Charging, and Starting Faults

The ignition section explains CDI operation and Electronic Control Module (ECM) control of spark advance, overspeed limiting, and low-oil-pressure speed reduction. Ignition timing is electronically controlled and nonadjustable; the manual provides verification tests and diagnostic references.

DVA and resistance tables address no-spark, weak-spark, and misfire conditions, with test-connection illustrations and Multimeter/DVA Tester 91-99750A1 identified. Charging-system coverage distinguishes standard 6-amp manual-start and 10-amp electric-start systems, plus the optional 10-amp manual-start kit. Output-versus-rpm tables and rectifier/regulator tests support charging diagnosis.

Separate wiring diagrams and wiring-location views cover electric-start tiller, electric-start remote-control, and manual-start models. The Starting System Troubleshooting Flow Chart identifies test points for the solenoid, neutral-start switch, and starter circuit.

Service warnings address spark-plug lead and battery isolation, accidental engine cranking, electrical shock, and fuel-system fire hazards.

Carburetor, Fuel Pump, and Emissions

Carburetor specifications distinguish standard and Bodensee jetting. The repair sections cover check valves, diaphragms, needle valves, and manual or electric choke components. Float height is measured with Carburetor Scale 91-36392; the specified remedy for an out-of-range float is replacement.

The emissions chapter provides combustion and emissions-control background, servicing responsibilities, and certification-label identification.

Standard and Bigfoot Gear Housings

The lower-unit chapters distinguish 2.0:1 Non-Bigfoot and 2.42:1 Bigfoot gearcases, including their bearing carriers, shift shafts, water pumps, and assembly details. Propeller information charts relate pitch to approximate boat weight, boat length, and speed range.

Bearing-carrier tools differ: 91-13664 for Non-Bigfoot and 91-93843--1 for Bigfoot. The Bigfoot chapter also identifies shared 20/25 HP two-stroke lower-unit procedures; this does not constitute complete engine coverage for those models.

The water-pump instructions warn that reversing a reused impeller's established vane direction can cause the vanes to crack and break.

Mounts, Reverse Lock, and Tiller Controls

Clamp and swivel bracket coverage includes upper-motor-mount replacement and the two-piece reverse-lock link-rod upgrade, kit 858338A3, referenced to Service Bulletin 98-13. Front-shift, side-shift, and remote-control linkage layouts are distinguished, with tiller cable setup and manual-starter interlock checks.

English PDF and Included Pages

Supplied as one printable English-language PDF. The 373-page file comprises 369 section pages, a one-page cover, and three introductory/outline pages. Three notes pages and one blank page are already included within the section-page count.
