2007–2008 Yamaha YFM7FG Grizzly 700 ATV Service Manual (P/N LIT-11616-20-11)

This Yamaha service manual (P/N LIT-11616-20-11) covers the 2007–2008 YFM7FG Grizzly 700 ATV, including model codes 3B41, 3B45, and 3B48. It provides inspection, adjustment, and repair procedures for the fuel-injected engine, shaft drive, chassis, and Electric Power Steering (EPS) system.

• Engine repair: Cylinder head, camshaft, rocker arms, valves, piston, crankshaft, and AC magneto removal, inspection, and assembly.

• CVT and transmission: Primary and secondary sheaves, centrifugal clutch, crankcase, internal transmission, and middle drive shaft service.

• Fuel injection: ECU fault codes, sensor and actuator checks, fuel pump testing, throttle body inspection, and throttle position sensor adjustment.

• Shaft drive: Front and rear constant velocity joints, differential gear case, final gear assembly, shim selection, and gear lash adjustment.

• Brakes and chassis: Brake master cylinders and calipers, hydraulic brake bleeding, steering knuckles, ball joints, suspension arms, and wheel bearings.

• Cooling and routine service: Radiator, thermostat, water pump, coolant replacement, valve clearance adjustment, and compression testing.

• Electrical diagnosis: EPS, ignition, starting, charging, lighting, and drive-mode control circuits, supported by wiring diagrams and cable routing illustrations.

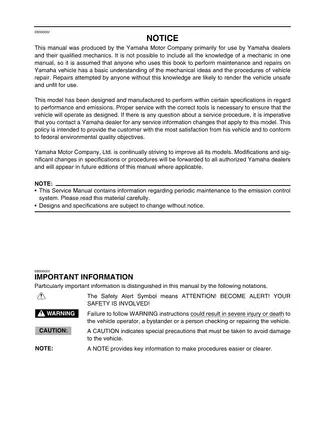

Yamaha wrote this manual primarily for its dealers and qualified mechanics. It assumes a working knowledge of vehicle repair and the use of the specified workshop tools.

FI, EPS, and Electrical Diagnosis

The fuel injection chapter links ECU fault codes to probable causes, sensor readings, actuator tests, and connector checks. These references help you distinguish a wiring or power-supply problem from a failed sensor before selecting a repair.

EPS troubleshooting covers current and stored malfunctions, torque sensor faults, motor circuits, and battery or charging issues. The EPS unit must not be disassembled because doing so can cause accidental damage.

An EPS block diagram explains the relationship between the torque sensor, control unit, motor, and vehicle signals. Dedicated FI and drive-mode circuit diagrams support electrical tracing alongside the full-vehicle wiring diagram.

Engine, CVT, and Shaft-Drive Repair

Engine procedures cover removal, internal inspection, valve timing, and reassembly, with exploded views showing component order and assembly details. The sheave and clutch sections identify the spring compressor and other special tools required for this work.

The drivetrain chapters include middle gear and final drive shim selection, bearing checks, and backlash measurement. They distinguish service of the differential gear case from the factory-assembled differential unit: dismantling that internal unit can cause it to malfunction.

Brake, Cooling, and Maintenance References

Brake coverage includes master cylinder and caliper inspection, seal replacement, and hydraulic bleeding. Steering and suspension sections address knuckles, ball joints, alignment, and arm or bearing inspection.

Coolant and oil flow diagrams show the circulation paths used alongside water pump, cooling system, and lubrication service. Periodic maintenance charts connect routine checks with the relevant adjustment and inspection sections.

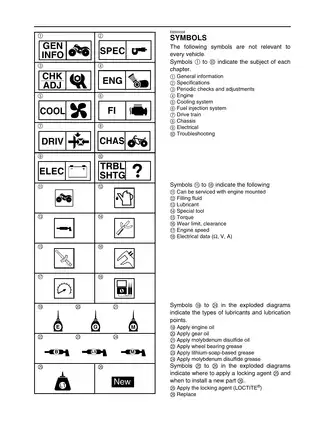

Engine and chassis tightening torque tables accompany the repair procedures, together with general torque guidance for standard ISO fasteners. Lubrication tables identify application points for engine oil, lithium-soap-based grease, and other specified lubricants.

Brake and steering work requires the manual’s safety precautions and final checks. Keep the vehicle securely supported and consult a qualified technician when a procedure exceeds your training.

A Preview of Compression and Fuel-System Test Data

These pressure and sensor values are a small selection of the manual’s diagnostic specifications.

For a warmed engine at sea level, standard compression pressure is 450 kPa, measured with the throttle fully open during cranking. The fuel pump and pressure regulator test specifies 324 kPa with the engine running.

The throttle position sensor adjustment range is 0.63–0.73 V between the yellow and black/blue leads. The manual requires the engine idle speed to be correctly adjusted before this sensor adjustment.

PDF Navigation, Wiring Detail, and Page Count

Text search and diagram detail: Searchable text and embedded bookmarks provide access to the main chapters and individual repair sections. Small wiring labels are readable with magnification; the dense FI, EPS, and full-vehicle diagrams require zooming to inspect connector identifiers and wire color codes.

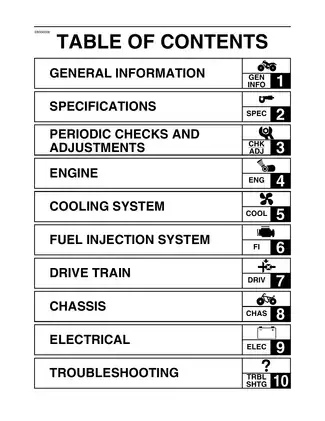

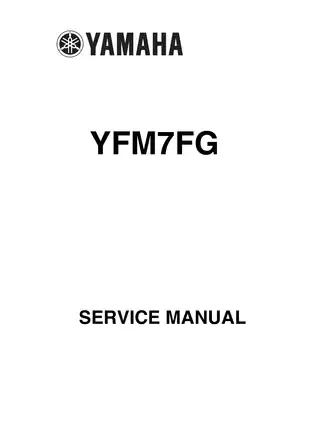

One printable, English-language file is supplied as a 483-page PDF. This total includes 463 technical pages, 17 preliminary pages including the cover and contents, one otherwise blank chapter page, and two pages for the full-vehicle wiring diagram and its legend.
