Honda GXV270 / GXV340 / GXV390 1986–2003 Service Manual Set (P/N 61ZE810)

The supplements document changes to the base shop manual and refer back to it for service information they do not repeat. Use the applicable supplement alongside the base procedures when selecting specifications, components, and service methods.

PDF Access, Wiring Detail, and Page Breakdown

Search, bookmarks, and diagram detail: Text search is limited to a few cover headings; the service pages have no searchable text, and there are no embedded PDF bookmarks. Small wiring labels are readable when enlarged.

The ZIP contains one printable, English-language PDF with 109 pages. This includes the publications listed above, their supplement covers, one additional general cover, and one additional propane floor-machine troubleshooting sheet.

Engine Overhaul, Fuel-System Service, and Starter Diagnosis

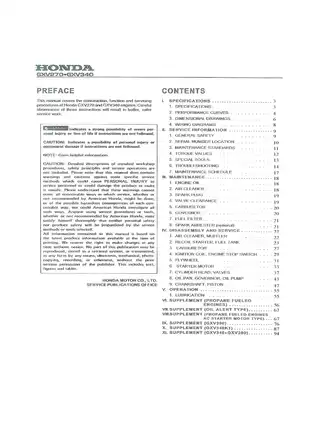

The following selected contents highlight the repair and diagnostic coverage rather than reproduce the full table of contents. Other topics include optional spark-arrester cleaning and fuel-filter service.

• Engine diagnosis: Hard-start, no-spark, low-power, and governed-speed troubleshooting, with cylinder-compression checks and fault paths tied to component inspections.

• Internal engine repair: Step-by-step procedures for cylinder-head service, valve-guide replacement, valve-seat reconditioning, and crankshaft, piston, connecting-rod, camshaft, and balancer work.

• Fuel and governor service: Carburetor disassembly, float-level inspection, pilot-screw adjustment, governor setup, and emissions-type limiter-cap replacement.

• Lubrication system: Oil-pan and governor disassembly, trochoid oil-pump inspection, lubrication-system operation, and oil-filter service for applicable configurations.

• Starting and electrical systems: Recoil-starter assembly, electric-starter testing, ignition and charging checks, Oil Alert diagnosis, and DAP4 AC-starter inspection.

• Service references: Component-specific torque tables, maintenance standards, wear limits, special-tool references, wiring diagrams, performance curves, and dimensional drawings.

This manual set is suited to mechanically proficient owners and service technicians with appropriate tools; Honda does not teach standard workshop procedures or general service fundamentals in detail.

Cylinder Head and Internal Engine Work

Valve work extends to guide removal, installation and reaming, guide-to-stem measurements, and valve-seat cutting and lapping. Internal inspection covers piston-to-cylinder clearance, piston-ring end gap, crankpin and connecting-rod dimensions, connecting-rod oil clearance, camshaft wear, and bearing condition.

Crankshaft service includes bearing installation and timing/balancer gear removal and installation. The assembly illustrations identify timing relationships, component orientation, and oil-seal precautions.

Honda warns that incorrect valve-retainer handling or an omitted exhaust-valve rotator can allow a valve to drop into the cylinder. A separate serial-specific warning identifies a balancer-bearing installation method that can damage the crankcase.

Propane, Model Revisions, and Emissions Differences

DAP propane engines: The supplement changes valve-seat data and engine-oil requirements for LPG-only operation. It specifies SAE 30 single-viscosity oil meeting its listed API classifications and directs users to the LPG equipment manufacturer for installation and operating instructions.

GXV390 and GXV340K1: The change tables distinguish fuel-tank hardware, carburetor insulators and gaskets, wiring clips, breather connections, and cylinder-head components. These references help identify the applicable parts and procedures before disassembly.

California emissions configurations: The supplement covers the oil-filter arrangement and carburetor with a limiter-capped pilot screw. Honda explains that removing the limiter cap breaks the pilot screw, and provides replacement information for carburetor overhaul.

Ignition, Oil Alert, and Starter Circuits

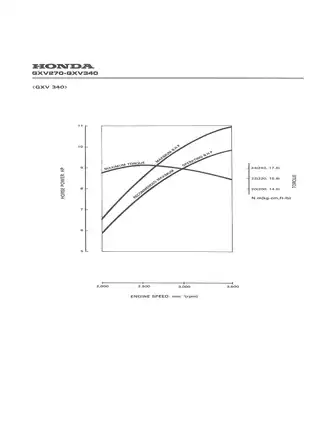

Electrical references include the Basic Circuit, Oil Alert Circuit, 12V Starter Circuit, 3A Charging System, and 1A Charging System, plus the DAP4 AC-starter Connecting Diagram. The GXV390 Performance Curve and model-specific dimensional drawings provide additional reference material.

The Oil Alert section explains buzzer operation and oil-level-switch continuity testing. The DAP4 section covers the 117 V AC starter, including performance checks, brushes, armature tests, overrunning-clutch inspection, starter-switch checks, and diode-pack testing.

Special Tools and Workshop Planning

Factory tool references include float level gauge 07401-0010000, flywheel puller 07935-8050003, valve guide reamer 07984-ZE20000, bearing-removal and installation tooling, valve-seat cutters and pilots, and oil-filter wrench 07912-6110001. These references make the manual useful when planning repair work that requires more than ordinary hand tools.

Service involves gasoline or LPG, hot and rotating parts, spring-loaded components, and starter/ignition circuits, so Honda's model-specific cautions should be followed during repair.

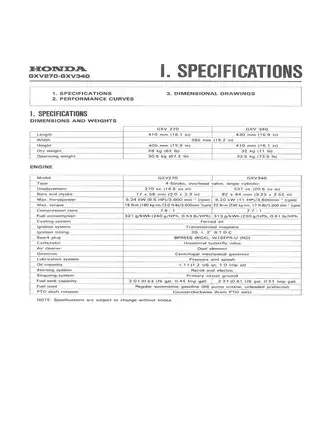

A Preview of Compression, Valve, and Inspection Data

The base GXV270/GXV340 tables list cylinder compression of 6.0–8.5 kg/cm² (85–121 psi) at 600 rpm; the GXV390 supplement lists 5.0–8.5 kg/cm² (71–121 psi) at the same speed.

Cold valve clearances are 0.15 ± 0.02 mm intake and 0.20 ± 0.02 mm exhaust for the base engines. GXV390 specifications change these to 0.10 ± 0.02 mm intake and 0.15 ± 0.02 mm exhaust.

Cylinder-head bolt torque is listed as 32–38 N·m (23.1–27.5 ft-lb) in the base tables and 34 N·m (25.3 ft-lb) in the emissions supplement's torque table. Oil-pump inspection data includes rotor-to-body side clearance of 0.02–0.09 mm, with a 0.11 mm service limit.
