1984–1989 Honda VF1000F Factory Service & Repair Manual

Honda factory service information for the 1984–1989 VF1000F, covering scheduled maintenance, troubleshooting, and mechanical repair for the regional versions listed above.

PDF Reading, Wiring Detail, and Page Count

Search and diagram navigation: Text search is limited to the cover; the manual pages have no searchable text layer or embedded PDF bookmarks. Small wire-color codes and connector labels in the main wiring diagram are readable when enlarged. That diagram spans two consecutive PDF pages.

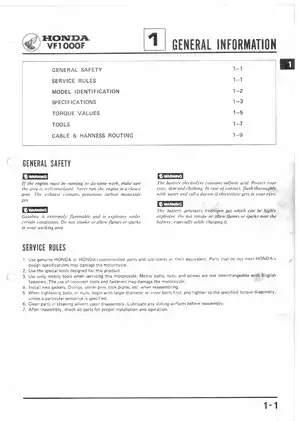

One printable, English-language PDF contains 323 pages, including one added cover, 18 section-divider pages, and one memo page.

V-4 Engine, Carburetor, and Chassis Service

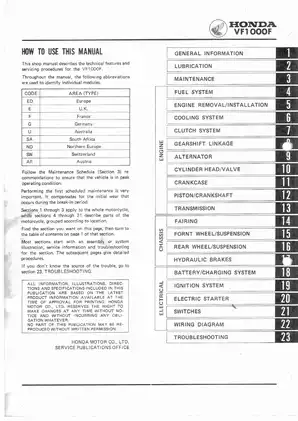

These selected service topics outline the repair coverage rather than reproduce the full contents. Other subjects include fairing removal and instrument servicing.

• Engine repair: Engine removal, cylinder-head and valve service, camshaft timing, crankcase separation, piston inspection, and crankshaft bearing selection.

• Fuel and lubrication: Keihin carburetor disassembly and synchronization, fuel-pump testing, oil-pressure diagnosis, and oil-pump inspection.

• Cooling system: Pressure testing, thermostat inspection, upper and lower radiator removal, cooling-fan service, and water-pump replacement.

• Clutch and transmission: Hydraulic clutch bleeding, master and slave cylinder repair, starter-clutch service, gearshift linkage, and internal transmission inspection.

• Brakes and suspension: Hydraulic brake overhaul, front fork and anti-dive service, rear shock oil-seal replacement, and swingarm bearing work.

• Electrical diagnosis: Charging-system tests, transistorized ignition checks, starter-motor service, switch continuity charts, and wiring diagrams.

This manual is suited to mechanically qualified readers with appropriate tools and measuring equipment; it assumes workshop knowledge rather than teaching standard service procedures from the beginning.

Engine Overhaul and Workshop Planning

The service sections distinguish work possible with the engine installed from jobs requiring removal, helping you establish the scope of a repair before dismantling. The front cylinder head can be removed in the frame; rear cylinder-head removal requires the engine to come out.

Cylinder-head coverage extends to valve-guide replacement, valve-seat refacing, rocker-arm inspection, and camshaft oil-clearance checks. The installation instructions warn that forcing a valve open while fitting the camshaft holders can damage the holders or camshaft bearing surfaces.

Piston and crankshaft procedures include ring inspection, connecting-rod checks, and color-coded main and crankpin bearing selection tables. Internal transmission repair requires crankcase separation and covers gear dogs, bushings, shift forks, and the shift drum.

Maintenance schedules, component torque tables, and inspection limits support both routine servicing and overhaul planning. The lubrication chapter adds oil-pressure troubleshooting, relief-valve inspection, and oil-pump disassembly.

Keihin Carburetors and Fuel Delivery

Step-by-step instructions cover carburetor-bank removal, vacuum-piston and diaphragm inspection, float and jet service, reassembly, vacuum synchronization, and pilot-screw adjustment. The fuel-system specifications distinguish German and Swiss carburetor versions, while the procedures identify front-to-rear needle and spring differences.

The carburetor separation instructions flag the risk of damaging the fuel and air joint pipes through incorrect handling. Fuel-pump flow testing and relay checks provide separate ways to investigate restricted delivery and electrical supply faults.

Special-tool references include Honda carburetor pilot screw wrench 07908-4220201.

Cooling-System Tests and Replacement Limits

Radiator-cap and system pressure tests accompany thermostat checks, coolant replacement, air bleeding, and radiator/fan removal procedures. Water-pump coverage includes mechanical-seal leakage inspection and removal/installation; a leaking mechanical seal calls for replacement of the pump assembly.

Cooling-system service requires a cold engine because hot, pressurized coolant can cause scalding.

Hydraulic Controls, Suspension, and Wheels

Clutch coverage includes hydraulic bleeding, master and slave cylinder inspection, friction-disc and plate checks, and one-way clutch assembly. Brake procedures cover pad replacement, disc inspection, caliper rebuilding, and front and rear master cylinders.

Front fork instructions extend to the anti-dive piston, adjuster, orifice, and check valve. Rear suspension work includes shock oil-seal replacement using a hydraulic press, linkage inspection, and swingarm pivot-bearing replacement.

Exploded assembly views support these procedures, alongside steering-head bearing adjustment and wheel-bearing service. Tubeless tire repair is referred to a separate Honda manual, which is not included.

Electrical Tests and Fault Tracing

Cable and harness routing drawings accompany separate battery/charging, ignition, and electric-starter circuit diagrams. The main wiring diagram adds connector identifiers, wire-color codes, and switch continuity tables.

The electrical chapters cover stator and regulator/rectifier tests, ignition-coil and pulse-generator checks, and starter brush and commutator inspection. Symptom-based troubleshooting charts connect starting difficulty, power loss, and poor running with the relevant fuel, ignition, compression, and lubrication checks.

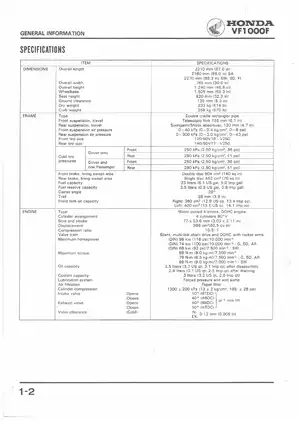

Selected Compression, Oil-Pump, and Chain Specifications

The cylinder-compression test specifies 1,300 ± 200 kPa with the engine warm and the throttle fully open during cranking. Oil-pump inspection lists a rotor-tip clearance of 0.15 mm as standard and 0.20 mm as the service limit.

Drive-chain inspection specifies 15–25 mm of slack at the lower run midway between the sprockets, with the engine off, transmission in neutral, and motorcycle on its center stand.
