1983–1986 Yamaha YTM200 & YTM225 Tri-Moto OEM Service Manual (P/N LIT-11616-05-33)

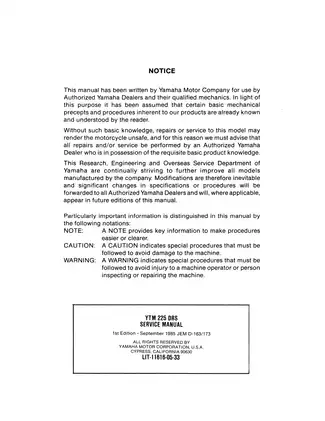

This 397-page PDF reproduces Yamaha's factory service-manual set for YTM200 K-N (1983-1985) and YTM225 K-S (1983-1986) Tri-Moto models. Written by Yamaha for authorized dealers and qualified mechanics, it assumes the reader already understands basic Yamaha mechanical service practices. The material is suited to experienced shop work involving engine, shaft-drive, chassis, and electrical repair.

• Model-specific coverage: Identifies the YTM200EK, YTM225DXK, YTM200ERN, YTM225DRN, and YTM225DRS publications, with rigid-rear and MonoCross chassis differences plus forward-only and reverse-equipped shaft-drive configurations.
• Engine repair procedures: Covers engine removal, cylinder-head and valve service, cylinder and piston work, crankshaft and connecting-rod inspection, transmission service, oil-pump and balancer work, primary and secondary clutch inspection, and engine reassembly and adjustment.
• Driveline work: Details middle-gear and final-gear troubleshooting, disassembly and assembly, shim selection, gear-lash measurement and adjustment, driven-shaft positioning, U-joint service, and drive-shaft inspection.
• Chassis repair: Includes front and rear wheel service, wheel bearings and axle inspection, front drum and rear disc brakes, steering-head service, front-fork overhaul, and model-specific rear shock and swingarm procedures.
• Fuel and routine service: Provides Mikuni carburetor sectional views, disassembly, inspection, float-level and idle adjustment, air-cleaner and crankcase-ventilation service, valve and cam-chain adjustment, ignition-timing and compression checks, and maintenance/lubrication charts.
• Electrical diagnosis and shop data: Follows electric starting, start-circuit cutoff, charging, CDI ignition, lighting, and neutral/reverse signal systems through circuit diagrams and fault-isolation charts, backed by torque data, wear limits, capacities, clearances, carburetor settings, and electrical test specifications.

Publication Set and Identification

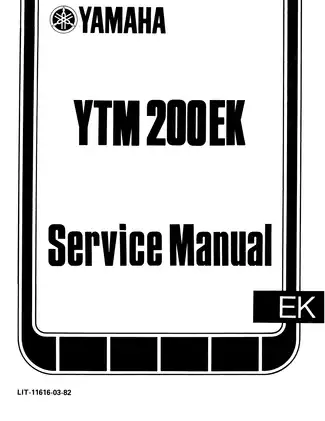

The file contains three collection front-matter pages and the 178-page YTM200EK Service Manual. Its supplements comprise 67 pages for YTM225DXK, 34 for YTM200ERN, 86 for YTM225DRN, and 29 for YTM225DRS. The Yamaha literature numbers shown are LIT-11616-05-33, LIT-11616-03-82, LIT-11616-03-81, LIT-11616-04-14, and LIT-11616-04-86. The ERN foreword also identifies the base manual as 24W-28197-10.

Factory identification data ties the procedures to YTM200EK code 24W, with frame and engine starting number 24W-000101, and YTM225DXK code 29U, with frame and engine starting number 29U-000101. Later supplements identify YTM200ERN code 52G with VIN JY352G00FC000101, YTM225DRN code 1EV with VIN JY31EV00FC000101, and YTM225DRS code 1NV with VIN JY31NV00*GC000101. The manuals present these identifiers as model-verification starting points.

Variant-Specific Service Depth

The EK and ERN specifications cover the 196.3 cc SOHC single and rigid rear chassis, while the DXK, DRN, and DRS material covers the 223.2 cc SOHC single with MonoCross rear suspension. ERN, DRN, and DRS coverage adds the dog-clutch reverse system, including its first-gear-only operation, selector components, forward/reverse gear shimming, and reverse-switch circuitry.

Each supplement is cumulative rather than stand-alone. Yamaha directs the DXK supplement to be used with the EK base manual, the DRN supplement with both EK and DXK publications, and the DRS supplement with EK, DXK, and DRN. All referenced publications are present in this set. The DRS supplement concentrates on the revised front fork, related special tools, model-specific specifications, and cable routing; full engine and driveline repair procedures remain in the included earlier publications.

The engine chapter distinguishes in-chassis cylinder and flywheel work from repair that requires engine or rear-wheel-drive removal. Model updates then add DXK front-fork, gas/oil rear-shock, swingarm, and final-drive procedures; ERN reverse middle-gear service; and DRN forward/reverse shim calculation, gear-lash checks, driven-shaft positioning, and electrical troubleshooting.

Special Tools, Diagrams, and Repair Cautions

Engine tool callouts identify the YM-04019 valve spring compressor and YU-01135 crankshaft separator. Driveline work specifies the YM-04062 Universal Joint Holder with YM-33291 attachment, YM-1392 Middle Gear Lash Tool, YM-01231 Final Gear Lash Tool, and the YM-33286/YM-33222 damper spring compressor. DRS fork service calls for the YM-01326 T-handle, YM-01300-1 cylinder holder, and YM-33963/YM-1368 seal-driving set.

Named visual references include the Carburetor Sectional View, Middle Gear and Final Gear exploded diagrams, YTM200EK Wiring Diagram, YTM225DRN Circuit Diagram, and Entire Ignition System Check, supported by lubrication and cable-routing layouts throughout the set.

The middle-gear instructions warn that tightening past the lash target damages the single-use collapsible collar; backing off the nut does not restore its preload. Too little gear lash can destroy the teeth, and broken teeth may lock the shaft drive; disconnecting the battery with the generator running can also damage charging-system semiconductors. Follow the applicable model supplement and Yamaha's safety notes before beginning service or parts replacement.
