Mercury Mariner 65/80 Jet & 75/90/100/115/125 Outboard Service Manual, 1997–2002 (P/N 90-830234R3)

Mercury Marine factory service manual P/N 90-830234R3, December 1997, covers 65 Jet, 80 Jet, 75, 75 Marathon, 75 Sea Pro, 90, 100, 115, and 125 models. The cover identifies U.S. serial 0D283222 and above / Belgium 09793577 and above.

Searchable Chapter PDFs and Diagram Detail

Text search, bookmarks, and wiring detail: The PDFs contain searchable text and embedded bookmarks. In 8.pdf, the opening “Manual Starter” bookmark has no destination; the remaining section bookmarks provide navigation. Small wire-color labels and connector numbers require zooming.

The ZIP contains one English service manual divided into 24 printable PDFs, totaling 585 pages, including 4 cover and preliminary pages, 46 section title/contents pages, and 8 Notes pages.

Powerhead, Electrical, Trim, and Lower-Unit Service

These selected service topics show part of the manual’s coverage. Other subjects include exhaust-emissions background and decal application.

• Powerhead repair: Step-by-step removal, disassembly, cleaning, inspection, crankshaft, piston and connecting-rod service, cylinder-block and crankcase work, reed-block inspection, reassembly, and installation.

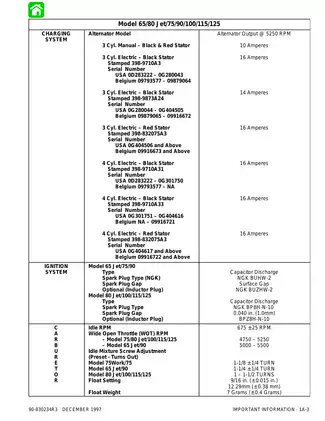

• Ignition and charging: Black- and red-stator systems, switch-box and CDM fault isolation, DVA and resistance tests, flywheel, stator, trigger and coil replacement, and starter-motor overhaul.

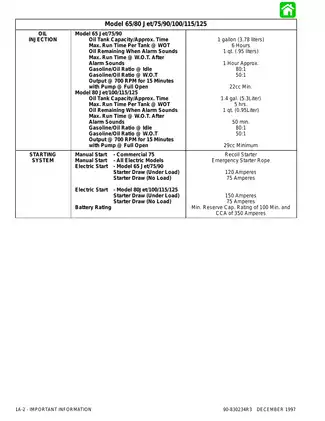

• Fuel and oil injection: Three- and four-cylinder fuel-pump repair, WME carburetor troubleshooting, high-altitude jet selection, enrichener and accelerator-pump circuits, oil-pump testing, synchronization, bleeding, and warning-system diagnosis.

• Power trim: Separate black- and yellow-fill-plug sections with electrical and hydraulic troubleshooting, leak-down checks, pump and rod service, reassembly, and purging.

• Gear housing: Removal and overhaul, water-pump service, bearing and seal replacement, pinion-depth and forward-gear backlash setup, pressure testing, and installation.

• Jet drive: Separate 65/80 Jet assemblies, impeller and liner service, bearing-carrier overhaul, mounting-height guidance, cavitation checks, and impeller-clearance adjustment.

• Manual tilt and shock absorber: Hydraulic fault finding, valve-block and seal work, filling and bleeding, plus shock-absorber removal, inspection, and installation.

Mercury wrote this manual for dealer mechanics and company service personnel. It assumes familiarity with servicing comparable outboards, standard shop tools, and the listed Mercury special tools.

Maintenance, Installation, and Controls

Routine-service coverage includes the factory maintenance schedule, cooling-system flushing, fuel-filter and corrosion-anode service, spark-plug and battery checks, lubrication points, power-trim fluid, gearcase lubricant, and off-season storage.

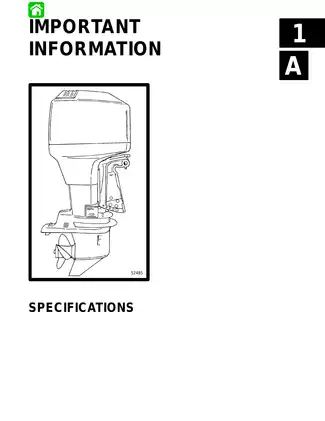

General-information chapters address compression checks, recovery after complete submersion, propeller selection, trim operation, and surface preparation and painting for aluminum propellers and gear housings.

Mounting and steering: Installation procedures cover mounting-height selection, transom drilling, lifting and fastening the outboard, single- and dual-cable steering, and parallel and opposite-side Ride-Guide routing.

Controls and starting: Remote-control wiring, shift/throttle cable setup, oil-injection setup and bleeding, and trim-tab adjustment are included. Dedicated sections handle the tiller arm, Co-Pilot, shift linkage, throttle cable, and rewind starter.

Electrical Diagnosis and Service References

Separate timing and synchronization procedures address three- and four-cylinder engines. CDM troubleshooting charts distinguish a complete loss of spark from faults where at least one module still produces spark, helping narrow the relevant test path.

Diagram examples include the 1997 75/90 CDM wiring diagram, 1998 80 Jet/100/115/125 wiring diagram, and COMMANDER 2000 power-trim/tilt and warning-horn schematic. There are also starting-circuit troubleshooting flow charts, a three- and four-cylinder oil-flow diagram, and power-trim hydraulic diagrams for up, down, and shock operation.

Manual-start 75 Work and 1998 electric-start tiller configurations have their own wiring diagrams. Year-labeled wiring and carburetor data span 1994 through 1998.

Service equipment: References include DVA meter 91-99750, CDM test harness 84-825207A2, flywheel holder 91-52344, and puller 91-73687A1.

Power-trim work lists spanner 91-74951. Gear setup uses pinion gear locating tool 91-12349A2 and backlash indicators 91-78473 and 91-19660-1. Reference tables provide carburetor applications, electrical test data, component-specific torque sequences, pressure and leak-down checks, wear limits, clearances, and gear-setup specifications.

Trim Variants and Repair Limits

The black-fill-plug section applies through U.S. 0G360002 / Belgium 9934136; yellow-fill-plug coverage starts at U.S. 0G360003 / Belgium 9934137. These divisions help identify the appropriate electrical and hydraulic procedures before selecting parts or tests.

The black-fill-plug chapter includes trim-motor disassembly, armature testing, and repair. The yellow-fill-plug chapter specifies a nonserviceable motor: a failed motor is replaced as an assembly.

Manual-tilt coverage includes valve-block service, seal placement, filling, and bleeding. Its nitrogen-charged accumulator is nonserviceable, and shock-rod assembly repairs are limited to the O-rings and wiper ring.

Shock-absorber rebuilding is referred to the instructions supplied with repair kit 41760A2. In-depth propeller and boat-performance information is referred to separate Mercury publication 90-86144.

Powerhead Assembly and Installation Cautions

The three-cylinder 65 Jet/75/90 and four-cylinder 80 Jet/100/115/125 assemblies have separate component drawings, hose and harness routing, and torque sequences.

The line-bored cylinder block and crankcase cover must remain matched, while connecting-rod caps must retain their original rod and orientation; mixing these parts can damage the assembly. Lower-unit installation cautions explain how lubricant trapped on top of the driveshaft can prevent full crankshaft engagement and damage the powerhead or gear housing.

Follow the manual’s safety notices: isolate the battery for electrical service, eliminate ignition sources around open fuel systems, wear eye protection when servicing the rewind starter, and never work beneath a suspended outboard.

A Preview of Gear and Impeller Clearances

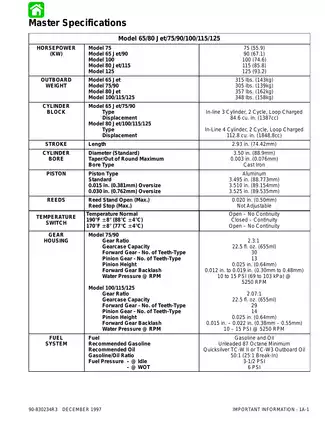

For 75/90 gearcases, the forward-gear backlash specification is 0.012–0.019 in.; for 100/115/125 gearcases, it is 0.015–0.022 in. The lower-unit chapter pairs these limits with pinion-depth and shim-selection procedures.

For the 65/80 Jet drive, impeller-to-liner clearance is approximately 0.03 in. (0.8mm), illustrated alongside inspection and adjustment guidance.
