1998 Mercury/Mariner 9.9/15 HP 4-Stroke Outboard Service Manual (P/N 90-856159R1)

This Mercury Marine service manual covers 1998 Mercury/Mariner 9.9 and 15 HP four-stroke outboards with the 323 cc engine, including standard and Bigfoot models. Publication 90-856159R1, August 1998, identifies the U.S. serial range as 0G590000 and above.

Text search and wiring detail: The service chapters have searchable PDF text. Six embedded bookmarks cover the front matter and manual outline only. Small wire-color labels and connector numbers on the wiring pages are best read with zoom.

• Powerhead repair: Cylinder-head and cylinder-block/crankcase teardown, valve-train inspection, piston and crankshaft service, timing-belt installation, and cold valve-clearance adjustment.

• Fuel system: Carburetor and diaphragm fuel-pump disassembly, inspection, and reassembly, plus float-height measurement, choke installation, and throttle-linkage adjustment.

• Ignition and starting: CDI/ECM diagnosis, DVA and resistance tests, charging-system checks, starter-solenoid testing, and electric starter-motor repair.

• Cooling and lubrication: Water-pump impeller replacement, thermostat testing, oil-pump inspection, and related service specifications.

• Lower-unit service: Separate standard and Bigfoot gear-housing procedures covering gears, shafts, bearings, seals, pressure checks, and installation.

• Controls and manual starter: Tiller-handle overhaul, throttle/shift linkage layouts, cable adjustment, manual rewind repair, and neutral-interlock adjustment.

Written for Mercury Marine dealer mechanics and company service personnel, this manual assumes prior service training and familiarity with standard and special tools.

Powerhead Repair and Maintenance

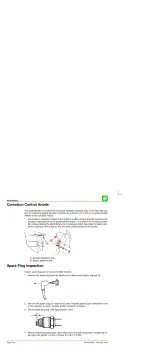

The Inspection and Maintenance Schedule covers routine service and storage. Compression checks and Cylinder Leakage Testing include an air-leak source table that helps distinguish valve, piston-ring, and head-gasket problems before teardown.

Internal repair coverage extends to cylinder-head resurfacing, valve-guide replacement, valve-seat reconditioning, and camshaft and rocker-arm inspection. Valve Dimensions drawings, piston-to-cylinder clearances, color-coded main-bearing selection, and component torque sequences support inspection and reassembly.

The timing-belt instructions flag valve damage from rotating the drive or driven gear with the belt removed or incorrectly installed. Special tools include Valve Spring Compressor 91-809494A1.

Thermostat testing covers opening temperature and valve lift. The trochoid oil-pump chapter provides rotor-clearance checks and reassembly details.

Carburetor and Fuel-Pump Service

The carburetor chapter distinguishes standard and Bodensee jetting, manual choke linkage, and electric choke installation. Fuel-pump repair extends to the plunger, diaphragms, springs, and check valves; carburetor inspection covers the needle valve, float, jets, and nozzle.

Electrical Diagnosis and Wiring

The ignition chapter explains ECM-controlled spark timing, overspeed limiting, and low-oil-pressure protection. Symptom-based diagnosis uses DVA tester 91-99750A1, charge-coil and crank-position-sensor resistance checks, and firing-order data. Ignition timing is checked but is not mechanically adjustable.

Charging coverage distinguishes the standard 6-amp manual-start system from the 10-amp electric-start system and optional 10-amp manual-start conversion. Rectifier/regulator diode tests and the Starting System Troubleshooting Flow Chart support charging and no-crank diagnosis.

Three wiring diagrams cover electric-start tiller, electric-start remote-control, and manual-start models, with three corresponding Wiring Locations views. Electrical Components exploded illustrations show assembly details.

The manual's safety instructions address high-voltage ignition, battery isolation, and gasoline fire hazards during fuel-system service.

Standard and Bigfoot Gear Housings

Separate chapters cover 2.0:1 standard and 2.42:1 Bigfoot housings. Gear and clutch inspection, bearing-carrier service, seal replacement, and leak checks accompany the disassembly and installation procedures. Propeller Information Charts distinguish model-specific propeller choices.

The water-pump instructions warn that reversing the established vane direction of a reused impeller can cause vane breakage.

References to 20/25 HP two-stroke models apply to shared gear-housing work; they do not extend this manual to complete service of those engines.

Tiller, Linkage, and Mid-Section

Tiller-handle instructions distinguish front-shift and side-shift cable routing and adjustment. Remote-control linkage has separate component views, while manual-starter coverage includes rope replacement and rewind-spring tension.

The mid-section chapter covers clamp/swivel brackets, motor mounts, and the drive shaft housing. It also documents the two-piece reverse-lock link rod upgrade, kit 858338A3, with early/current designs and operational checks.

English PDF and Included Pages

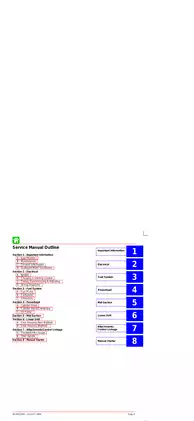

Supplied as one printable 373-page PDF in English. The cover, three introductory/outline pages, three Notes pages, and one blank page are already included in that total.
