Mercury Mariner 70–115 HP Outboard Service Manual 1987–1993 (P/N 90-13645-2)

391 Pages • ZIP Download: 17 Printable PDFs • 8.37 MB

4.5starstarstarstarstar_half(4)
$14.18 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Mercury Models Covered & Key Technical Specifications

Models: Mariner 70hp, 75hp, 80hp, 90hp, 100hp, 115hp

Sub-models / Variants: ELO, ELOPT, 3-Cylinder (70hp, 75hp, 80hp, 90hp), 4-Cylinder (100hp, 115hp), Marathon (75hp), 75XD (Mercury), 75 Seapro

Serial numbers — 3-Cylinder: U.S. 0A996142 through 0D283221; Belgium 09502135 through 09793576; Canada 0A722297 and above

Serial numbers — 4-Cylinder: U.S. 0B209468 through 0D283221; Belgium 09523034 through 09793576; Canada 0A731673 and above

Timing specification serial breaks — 70hp, 75hp, 80hp: U.S. B239241 and below / B239242 and above; Belgium 9502134 and below / 9502135 and above; Canada A730006 and below / A730007 and above

Powerhead serial breaks: 75hp/90hp — OC259434 and above: no main-bearing retaining ring or crankshaft retaining-ring groove; 3-Cylinder/4-Cylinder — OC123214 and above: factory-installed bleed check valve/restrictor kit

Model Years: 1987–1993 (1987, 1988, 1989, 1990, 1991, 1992, 1993)


  • Engine type: 2-cycle, 3 or 4 cylinder

  • Idle RPM (in gear): 650–700 RPM

  • Full throttle RPM range: 4750–5500 RPM (model dependent)

  • Gear ratio: 2.3:1 (3-cyl) or 2.07:1 (4-cyl)

  • Flywheel nut torque: 120 lb. ft. (162.7 Nm)

  • Gear housing lubricant capacity: 22.5 fl. oz. (665.2 ml)

  • Minimum cold cranking amperage: 350 amperes

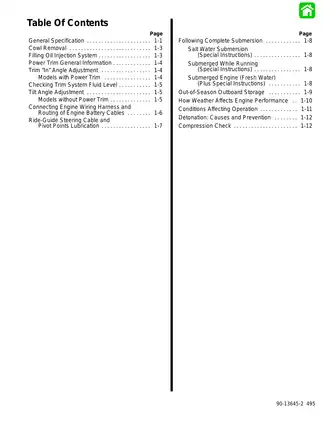

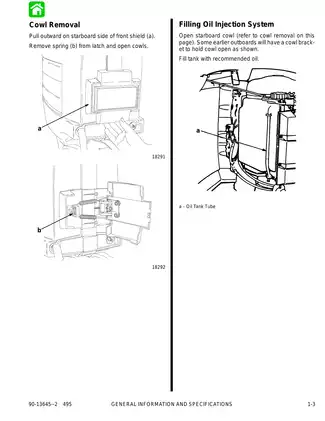

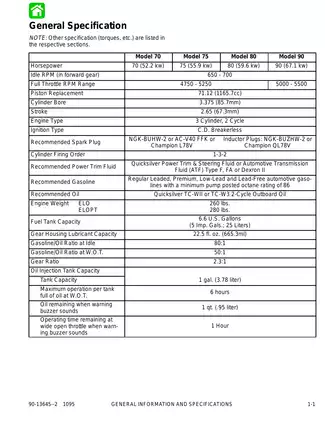

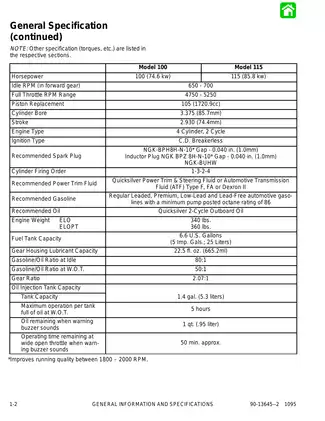

Mercury Manual Features & Selected Content Preview

Mercury Marine factory service manual P/N 90-13645-2, printed in 1995, covers 1987–1993 three-cylinder 70, 75, 75 Marathon, 75XD, 75 Seapro, 80, and 90 models, plus 1988–1993 four-cylinder 100 and 115 models. Internal powerhead repair covers three-cylinder engines only; the separately listed four-cylinder Section 4B is not included.

Searchable Chapter PDFs and Wiring Detail

Text search, bookmarks, and diagram detail: All files contain searchable text and embedded PDF bookmarks. Some lettering within illustrations is not searchable. Small wiring labels require zooming, particularly in the dense remote-control diagrams.

The download contains 391 pages across 17 printable PDF files, including the three-page front-matter file with the cover, service notices, and manual outline. The remaining sections comprise General Information and Specifications, 14 pages; Electrical and Ignition, 68; Fuel System and Oil Injection, 41; three-cylinder Powerhead, 41; Lower Unit, 55; Power Trim, 117; and Installation/Attachments, 52.


Powerhead, Fuel, Electrical, and Trim Service

The following selected service topics illustrate the manual’s coverage rather than reproduce its full contents. Additional subjects include weather-related performance changes and boat-loading effects.

  • Electrical and ignition diagnosis: DVA test sequences and charts, stator, trigger, coil, switch-box and key-switch checks, charging-system diagnosis, and starter repair.

  • Fuel and oil injection: Fuel-pump Designs 1 and 2, WME carburetor overhaul and rejetting, enrichener testing, accelerator circuits, pump synchronization, bleeding, and warning-system troubleshooting.

  • Three-cylinder powerhead repair: Step-by-step removal, disassembly, cylinder inspection and honing, piston/rod and crankshaft work, reed-block inspection, thermostat testing, and reassembly.

  • Gear housing and midsection: Water-pump Designs 1 and 2, bearing-carrier and propeller-shaft service, pinion-depth and backlash setup, pressure testing, and bracket reference views.

  • Power-trim systems: Separate Design I side-fill, Design II aft-fill, and single-ram sections with electrical and hydraulic troubleshooting, motor service, hydraulic repair, and purging.

  • Installation and controls: Ride-Guide steering arrangements, shift and throttle cable adjustment, transom mounting, tiller-handle disassembly and reassembly, and Co-Pilot installation.

Written for dealer mechanics and Mercury Marine service personnel, this manual assumes familiarity with outboard servicing and access to the specified workshop tools.

Serial-Specific Timing and Electrical Diagnosis

The timing chapter separates the 70/75/80 calibration data at the serial breaks listed above, with distinct specification blocks for the Mariner 75 Marathon/Mercury 75XD and Model 90. Three- and four-cylinder procedures differ for timing-pointer alignment, carburetor and oil-pump synchronization, ignition timing, throttle travel, and cable adjustment.

The ADI ignition charts give primary-voltage readings at 300–1000 RPM and 1000–4000 RPM, alongside component resistance tests. Charging coverage distinguishes rectifier-only and regulated arrangements, large-finned and small regulator/rectifier units, and 9-, 16-, and optional 24-amp systems.

Starter repair extends through armature testing, brush replacement, solenoid testing, reassembly, and installation. A full-size brush-retainer tool layout supports fabrication of the tool used during starter assembly.

Fuel Delivery, Carburetion, and Oil Injection

Fuel-system troubleshooting addresses anti-siphon restrictions, air entering the fuel supply, pump-pressure loss, and check-valve faults. The WME material includes float and low-speed adjustments, carburetor setting tables, high-altitude jetting guidance, and jet-orifice part-number charts.

Enrichener hose routing is shown separately for three- and four-cylinder engines. The four-cylinder accelerator-pump circuit includes fuel-flow references and adjustment information.

Oil-injection coverage adds hose routing, pump-drive inspection, output tests, and low-oil sensor checks. Warning-system diagnosis distinguishes three-cylinder test-button systems from the warning-module arrangements used without a test button.

Powerhead Assembly and Lower-Unit Repair

The powerhead chapter distinguishes bottom-guided and top-guided piston/rod assemblies and check-valve Designs 1–3. Inspection data covers cylinder bores, piston skirts, crankshaft condition, reed blocks, and thermostat operation, with component torque tables and tightening sequences.

Assembly cautions address the matched, line-bored cylinder block/crankcase cover and the original connecting-rod cap orientation. The oil-pump drive and O-ring seating warnings explain how an assembly error can interrupt oil delivery and damage the powerhead.

Lower-unit instructions cover bearing and seal replacement, wear sleeves, gear-depth tooling, backlash checks, and final shift-operation checks. The gear-housing installation warning explains how lubricant trapped above the driveshaft can prevent full engagement and damage the powerhead or gear housing during tightening.

The single-shock-absorber section covers removal, inspection, and installation. Internal rebuilding instructions are supplied with the separately referenced repair kit; rebuilding also changes the unit’s pressurized assistance characteristics.

Trim Troubleshooting and Installation References

The trim charts help separate an electrical fault from a hydraulic fault before selecting the relevant tests. Design I and II include pressure checks for verifying operation after repair; single-ram coverage adds pilot-valve, manual-release-valve, piston, and rocker-arm diagnosis, including date-code-specific faults.

Motor testing, armature checks, sender/gauge checks, and system purging are documented. For Design I and II, a defective pump is replaced as an assembly rather than internally rebuilt.

Installation references include parallel and opposite-side dual steering cables, dual-cable single-outboard arrangements, mounting-height guidance, and tiller/Co-Pilot hardware. Dimensioned outboard-support tool drawings accompany trim and shock-absorber removal.

Wiring Diagrams and Workshop Tools

Section 2D contains 12 wiring diagrams and a Commander 2000 key/choke continuity test. Examples include the three-cylinder low-oil-module circuit, four-cylinder small regulator/rectifier circuit, three-cylinder Commander 2000 trim circuit, tachometer/trim-indicator diagram, Commander 2000 start/trim/warning-horn circuit, and Commander side-mount remote-control diagram.

Other illustrated references cover the oil-warning circuit, single-ram troubleshooting flowcharts, powerhead assemblies, gear-housing components, and swivel/transom brackets.

Named tools include the Multi-Meter/DVA Tester 91-99750, Direct Voltage Adapter 91-89045, Dial Indicator Gauge Kit 91-58222A1, and Power Trim Test Gauge Kit 91-52915A3, plus gear-depth and backlash tooling. General service information also covers lubrication, seasonal storage, compression checks, detonation, and salt- or freshwater submersion recovery.

Scope and safety note: Disconnect the battery before exposed-terminal work, ground ignition leads as directed, support the outboard before trim or midsection service, and isolate the spark-plug leads before propeller or gear-housing work.

A Preview of Trigger Tests and Carburetor Settings

For a cold engine at room temperature, the three-cylinder trigger-test table specifies 1,100–1,400 ohms between each brown, white, or violet lead and the white/black lead. The four-cylinder table specifies 700–1,000 ohms across the brown/black and white/violet pairs.

The WME carburetor adjustment section illustrates a float setting of 7/16 in. (11.1 mm), alongside float inspection and inlet-needle service information.
