1977–1989 Mercury Mariner 45–220 HP 2-Stroke Outboard Service & Repair Manual
609 Pages • Printable PDF • 42.41 MB • Download
Mercury Models Covered & Key Technical Specifications
Models: 45 HP 4-cyl, 50 HP 3-cyl, 50 HP 4-cyl, 60 HP 3-cyl, 70 HP 3-cyl, 75 HP 3-cyl, 75 HP 4-cyl, 80 HP 4-cyl, 85 HP 4-cyl, 90 HP 3-cyl, 90 HP 6-cyl, 100 HP 4-cyl, 115 HP 4-cyl, 115 HP 6-cyl, 135 HP V6, 140 HP 6-cyl, 150 HP V6, 175 HP V6, 200 HP V6, 220 EFI V6
Sub-models / Variants: 2-Stroke, 3-Cylinder, 4-Cylinder, 6-Cylinder, V6, EFI, In-line; 150 HP V6 (Magnum; Magnum II in specification tables), 175 HP V6 (SKI W/EFI in specification tables), 220 EFI V6 (Magnum W/EFI); early 3-/4-cylinder, L6 and V6 lower units (Cam-Shift Type I), later 3-/4-cylinder and L6 lower units (Cam-Shift Type II), V6 lower units (E-Z Shift, including Alpha/MR driveshaft arrangements)
Model Years: 1977–1989 (1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989)
Serial Numbers: Timing/synchronization groups for V6 models without EFI: 175 HP — 4838074–6618750, 6618751 and above; 150 HP — 5203428 and below, 5203429 and above; 200 HP — 5363917 and below, 5363918–6073191, 6073192 and above
-
Horsepower range: 45 HP – 220 HP
-
Cylinder configurations: 3-cyl, 4-cyl, 6-cyl, V6
-
Engine cycle: 2-stroke
-
Fuel delivery systems: Carbureted, EFI, 2+2 System
-
Idle speed: 600–700 rpm (typical), 750–800 rpm (specified adjustments)
-
Propeller nut torque: 35–45 ft-lbs (47.6–61.2 Nm)
-
Spark plug tightening: 20 ft-lbs (26 Nm)
-
Inlet seat torque: 60 in-lbs (6.78 Nm)
-
Carburetor mounting nut torque: 100 in-lbs (11.3 Nm)
-
Fuel pressure threshold: 2 psi (minimum at full throttle at the carburetor inlet)
-
Fuel line diameter: 5/16" to 3/8"
Mercury Manual Features & Content Preview
This service and repair manual covers the listed 1977–1989 Mercury and Mariner two-stroke outboards, including inline and V6 powerheads with carbureted or EFI fuel systems. It provides teardown, inspection, reassembly, and adjustment procedures organized by engine and component design.
-
Powerhead repair: Removal, internal inspection, and rebuilding for original inline, redesigned inline, and V6 engines, with component clearances and tightening sequences.
-
Fuel systems: Overhaul procedures for carburetor types A–E, fuel-pump testing, 2+2 accelerator-pump operation, and EFI diagnosis and component replacement.
-
Ignition and electrical: Thunderbolt CD testing, timing and synchronization, charging-circuit diagnosis, starter-motor repair, and ignition wiring diagrams.
-
Oil injection: Auto Blend and Advanced Oil Injection troubleshooting, warning-circuit checks, oil-pump adjustment, and system service.
-
Lower units and cooling: Cam-Shift and E-Z Shift overhaul, gear shimming, backlash checks, water-pump replacement, and thermostat testing.
-
Power trim and tilt: Hydraulic and electrical troubleshooting, bleeding, and component service for the manual’s A, B, and C system designs.
-
Controls and recoil starters: Commander control-box disassembly and reassembly, plus hand rewind starter overhaul, spring-tension adjustment, and shift-interlock checks.
It is suited to mechanics and experienced owners who understand two-stroke operation and can use the specified measuring equipment; the EFI section recommends professional testing of suspected electronic components before replacement.
Carburetion, EFI, and Oil Injection
Carburetor identification illustrations distinguish Tillotson/Walbro Mercarb, center-square-bowl, WME, side-bowl/back-drag, and V6 dual-float designs before their individual overhaul sections.
Jet-size/elevation charts support selection for the applicable carburetor and operating altitude. Rough-idle troubleshooting also considers intake-manifold leaks and unequal cylinder compression.
The 100 HP and 115 HP four-cylinder 2+2 system has its own accelerator-pump fuel-flow diagram. EFI coverage includes a fuel-flow and sensor-signal schematic, injector tests, pump-ground diagnosis, vapor-separator service, and throttle-position-sensor adjustment.
The EFI electric booster pump and ECU are sealed replacement components, not internally rebuildable units. Opening the booster pump destroys its airtight seal and creates a fuel-system hazard.
Auto Blend warning-horn checks distinguish versions with and without an electronic module. Advanced Oil Injection coverage follows the remote tank, engine-mounted reservoir, check valves, and mechanically driven metering pump through diagnosis and service.
Thunderbolt Ignition and Electrical Diagnosis
Separate procedures address distributor-type Thunderbolt CD ignition and flywheel CD ignition with a coil for each cylinder. Stator, trigger, coil, and switch-box tests help isolate ignition faults before components are replaced; idle-stabilizer and spark-advance-module checks are also covered.
Timing and carburetor synchronization are divided by powerhead configuration and V6 serial-number group. The electrical chapter adds rectifier tests, harness inspection, and Bosch, Delco Remy, and Prestolite starter-motor repair.
Powerhead Overhaul and Cooling
The engine chapters distinguish original crankshaft-mounted reeds from the redesigned inline reed-block arrangement, with separate V6 rebuilding procedures. Piston and cylinder specifications, reed-stop data, and staged tightening sequences accompany inspection and assembly.
Flywheel removal calls out the crankshaft protector cap C-91-24161; the manual warns that incorrect pulling or hammering can damage the crankshaft, bearings, or flywheel. Cylinder inspection also distinguishes steel sleeves from chrome-plated bores, which cannot be treated as ordinary honing or rebore jobs.
Thermostat and poppet-valve diagnosis addresses overheating and restricted cooling flow. Compression checks, spark-plug evaluation, seasonal maintenance, and winter storage are covered elsewhere in the manual.
Gearcases, Trim Systems, and Controls
Lower-unit identification separates Cam-Shift Types I and II from E-Z Shift, including differences between older driveshafts and the Alpha/MR design. Gear-contact-pattern illustrations and backlash tables support the matching shimming procedure, helping avoid applying one gearcase design’s setup to another.
Trim/tilt service distinguishes twin-cylinder, three-cylinder, and single-cylinder arrangements. Type B and C wiring drawings support electrical fault tracing; the Type B hydraulic pump is a replacement-only component. Commander control wiring accompanies mechanical control-box service.
Hand rewind starter coverage distinguishes the two designs used on the four-cylinder 45 HP and 50 HP engines. The appendix also supplies metric conversions and lower-unit capacity and gear-ratio tables.
Pressurized fuel, trim hydraulics, and a raised outboard require the service precautions described for each system.
A Preview of Cooling and Oil-Warning Specifications
These examples are a small selection of the manual’s cooling-system and warning-circuit data.
For larger outboards using the described water-pressure gauge, the water-pump check specifies at least 5 psi at full throttle, including turns and other maneuvers. The thermostat bench test specifies an opening temperature of 140–145°F.
For Auto Blend units with the directly battery-fed warning horn, the positive supply lead contains a 0.5-amp fuse. The troubleshooting section treats this circuit separately from versions using an electronic module.

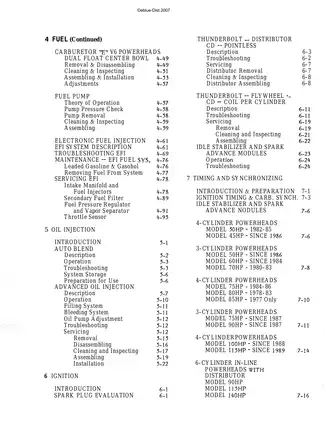

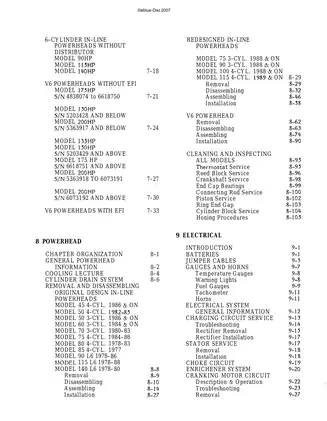

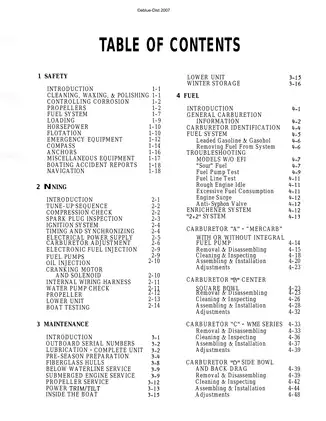

Searchable Text, Bookmarks, and PDF Contents
