Mercury Models Covered & Key Technical Specifications

Models: Mercury/Mariner 4hp, 5hp, 6hp

Sub-models / Variants: 4-Stroke, Short Shaft, Long Shaft, Bodensee

Model Years: 2000–2001

Starting serial numbers: 0R000001 and Above


  • Engine displacement: 123 cc (7.5 cu. in.)

  • Engine type: 4-Stroke Cycle, Overhead Valve

  • Number of cylinders: 1

  • Ignition system: Capacitor Discharge Ignition

  • Gear ratio: 2.15:1

  • Fuel type: Automotive Unleaded (87 minimum octane)

  • Engine oil capacity: 15 fl oz (450 ml)

Mercury Manual Features & Selected Content Preview

Mercury Marine factory service manual for Mercury/Mariner 4 hp, 5 hp, and 6 hp four-stroke outboards, including the listed 2000–2001 models from serial number 0R000001 and above. P/N 90-857138R1, May 2000.

Searchable Chapter PDFs and Color Diagrams

Text search and diagram detail: Each PDF has searchable text and embedded bookmarks for its contents. Small wiring labels are legible when enlarged.

The English ZIP contains one service manual in 20 printable PDFs totaling 260 pages: 256 pages across 19 chapter files and a four-page front-matter file containing the cover, notices, and manual outline. One Notes page, one blank page, and three diagram title pages are already included in that total.


Powerhead, Fuel, and Lower-Unit Service

This selected content preview outlines the main repair areas. Other topics include emissions-certification information and decal replacement; the overview is not a complete table of contents.

  • Powerhead repair: Step-by-step procedures for powerhead removal and installation, cylinder-head and crankcase teardown, valve-clearance adjustment, piston and crankshaft inspection, and reassembly.

  • Fuel system: External plunger/diaphragm fuel-pump overhaul, carburetor disassembly and adjustment, and integral fuel-tank service for the applicable models.

  • Ignition and charging: CDI component tests, flywheel removal and installation, fixed-timing checks, and diagnosis of the optional charging equipment.

  • Midsection and gearcase: Clamp/swivel brackets, driveshaft housing and water tube, gear-housing teardown, water-pump and impeller service, bearing and seal replacement, and shift-shaft setup.

  • Controls and recoil starter: Shift-linkage and tiller-handle disassembly and installation, throttle-cable adjustment, and recoil-starter inspection and rebuilding.

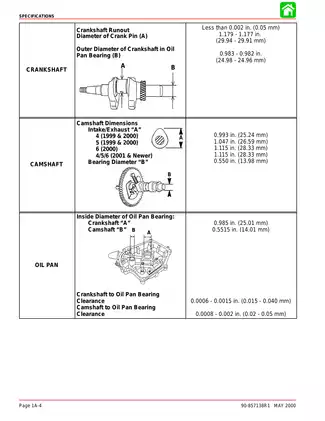

  • Diagrams and specifications: Wiring and fluid-flow drawings, exploded assembly views, torque tables, service limits, wear measurements, capacities, propeller application charts, and electrical test data.

Written for dealer mechanics and Mercury Marine service personnel, this manual assumes familiarity with outboard service, training in the recommended procedures, and access to common hand tools and the specified special tools.

Powerhead Builds and Fuel-System Differences

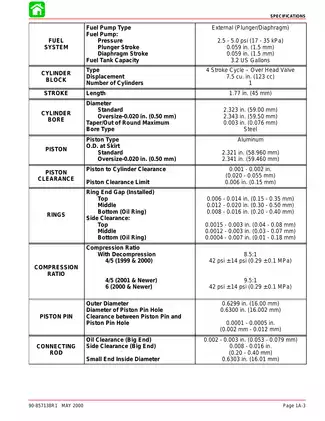

The specification tables distinguish 4/5 hp 1999–2000 applications, the 6 hp 2000 build, and 4/5/6 hp 2001-and-newer configurations. Operating-range, carburetor, compression, camshaft, and valve-spring data vary by application. These distinctions help match parts and settings to the engine being serviced.

Bodensee main- and pilot-jet data are separate. European 2001-and-newer models have model-specific pilot-mixture settings; other later versions are listed as non-adjustable. Integral fuel-tank procedures apply to 4 hp models only.

Internal repair coverage extends to cylinder-head resurfacing, valve-seat reconditioning, piston-ring measurements, connecting-rod clearances, oil-pump inspection, and thermostat testing.

Maintenance and Mechanical Diagnosis

Maintenance material covers cooling-system flushing, fuel-line and filter checks, corrosion-anode inspection, NGK DCPR6E spark-plug service, oil and gear-lube changes, lubrication points, and storage preparation.

Compression-check instructions and cylinder-leakage analysis support mechanical fault diagnosis. The leakage table relates escaping air to possible intake-valve, exhaust-valve, piston/ring, or head-gasket faults.

General-information procedures address propeller selection and removal, recovery after submersion, and aluminum propeller and gear-housing refinishing. Outboard installation, tilt-pin adjustment, operating angle, and overspeed protection are also covered.

Electrical Tests and System Drawings

Ignition diagnosis uses DVA and resistance checks for the capacitor charging coil, trigger coil, ignition coil, CDI unit, and stop circuit. Oil-pressure-switch specifications and warning-lamp connections are provided separately. Timing coverage includes TDC-mark alignment and checks of the fixed ignition system.

Optional lighting-coil, rectifier, battery-charging, and harness arrangements are identified in the 4/5/6 (4-Stroke) Wiring Diagram and Wiring Diagram “A” Rectifier Kit Installation. The Water Flow Diagram and Oil Flow Diagram trace cooling and lubrication paths; Installation Drawings provide mounting dimensions.

Factory Tools and Repair Cautions

Electrical tools include Multi-Meter/DVA Tester 91-99750, Magneto Analyzer 91-76032, and Flywheel Holder/Puller 91-804552.

Timing work lists Dial Indicator Gauge Kit 91-58222A1 with adapter 91-83155. Carburetor Scale 91-36392 and Piston Ring Expander 91-24697 support fuel-system and powerhead work. The powerhead and gearcase chapters identify additional pullers, drivers, bearing tools, and mandrels, including tools marked no longer available.

Gearcase cautions identify propeller-shaft and forward-gear bearings that are damaged during removal, alongside instructions to retain the original shims. Separate cautions address charging-system damage from reversed battery polarity and flywheel damage from hard impacts.

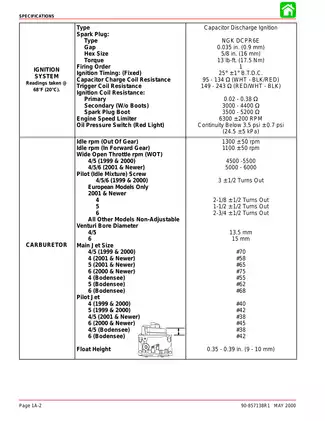

Selected Valve-Clearance and Float-Level Data

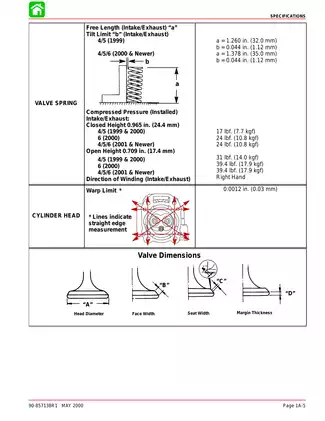

For the covered engines, cold valve-clearance specifications are 0.002–0.005 in. (0.06–0.14 mm) at the intake and 0.004–0.007 in. (0.11–0.19 mm) at the exhaust.

The carburetor reassembly section specifies a float level of 0.35–0.39 in. (9–10 mm), with an illustration of the scale measurement.

Follow the manual's safety alerts for fuel, ignition, recoil-starter, and propeller work, and for supporting the outboard on a service stand.
