To make it easier for you to choose the right manual, we have compiled various information for you below, such as model designations, types, and production years.
The manual is relevant for the listed models: 5220, 5320, 5420, 5520, 5000 Twenty Series / Deere & Company built in Augusta, Georgia, USA
John Deere 5220:
John Deere 5220S
John Deere 5220V
John Deere 5220VS
John Deere 5320:
John Deere 5320S
John Deere 5320V
John Deere 5320VS
John Deere 5420:
John Deere 5420S
John Deere 5420V
John Deere 5420VS
John Deere 5520:
John Deere 5520S
John Deere 5520V
John Deere 5520VS
Engine 5520: John Deere 3029D, diesel, 3-cylinder, liquid-cooled, 179 ci, 2.9 L, 4.19x4.33 inches, 106 x 110 mm, 53 hp, 39.5 kW, 2.84 gal/hour, 10.7 l/hour, 17.8:1, 825-2625, 1600-2400, 119.5 lb-ft, 162.0 Nm.
Engine 5320: John Deere 3029T, turbocharged diesel, 3-cylinder, liquid-cooled, ..., see above.
Engine 5420: John Deere 4045D, diesel, 4-cylinder, liquid-cooled, 276 ci, 4.5 L, 4.19x5.00 inches, 106 x 127 mm, 81 hp, 60.4 kW, 4.21 gal/hour, 15.9 l/hour, 17.6:1, 825-2625, 179.2 lb-ft, 243.0 Nm.
Engine 5520: John Deere 4045D, turbocharged diesel, 4-cylinder, liquid-cooled, 276 ci, 4.5 L, 4.19x5.00 inches, 106 x 127 mm, 89 hp, 66.4 kW, 17.0:1, 227.2 lb-ft, 308.1 Nm.
Production year(s): 2002, 2003, 2004.

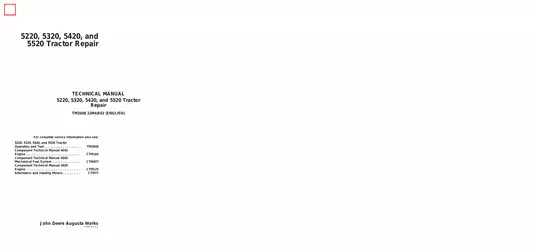

Publication Number: TM 2048
Manual Language: English
Pages: 910
Delivery: Download link will appear on the checkout page after your payment is complete.
#
³
"Download the John Deere Utility Tractor Repair Guidelines Manual for Efficient Maintenance and Performance"
The John Deere 5220, 5320, 5420, and 5520 utility tractors are versatile machines designed to handle a wide range of agricultural tasks. This comprehensive manual provides repair guidelines, engine specifications, maintenance intervals, tuning tips, available accessories, owner reviews, and more. Whether you're a farmer, equipment operator, or enthusiast, this manual is your go-to resource for maintaining and optimizing the performance of your John Deere utility tractor.
Engine Specifications/Technical Data:
- The John Deere 5220, 5320, 5420, and 5520 utility tractors are equipped with a liquid-cooled, turbocharged diesel engine.
- These tractors offer varying engine displacements: 2.9 liters for the 5220 and 5320 models, and 4.5 liters for the 5420 and 5520 models.
- They feature a direct fuel injection system for efficient combustion and improved fuel economy.
- The tractors come with a dual-stage air cleaner to protect the engine from dust and debris.
- They have a four-cylinder engine configuration, providing smooth power delivery.
- The John Deere utility tractors offer a power range of 45 to 85 horsepower (HP), depending on the specific model.
- They have a fuel tank capacity ranging from 15 to 68 gallons, allowing for extended operating hours without frequent refueling.
- The tractors feature a synchronized transmission with multiple gear options for precise control and smooth shifting.
- They offer a maximum forward speed range of 18 to 24 miles per hour (mph) and a reverse speed range of 5 to 11 mph.
- The John Deere utility tractors have a hydraulic system capacity ranging from 8 to 21 gallons, providing ample power for implements and attachments.
- They come with a three-point hitch system, allowing for easy attachment of compatible implements.
- The tractors have a power take-off (PTO) system with various speed options for powering driven implements.
- They feature a robust rear axle with differential lock for improved traction and maneuverability.
- The John Deere utility tractors offer a turning radius ranging from 11 to 16 feet, depending on the model, facilitating maneuvering in tight spaces.
- They come with hydraulic power steering for effortless handling and reduced operator fatigue.
- The tractors have a comfortable operator station with ergonomic controls and adjustable seating options.
- They are equipped with a comprehensive lighting system, ensuring excellent visibility during low-light conditions.
- The John Deere utility tractors feature a reliable electrical system with a heavy-duty alternator and a maintenance-free battery.
- They are designed with durable construction and components to withstand demanding work environments.
- The tractors are equipped with a comprehensive instrumentation panel, providing vital information and diagnostics for efficient operation.
Facts and Details:
• The John Deere 5220, 5320, 5420, and 5520 utility tractors are part of the John Deere 5020 series, renowned for their versatility and performance in agricultural applications.
• These tractors are designed to handle a wide range of tasks, including plowing, tilling, planting, mowing, and material handling.
• They offer a comfortable and spacious operator station with excellent visibility, ergonomic controls, and a suspension seat for enhanced operator comfort.
• The tractors are equipped with advanced technologies, such as the John Deere PowrReverser transmission, which allows for easy direction changes without clutching.
• They come with a Category 2 three-point hitch system, providing compatibility with a wide range of implements and attachments.
• The John Deere utility tractors feature a reliable cooling system with a large radiator and an efficient fan design for optimal engine temperature management.
• They offer a range of tire options, including agricultural, industrial, or turf tires, to suit different terrain and applications.
• These tractors are known for their fuel efficiency, allowing operators to accomplish tasks with minimal fuel consumption.
• The John Deere utility tractors are designed with easy access to routine maintenance points, such as filters, fluid levels, and grease points, for convenient servicing.
• They are equipped with a robust frame and durable components to ensure longevity and withstand heavy-duty applications.
• These tractors offer excellent stability and traction, even on uneven or challenging terrain, thanks to their well-designed chassis and four-wheel drive capability.
• The tractors feature a comprehensive hydraulic system that provides smooth and responsive control of attachments, facilitating efficient operation.
• They come with a comprehensive warranty and are backed by John Deere's renowned service and support network.
Maintenance Intervals, General Maintenance Tips, and Common Issues:
► Follow the manufacturer's recommended maintenance intervals for engine oil changes, filter replacements, and overall inspections.
► Regularly inspect and clean the air cleaner to ensure optimal engine performance and prevent dust buildup.
► Maintain proper tire pressure to enhance traction and minimize wear.
► Grease all pivot points, including the three-point hitch, front axle, and steering components, according to the maintenance schedule.
► Check and maintain proper hydraulic fluid levels and replace filters as recommended by John Deere.
► Monitor coolant levels and inspect the cooling system for any leaks or issues.
► Keep the tractor clean and free from debris to prevent clogging of cooling fins and ventilation areas.
► Address any unusual noises, vibrations, or performance issues promptly to prevent further damage or breakdowns.
► Use genuine John Deere parts and fluids for maintenance and repairs to ensure compatibility and optimal performance.
Popular Tuning Tips or Modifications:
* Consult with authorized John Deere dealers or reputable aftermarket suppliers for tuning or modification options specific to the John Deere 5220, 5320, 5420, and 5520 utility tractors.
* Popular modifications may include adding auxiliary lighting for improved visibility, installing precision farming technologies for enhanced accuracy, or upgrading to heavier-duty attachments for increased productivity.
Available Accessories and Attachments described in the official manual:
■ Front-end loaders
■ Backhoes
■ Mowers
■ Rotary cutters
■ Box blades
■ Snow blowers
■ Landscape rakes
■ Post hole diggers
■ Trenchers
■ Pallet forks
■ Grapples
■ Bale spears
■ Hay handling equipment (bale accumulators, bale grabbers, etc.)
■ Seeders
■ Tillers
■ Cultivators
■ Harrows
■ Land levelers
■ Augers
■ Dump carts
■ Sweepers
■ Sprayers
■ Fertilizer spreaders
■ Blade attachments (angle blades, dozer blades)
■ Hay bale spears
■ Rock buckets
■ Material handling arms
■ Brush mulchers
■ Log splitters
■ Graders
■ Boom mowers
■ Stump grinders
■ Hydraulic thumbs
■ Quick hitches
■ Three-point hitch attachments (post drivers, trailers, etc.)
Owner Reviews and Opinions:
☺ Strengths: Owners appreciate the versatility and performance of the John Deere 5220, 5320, 5420, and 5520 utility tractors. They praise the comfortable operator station, reliable engine performance, and compatibility with a wide range of implements and attachments.
☻ Weaknesses: Some owners have reported occasional issues with electrical components or hydraulic leaks. However, these are relatively uncommon, and the overall satisfaction with these tractors remains high.
Repairs That Need to Be Carried Out Most Frequently:
→ Regular maintenance tasks such as oil and filter changes, fluid top-ups, and greasing.
→ Replacement of worn or damaged tires.
→ Inspection and repair of electrical system components such as switches, fuses, and wiring.
→ Hydraulic system maintenance, including checking for leaks, replacing filters, and addressing any issues with hoses or fittings.
→ Routine checks and adjustments of the three-point hitch system, including linkages and hydraulic cylinders.
→ Repair or replacement of worn or damaged driveline components such as universal joints or drive belts.
→ Addressing any issues with the steering system, including power steering components and linkages.
→ Regular inspections of the cooling system, including the radiator, hoses, and coolant levels.
Parts That Often Break:
→ Tires and tire-related components.
→ Electrical system components such as switches, fuses, and connectors.
→ Hydraulic system components such as hoses, fittings, and seals.
→ Driveline components including universal joints, drive belts, and pulleys.
→ Cooling system components including hoses, radiator, and water pump.
→ Steering system components such as power steering pump, steering cylinders, and tie rods.
Obtain the John Deere PDF repair manual by clicking on the green button for comprehensive guidelines on maintaining and servicing your utility tractor. Upon completing your payment, the official John Deere OEM shop manual/parts catalog for the John Deere 5220, 5320, 5420, and 5520 utility tractors will be available for download on the checkout page. Additionally, we will promptly send you an email with the payment confirmation.
§
