Suzuki Vitara 1988–1998 3-Door Service Manual (P/N 99500-60A10-01E)

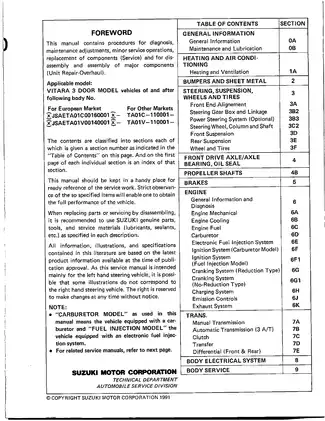

Suzuki’s Vitara 3-door service manual, P/N 99500-60A10-01E, covers carburetor and electronic fuel-injection versions from the body-number thresholds listed above. This is the 1991 edition, printed in February 1994. Illustrations primarily show left-hand-drive vehicles; right-hand-drive differences are identified where applicable.

PDF Bookmarks, Wiring Detail and Page Count

Search, navigation and diagram detail: PDF text search is not available. Embedded bookmarks link to the contents, numbered service sections and wiring appendix. Small wire-color codes and connector labels in the large wiring diagrams require zooming.

The ZIP contains one printable PDF with 835 pages: 820 service-section pages, eight wiring-appendix pages, and seven cover, preliminary, publication and memo pages, all included in the total.

Engine, Drivetrain and Chassis Service

The following selected coverage highlights show the main repair areas rather than a complete contents list. Additional topics include exhaust-system service and seat-belt inspection.

• Engine mechanical: Step-by-step procedures for timing-belt replacement, cylinder-head disassembly, piston and connecting-rod service, engine removal, and crankshaft-bearing inspection.

• Carburetor and EFI: Carburetor overhaul, choke and idle adjustments, fuel-pressure testing, injector checks, ECM diagnostic charts, and sensor-circuit troubleshooting.

• Transmission and driveline: Manual and automatic transmission overhaul, clutch repair, transfer-case disassembly, differential setup, and propeller-shaft universal-joint service.

• Steering and suspension: Steering-gear adjustment, power-steering pressure tests and bleeding, wheel-bearing replacement, free-wheeling hub service, and alignment diagnosis.

• Brake system: Disc and drum brake repair, master-cylinder and booster service, hydraulic bleeding, and load-sensing proportioning valve inspection and adjustment.

• Engine and body electrical: Ignition diagnosis, starter and charging-system repair, connector test data, wiring diagrams, and lighting and accessory-circuit checks.

• Heating and body: Blower and heater-control testing, heater-unit removal, panel alignment, door and glass service, corrosion protection, and underbody reference dimensions.

This manual is suited to technicians and experienced owners familiar with workshop measuring equipment; internal engine and transmission work also calls for the specified special tools.

Vehicle Identification and Workshop Reference

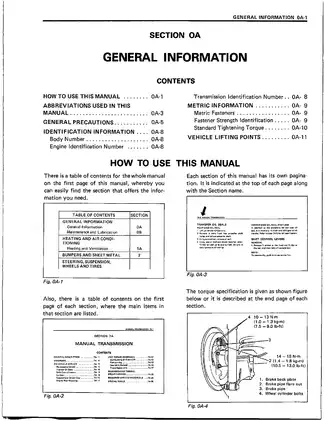

Vehicle identification information, lifting points and normal- and severe-use maintenance schedules support inspection and repair planning. Configuration-specific drawings distinguish steering layouts and fuel-system versions before components or test data are selected.

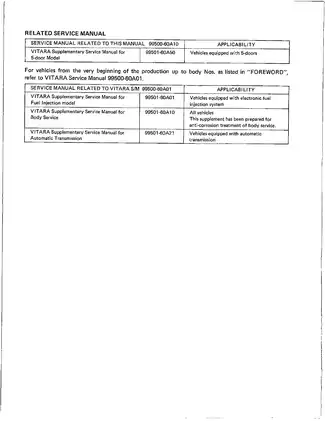

Coverage boundaries: Earlier vehicles below the listed body-number starts are directed to a different base manual. Five-door vehicles require the separately identified supplementary manual, which is not included in this download.

Engine Repair, Cooling and Fuel Diagnosis

The engine chapters go beyond tune-up specifications. Compression, vacuum and oil-pressure checks accompany internal inspection procedures, cold and hot valve-lash data, cylinder-head fastener specifications, and main-bearing selection information.

Cooling-system coverage includes thermostat testing, water-pump replacement and fan-clutch inspection. Fuel-system drawings distinguish pump arrangements and feed-line routing for carburetor and injection models.

EFI fault tracing: CHECK ENGINE flash-code tables, the ECM Power and Ground Circuit Check charts, and terminal voltage and resistance tables connect symptoms with circuit tests. The intermittent-fault guidance addresses wiring and connector problems before ECM replacement is considered. Incorrect meter connections can damage the ECM or sensors; the diagnostic section identifies the prohibited test arrangements.

Carburetor coverage distinguishes automatic- and manual-choke versions and includes float-level, idle-mixture and accelerator-pump checks.

Transmission Overhaul and Differential Setup

The automatic-transmission chapter includes line-pressure testing, valve-body and clutch service, selective-washer selection, and the 180-C Transmission Cutaway and Transmission Schematic. Torque-converter-clutch diagnosis applies to fuel-injection models.

Converter-installation cautions address oil-pump gear and seal damage from incorrect engagement. Transfer-case and differential sections add gear and bearing inspection, preload checks, backlash adjustment and tooth-contact evaluation.

Steering, Suspension and Brake Repair

Diagnostic charts address pulling, vibration and abnormal tire wear, helping separate tire-related complaints from steering or suspension faults. Steering-gear starting-torque checks are distinguished from ordinary fastener tightening.

Front cassette wheel bearings are serviced as complete units. Alignment guidance explains that camber and caster are not normal adjustments; incorrect readings require investigation of suspension or body damage.

Brake coverage includes LSPV pressure testing and spring-setting checks, not just component layouts. Lifting, structural, brake and fuel-system work involves supported vehicle weight, braking performance and pressurized fuel. Use appropriate shop isolation and support procedures, and have major structural, brake or fuel-system repairs checked by a qualified technician.

Electrical, Heater and Body Details

Reduction and non-reduction starters have separate service sections. Charging-system diagnosis covers undercharging, overcharging and indicator-lamp faults.

Heater wiring and Combination Meter Wiring diagrams complement switch-continuity and connector tests. The wiring appendix separates carburetor and EFI specifications, including DIM-DIP and daytime-running-light configurations.

Body documentation covers bumpers, hood, fenders, door mechanisms and glazing. Underbody dimensions and corrosion-treatment drawings support structural reference and panel repair work.

Selected Valve-Lash and Transmission Clearance Data

Valve adjustment: At a coolant temperature of 15–25°C, the specified lash is 0.13–0.17 mm for intake valves and 0.15–0.19 mm for exhaust valves. The engine chapter also provides separate hot-condition specifications.

Automatic-transmission assembly: Following selective-washer adjustment, final input-shaft thrust play in the assembled 180-C transmission is specified as 0.36–0.79 mm.
