Suzuki Grand Vitara 1999–2005 Service Manual Set

Use the base service information alongside the unit-repair manual and the model-specific supplements. The Canvas Top and RF diesel books refer back to the base manuals for unchanged procedures; the two Volume 1 editions overlap.

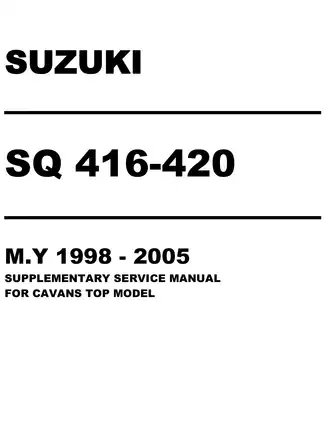

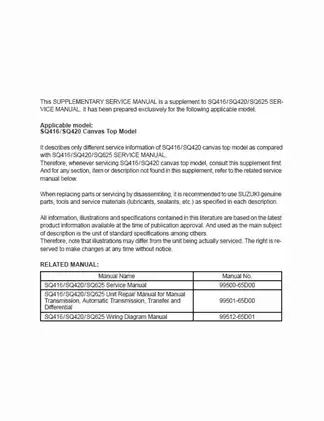

Electrical Diagrams 2 applies to the VIN groups identified in its applicability table. The Canvas Top service supplement covers SQ416/SQ420 differences rather than serving as a standalone repair manual.

Text Search, Section Bookmarks and Wiring Detail

Search and circuit navigation: The main service volumes have searchable text. The unit-repair, Canvas Top and electrical-diagram PDFs also support text search, although some introductory pages do not. The additional Volume 1 has no text search, and the RF diesel book’s service content is not searchable. Embedded section bookmarks are present in all eight files, but some front-matter entries and links to external files are not usable with the supplied ZIP. Small circuit labels require zooming.

The ZIP contains eight printable PDFs totaling 3,274 pages, including seven introductory title sheets. The publication totals above include their covers, forewords, contents pages and other introductory material.

Engine, Driveline and Variant-Specific Workshop Content

The following selected topics show the repair and diagnostic coverage. Other documented subjects include tire mounting and repair, plus windshield-wiper inspection.

• Gasoline engine repair: DTC and scan-tool checks, fuel-pressure and injector testing, timing-system service, and internal engine repair.

• Transmission and driveline: Manual and automatic transmission overhaul, transfer-case disassembly, differential adjustment, and propeller-shaft and front drive-shaft service.

• Chassis and brakes: Alignment, power steering, suspension, brake and ABS diagnosis, hubs, bearings, oil seals, and restraint-system service.

• Canvas Top differences: Refrigerant-system service, selector and key-interlock components, topbow frames, roof trim, body dimensions, coatings, and seat belts.

• RF diesel systems: Engine mechanical repair, electronically controlled injection diagnosis, cooling, starting, charging, and diesel-specific transmission information.

• Electrical fault tracing: Harness and connector layouts, fuse and relay locations, ground points, power distribution, connector pin views, and system circuits.

• Workshop reference data: Component torque tables, fluid specifications, adjustment data, inspection limits, electrical test values, service materials, and numbered special-tool references.

The unit-repair manual is written for authorized Suzuki dealers and qualified service mechanics; its overhaul work assumes suitable tools and workshop equipment.

Gasoline Engine Diagnosis and Internal Repair

Compression, vacuum and oil-pressure tests support the symptom and circuit diagnostic charts. ECM/PCM checks address misfire, catalyst and EVAP faults, oxygen sensors, fuel pumps, injectors, and A/C condenser-fan control.

Step-by-step procedures cover cylinder-head and valve-train work, camshafts, pistons and connecting rods, crankshafts, cylinder blocks, oil pumps, and timing components. Related sections cover fuel delivery, cooling, ignition, starting, charging, and exhaust service.

Transmission Overhaul and Differential Setup

The unit-repair manual separates Manual Transmission Type 1 for G16/J20 engines from Type 2 for H25/RF engines. Its disassembly and assembly instructions cover shafts, gears, shift mechanisms, bearings, and oil seals.

The 4A/T material extends to torque-converter diagnosis, the oil pump, overdrive assemblies, forward and direct clutches, center support, planetary gears, output shaft, and valve body. Bearing-and-race installation drawings accompany the assembly information.

Transfer and differential chapters cover free-axle hub and actuator inspection, carrier and case work, drive-pinion bearings, and adjustment. The automatic-transmission precautions identify case-joint prying as a cause of damaged sealing surfaces.

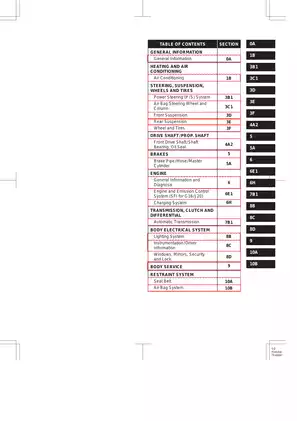

Canvas Top Body and Service Differences

The supplement documents R-134a component locations, refrigerant recovery, evacuation, charging, and on-vehicle A/C work. Refrigerant-flow drawings and engine-room location views accompany these sections. Its R-134a refrigerant, compressor oil and components are distinguished from R-12 equipment.

Chassis differences include power steering, suspension, front drive-shaft inspection and assembly, and brake-pipe/master-cylinder information. Front CV-joint and drive-shaft exploded views show the component arrangement.

Electrical and body updates address G16/J20 engine controls, charging, the LH-vehicle 4A/T selector and key-interlock cable, lighting, instrumentation, rear seats, trim, seat belts, and airbag components.

Body measuring-point drawings, coating information, and canvas-top/topbow-frame illustrations support body work. The roof-trim section warns that separating its four-piece assembly during removal can damage it.

RF Diesel Repair and Injection Diagnosis

The SQ420WD supplement adds RF engine mechanical procedures, timing-belt service, cooling and fuel-system work, injection-timing adjustment, turbocharger inspection, and glow-system diagnosis.

It also covers injection-pump removal and installation, nozzle inspection, cranking and charging systems, exhaust work, hydraulic-clutch differences, rear differential information, immobilizer coverage, and service-data tables. Diesel-specific 4A/T material includes line-pressure and stall tests, electronic shift-control diagnosis, and dedicated wiring diagrams.

Selecting the Correct Electrical Information

Electrical Diagrams 1 separates the main Van group from the Canvas Top group. For Canvas Top work, its instructions call for the supplement first and the main group for unchanged circuits; this distinction helps match circuit paths and component locations to the vehicle.

That volume is based on November 1998 production. Electrical Diagrams 2 adds harness routing, connector layouts and pin arrangements for its stated VIN applications.

System circuits cover engine management, 4WD, ABS, airbags, immobilizer, lighting, instruments, HVAC, windows, locks, and mirrors. Ground-point maps and fuse/relay/control-unit locations support tracing a circuit between its components.

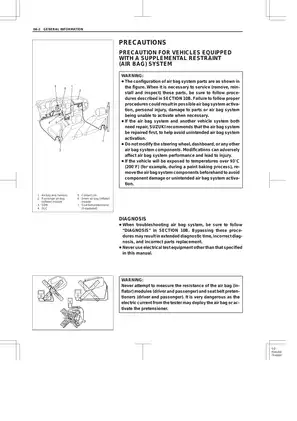

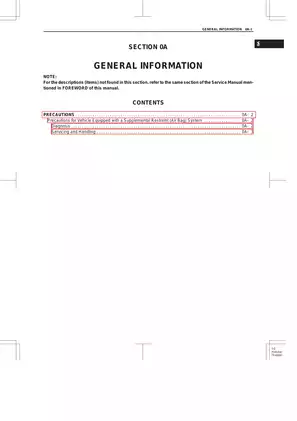

Underbody work requires stable vehicle support, and refrigerant work requires approved recovery equipment. Follow the manual’s SRS precautions for airbags, pretensioners, and nearby wiring.

Examples from Relay and Injector Resistance Tables

For the Canvas Top G16/J20 engine-control circuits, the tables specify main-relay coil resistance of 79–95 Ω and fuel-injector resistance of 13–16 Ω at a component temperature of 20°C (68°F). Separate M/T and A/T terminal assignments connect these values to the relevant ECM/PCM circuits.
