Cessna 172N / Reims F172N Skyhawk 1977 Factory Service Manual (P/N D2012-13)

298 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(4)
$22.85 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Cessna Models Covered & Key Technical Specifications

Models: 172 Skyhawk Series, Reims/Cessna F172 Skyhawk, Skyhawk II

Sub-models / Variants: Skyhawk / Skyhawk II (172N), Reims/Cessna F172 Skyhawk / Skyhawk II (F172N)

Model Year: 1977

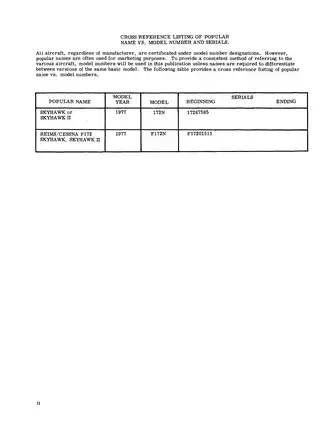

Serial Numbers: 172N beginning at 17267585; F172N beginning at F17201515


  • Engine model: Lycoming O-320-H2AD (172N and F172N)

  • Gross weight: 2300 lb

  • Wing span: 36 ft (conical-camber wing with strobe lights)

  • Fuel capacity (standard): 43 gal total / 40 gal usable

  • Oil capacity (with filter): 7 qt

  • Propeller: 75 in McCauley (fixed pitch)

  • Main tire pressure: 29 psi

  • Nose tire pressure: 31 psi (standard nose wheel tire)

  • Nose gear strut pressure: 45 psi (strut extended)

  • Battery location: Firewall

Cessna Manual Features & Selected Content Preview

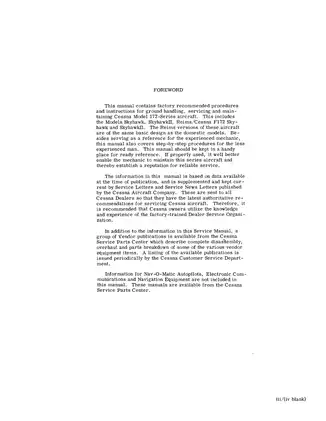

This Cessna factory service manual covers the 1977 172N and Reims/Cessna F172N, including Skyhawk and Skyhawk II versions. The original issue is dated July 1, 1976 (P/N D2012-13).

Printable PDF and Wiring-Sheet Navigation

Text search and diagram detail: Embedded OCR makes most of the written text searchable, with gaps in some tables and diagrams. The 64 PDF bookmarks link to chapters and individual wiring sheets. Small labels generally need zooming, and some entries in the blind encoder wire table remain faint at higher magnification.

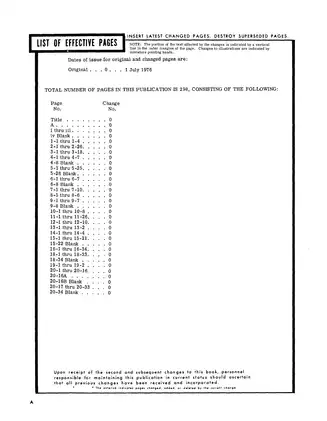

The download contains one printable, English-language PDF with 298 pages. That total includes six front-matter pages (one blank), wiring sheet 20-16A and its blank reverse 20-16B, and seven other blank pages.


Skyhawk Inspections, System Troubleshooting, and Airframe Repair

These selected service topics illustrate the manual’s coverage. Other procedures include magnetic compass compensation and cold-weather engine maintenance.

  • Engine and ignition: Engine removal and installation, carburetor adjustment, and step-by-step procedures for internal magneto timing and magneto-to-engine timing.
  • Fuel system: Fuel tank removal and installation, selector valve disassembly and reassembly, strainer service, and checks for a blocked vent or bleed hole.
  • Flight controls: Aileron, elevator, and rudder rigging, elevator trim tab actuator repair, and electric wing flap motor, limit switch, and linkage checks.
  • Landing gear and brakes: Nose gear strut and shimmy dampener service, torque link inspection, master cylinder repair, and hydraulic brake bleeding.
  • Instrument systems: Pitot-static leak testing, fuel quantity transmitter calibration, vacuum system troubleshooting, and instrument removal and replacement.
  • Electrical systems: Battery and alternator troubleshooting, external power checks, lighting circuits, and wiring diagrams with wire and equipment tables.
  • Structural repair: Airframe damage evaluation, skin and spar repairs, control surface balancing, and repair guidance for plastic and fiberglass components.

Cessna wrote the manual as a reference for experienced aircraft mechanics and included step-by-step procedures for mechanics with less experience.

Lycoming Engine, Ignition, and Propeller Service

The Lycoming O-320-H2AD engine data identifies the Marvel-Schebler MA-4SPA carburetor and Bendix D4RN-2021 dual magneto. The ignition procedures identify Bendix rotor holding tool 11-8465 and timing light 11-9110.

The engine chapter also covers oil and filter service, induction checks, exhaust leak testing, and engine control adjustment. A starter caution explains how turning the terminal bolt can break the internal conductor to the field coils.

The fixed-pitch McCauley propeller section covers removal and installation. Cessna refers full engine and accessory overhaul and propeller repair to separate manufacturer publications.

Fuel Tanks, Selector Valve, and Priming

The fuel chapter distinguishes standard and long-range tanks and the standard single-cylinder and optional three-cylinder primer arrangements. It includes selector valve inspection criteria and a spring compressor drawing. The vent and bleed-hole checks address faults that can restrict fuel flow or distort a tank.

Control Rigging and Nosewheel Shimmy

Control travel checks reference the SE716 inclinometer. A fabrication drawing shows the control column neutral rigging tool. The flap drawings trace the drive cables, pulleys, and push-pull rods, while the rigging procedures cover the follow-up linkage and limit switches.

The nosewheel shimmy chart helps mechanics distinguish wheel imbalance, bearing or linkage looseness, and dampener faults before choosing a repair. Brake coverage also includes master cylinder Lock-O-Seal replacement and wheel brake inspection.

Airframe Inspection, Storage, and Finishes

Ground-handling and lubrication guidance supports 100-hour and annual inspections. Temporary and indefinite storage procedures include return-to-service checks. Reference station diagrams, jacking and leveling illustrations, and lubrication charts locate measurement, lifting, and service points.

Fuselage, wing, and empennage coverage includes criteria for repair or replacement. The wing attachment section explains how misaligned eccentric bushings can damage a spar bolt hole. Painting guidance covers finishes and compatibility with plastic components.

The general specifications cover airframe dimensions, control surface travel, and fluid capacities. The installation torque chart distinguishes fine and coarse threads for steel nuts on oil-free cadmium-plated threads. Component chapters give clearances and wear limits.

Vacuum, Electrical, and Cabin Systems

Vacuum troubleshooting covers the pump and relief valve. Instrument procedures cover system testing and replacement, with internal instrument repair referred to specialist facilities. Cabin heat, defrost, and ventilation troubleshooting covers the controls and ducting.

The Electrical Load Analysis Chart lists loads for standard and optional equipment. Wiring sheets cover circuits such as lighting, electric flaps, and the blind encoder. Separate publications cover Nav-O-Matic autopilots and internal service of communications and navigation equipment.

For aircraft maintenance, cross-reference these archival specifications with current FAA airworthiness directives and manufacturer service information, and use calibrated equipment.

Aileron Travel and Wing Flap Cable Tension

The aircraft specifications list aileron travel of 20° ± 1° up and 15° ± 1° down for the 172 and F172 series.

The wing flap control illustration specifies cable tension of 30 ± 10 lb at the average temperature for the area.
