Cessna 172N Skyhawk 1977–1986 Service & Parts Manual Set (P/N D2065-3-13)

The service manual supplies maintenance and repair procedures; the parts catalog supports repair planning with exploded views keyed to part numbers, quantities, attaching hardware, and serial-specific usable-on codes.

Overhaul and modification limits: Full engine, accessory, and propeller overhaul requires the applicable manufacturer publications. Instrument troubleshooting extends to the defective instrument, rather than internal instrument repair. STC installations require the maintenance data issued for the modification.

PDF Search, Bookmarks, and Wiring Detail

Text search and diagram readability: Service-manual prose is searchable, but most wiring-diagram content is not. The parts catalog has an OCR text layer with recognition errors and some unsearchable illustration content. The service PDF has detailed section bookmarks; catalog bookmarks cover introductory material, indexes, and the start of the parts listings. Small wiring labels require zooming, and some dense wire-table entries remain difficult to read when enlarged.

The ZIP contains two printable PDF files totaling 1,301 pages. This total includes both covers, front matter, 47 blank catalog pages, two temporary-revision cover sheets, and the two added Temporary Revision 5 pages.

Airframe Service, System Diagnosis, and Illustrated Parts

The following highlights are a selected content overview, not a complete table of contents. Additional topics include adhesive and sealant shelf-life guidance and acrylic-lacquer and modified-urethane refinishing.

• Airframe and flight controls: Wing and empennage removal, windshield and window repair, door-latch and seat-rail inspection, control-system troubleshooting, rigging, travel checks, and balancing.

• Landing gear and brakes: McCauley and Cleveland wheel service, axle replacement, nose-strut and shimmy-damper repair, steering adjustment, master-cylinder service, and brake bleeding.

• Installed-engine service: Lycoming O-320-H2AD, O-320-D2J, and O-360-A4N removal and installation, magneto timing, carburetor and control rigging, and starting-system troubleshooting.

• Fuel systems: Standard and long-range removable tanks, integral wet-wing fuel bays, leak classification, purging, sealing after structural repair, curing, and testing.

• Instruments and electrical systems: Pitot/static leakage tests, vacuum and standby-vacuum diagnosis, fuel-quantity calibration, alternator troubleshooting, lighting and ELT service, and circuit-specific wiring diagrams.

• Structure and parts identification: Repair-versus-replacement criteria, control-surface crack assessment, structural repair drawings, and exploded parts views with model and serial applicability.

Written as a reference for experienced mechanics, the service manual also provides step-by-step procedures for less experienced mechanics.

Inspections, Ground Handling, and Cabin Work

Ground-handling material covers towing, hoisting, jacking, leveling, weighing, tie-down, storage, and return-to-service checks. Cleaning, lubrication, and cold-weather fuel-additive information accompany the servicing instructions.

Cessna inspection charts address pre-inspection operational checks, 50-, 100-, and 200-hour items, yearly requirements, component time limits, and Progressive Care inspections.

Cabin coverage distinguishes early and late door-latch arrangements and includes seats, upholstery, shoulder harnesses, cargo tie-downs, and seat-rail inspection. Separate control chapters address the aileron, electric flap, elevator, elevator-trim, rudder, and rudder-trim systems.

Landing-Gear Changes and Brake Service

The brake master cylinder changes at serials 17271035 and F17201750. The later design has its own disassembly and seal arrangement, with master-cylinder wrench No. 34-101 identified for the work.

Wheel and brake instructions distinguish McCauley and Cleveland configurations. Reference data includes wheel-alignment checks, tire and strut servicing, component torque tables, and inspection limits.

Engine Installations and Fuel-Bay Repair

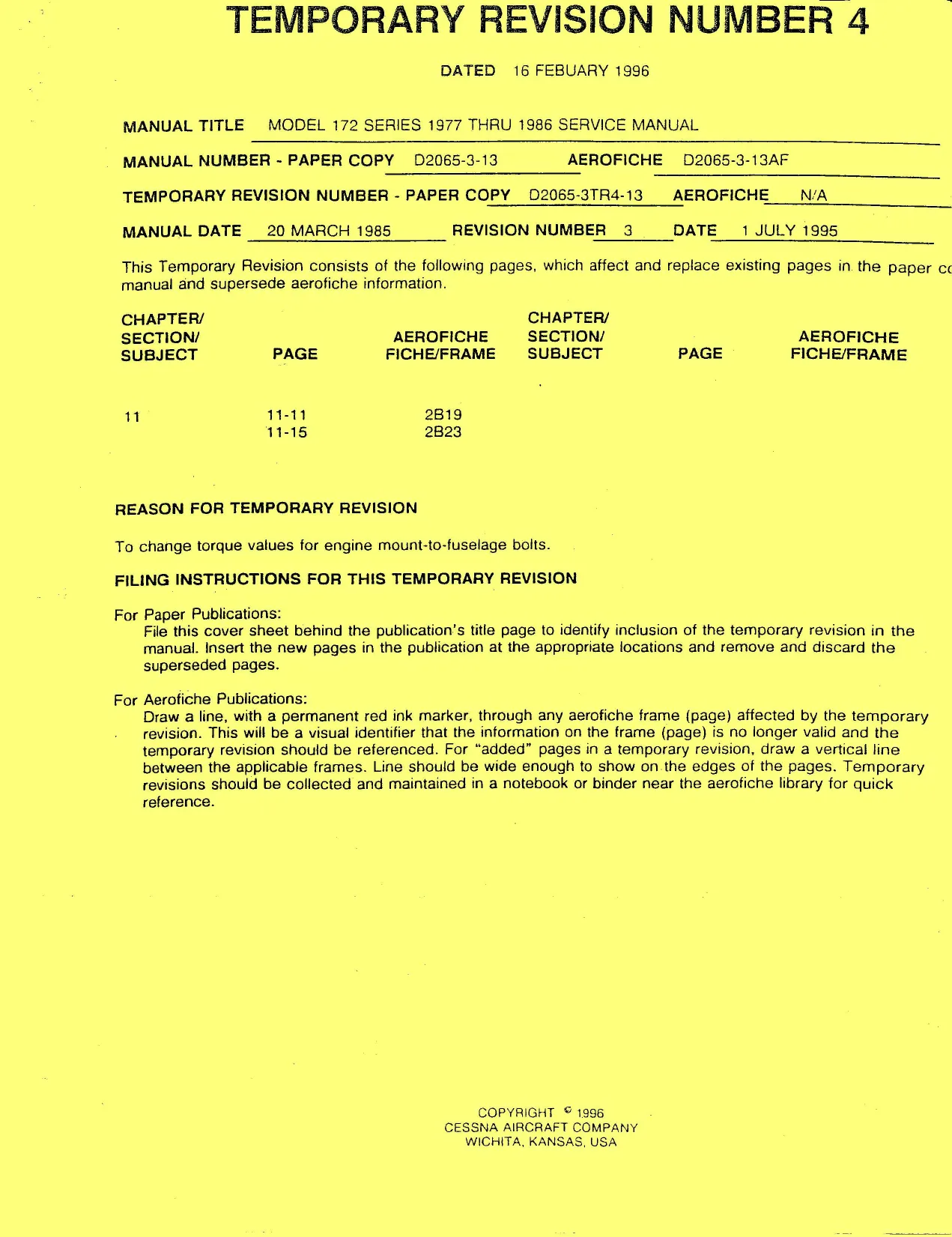

Engine chapters cover cowling, mounts, baffles, flexible hoses, ignition, magnetos, induction, exhaust, oil cooling, engine build-up, and run-up checks. Temporary Revision 4 updates engine-mount-to-fuselage bolt torque data.

The propeller and spacer are balanced as a set; their indexed relationship matters when they are reinstalled.

Integral wet-wing coverage begins at serials 17274010 and F17202070, with 172Q fuel-system applicability beginning at 17275869. Removable-tank and integral-bay procedures remain separate, so fuel-system configuration can be checked before selecting the relevant repair instructions.

Electrical Variants and Diagnostic References

The manual distinguishes the 14-volt system used through 1977 from the 28-volt configuration introduced for 1978. Troubleshooting covers alternators and regulators, while wiring sheets address battery and bus circuits, magnetos, engine instruments, wing flaps, pitot heat, air conditioning, vacuum warning, and standby vacuum.

Instrument chapters include vacuum fault isolation, standby-vacuum service, pitot/static leakage testing, and fuel-quantity transmitter calibration. These system-specific checks help distinguish wiring, transmitter, indicator, and supply faults before components are replaced.

Illustrated references include Aileron Control System, Wing Flap Control System, Trim Tab Free-Play Inspection, Main Landing Gear Installation, Integral Fuel Bay Installation, and Control Surface Balancing.

Structural Repair and Configuration-Specific Parts

Structural repair criteria cover wing skins, stringers, ribs, spars, leading edges, fuselage structure, landing-gear bulkheads, firewall areas, engine mounts, fiberglass parts, and corrugated control surfaces.

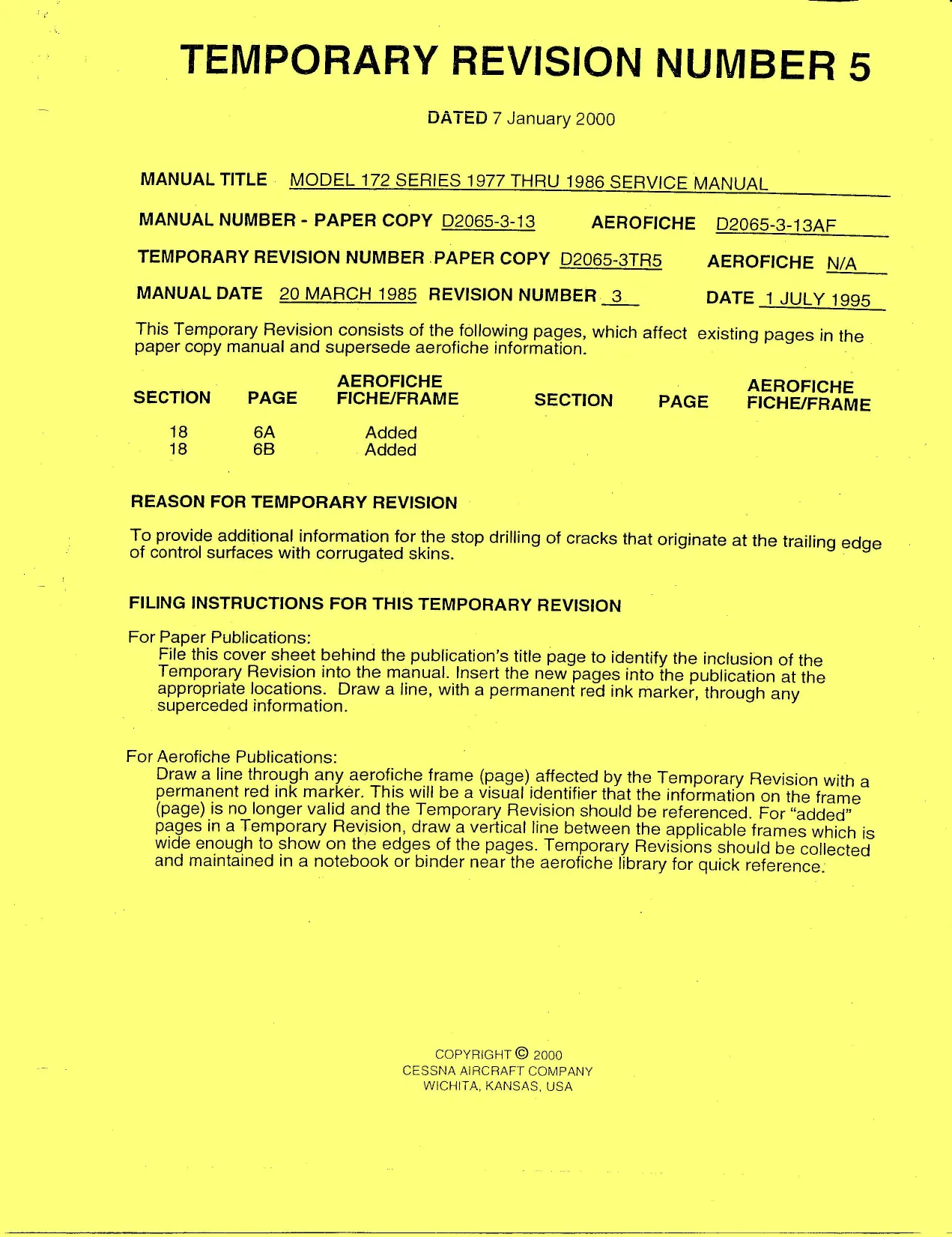

The fuselage-support guidance identifies the skin and bulkheads as unsuitable for supporting the fuselage from underneath. Temporary Revision 5 addresses trailing-edge cracks in corrugated control surfaces; cracks progressing beyond a stop-drilled hole require repair rather than repeated stop-drilling.

The parts catalog includes floatplane fittings, rudder-aileron interconnect parts, and floatplane fuselage structure. Its usable-on codes apply to the individual figure, helping distinguish assemblies and attaching parts that changed during production.

Maintenance involving fuel, brake hydraulics, jacking, electrical power, or propeller movement must follow the exact model- and serial-applicable procedure and be performed by appropriately qualified personnel.

Selected Flight-Control Cable Tensions

The Aileron Control System figure specifies direct and follow-through cable tension at 40 ± 10 lbs. The Wing Flap Control System figure specifies 30 ± 10 lbs. Both values are referenced to the average temperature for the area.
