Konica Minolta magicolor 7450/7450 II Printer Service Manual, 2008

Konica Minolta’s Field Service manual, Ver. 2.0 (August 2008), covers the magicolor 7450 and magicolor 7450 II A3 color laser printers, the 500-sheet Lower Feeder Unit, and the right-side Duplex Option.

PDF Search, Bookmarks, and Wiring Detail

Finding procedures and circuit connections: Technical text is searchable, and embedded PDF bookmarks provide access to safety information, main-body service, both options, and wiring diagrams. Small connector, pin, and wire labels in the dense wiring sheets require zooming.

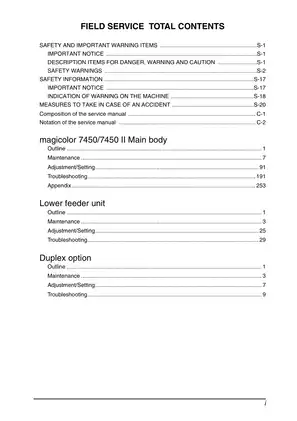

The download contains one printable English PDF with 361 pages: 25 shared front-matter pages, 274 main-body pages, 38 lower-feeder pages, 18 duplex pages, five overall-wiring pages, and one rear copyright page. Covers, revision histories, contents pages, and eight blank pages are already included in these totals.

Printer Maintenance, Calibration, and Fault Isolation

This selected content overview highlights the service work covered rather than reproducing the full contents. Other topics include control-panel message interpretation and network-interface settings.

• Scheduled maintenance: Replacement and cleaning procedures for tray rollers, imaging units, toner cartridges, waste-toner bottle, transfer components, fusing unit, and filters.

• Main-body repair: Step-by-step disassembly and assembly procedures for circuit boards, power supplies, PH units, drive assemblies, motors, and IDC/registration sensors.

• Paper-handling options: Lower-feeder roller replacement, board and motor access, elevator diagnosis, plus duplex-unit removal, cleaning, sensor checks, and misfeed troubleshooting.

• Factory adjustments: AIDC calibration, image-position and duplex alignment, transfer output, density, color registration, PH skew, and fuser settings.

• Firmware service: Controller, engine, and boot-version checks, with Windows and Macintosh updater workflows and checks after updating.

• Fault isolation: Service-call solutions, power-supply checks, paper-jam diagnosis, and monocolor and four-color image-quality troubleshooting linked to electrical components and wiring references.

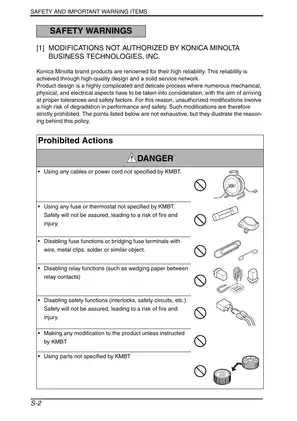

Konica Minolta recommends servicing by KMBT-trained service technicians; the powered checks, board replacement, and Service Menu procedures make this a technician-level publication.

Maintenance Planning and Regional Parts

Service schedules distinguish customer-replaceable consumables from periodic parts and explain the life-counter logic. The replacement tables identify items serviced together, helping technicians plan the associated consumables before opening the printer.

The transfer-belt replacement includes the transfer roller, vertical-conveyance dust filter, and ozone filter. The black toner cartridge supplies the deodorant filter, while the waste-toner bottle supplies the cooling-fan dust filter.

The CE tool list identifies the PH-window cleaning jig and pad as 4038 2083 ## and 4038 2084 ##.

Regional parts selection: The fusing-unit table assigns 4039 0751 ## to 100 V areas, 4039 0752 ## to 110–127 V areas, and 4039 0753 ## to 220–240 V areas. Waste-toner bottle 4065 622 applies to the USA and Canada; 4065 621 applies elsewhere.

Board Replacement and Model Differences

The main-body section contains 30 numbered disassembly/assembly procedures. Board coverage includes the controller board (PWB-P), mechanical control board (PWB-M), and PH interface board (PWB-D), alongside the DC power supply (PU1) and high-voltage unit (HV1).

Other procedures address transport and hopper drives, the right-door assembly, PH units, motors, and IDC/registration sensors. Mechanical-control-board replacement includes parameter-chip transfer and firmware requirements; an adjustment matrix connects component replacement with the required follow-up settings.

Ver. 2.0 adds the 7450 II. Procedures illustrated with the 7450 also apply to the II unless noted. II-only menu entries include IMAGE CMYK GRAY and THIN LINE MODE, and the option cover colors differ between models.

Diagnostic Data and Image-Quality Checks

Maintenance Info and Event Log outputs expose counters, coverage data, replacement history, jam history, and engine-fatal events. The Element Page reports fuser temperatures, IDC readings, TCR data, developing and grid-bias values, transfer output, and PH registration data.

Six Sensor Information maps decode states for the main body and installed options. Together with the troubleshooting charts, these references let technicians connect a reported symptom with sensor states, board signals, and the relevant circuit location.

The 72 numbered main-body service-call solution entries cover component checks and corrective actions. Separate charts address 25 monocolor and four-color image-quality symptoms, including density variation, color-registration errors, poor fusing, offset, and back marking.

Adjustment coverage includes maximum density, electrification, fuser speed and temperature, envelope loop control, and PH skew verification. Seven parts-layout pages, two connector-layout pages, the main-body timing chart, and an overall wiring overview with four detailed sheets support fault tracing.

Lower-Feeder and Duplex Service

Lower-feeder procedures cover PWB-Z and PWB-I access and the lift-up, paper-feed, and vertical-transport motors. Dedicated troubleshooting addresses tray 3–5 feed and transport jams and elevator failures.

Duplex coverage distinguishes pre-registration from transport-section misfeeds. It includes sensor-state interpretation and checks involving the switchback motor, transport motor, and duplex control board.

Print Systems and Repair Limits

The product outline identifies the four-multi-array PH exposure system, HMT developing system, Scorotron charging, intermediate transfer belt, and roller-fusing architecture. Controller specifications cover an optional 40 GB hard drive, CompactFlash, and Ethernet, USB, parallel, and PictBridge interfaces.

Component handling: The manual warns that reusing a stretched PH-unit stopper can cause uneven pitch and other image faults. Tilting an imaging unit during installation can damage its PC drum.

The PH assembly is replaced as a unit; internal laser-unit disassembly is outside the field-service scope. This PDF is the Field Service volume and does not include the separate Theory of Operation section or Parts Guide.

Disconnect the main body and every installed option from the power source before disassembly, and allow the fusing area to cool before access.

Alignment and PH-Skew Specification Preview

For single-sided top-margin correction, TOP ADJUSTMENT uses a setting range of -30 to +30, with each step representing 0.1 mm.

The PH-unit skew procedure specifies a PH REGIST VALUE within ±4. This is the displayed registration value, rather than a measurement in millimeters; the procedure includes test printing and verification after PH-unit replacement.
