2008 Konica Minolta Magicolor 4690MF Service Manual (P/N DDA0FD-A-FE1)

• Covers the Konica Minolta magicolor 4690MF desktop tandem full-color laser printer, including the Auto Document Feeder and optional Lower Feeder Unit configurations.
• Maintenance chapters walk through replacing feed rollers, ozone filters, transfer belts, and fuser units, with parts-life tables and replacement-counter resets.
• Repair procedures cover the MFP board, print control board, DC power supply, and high-voltage units, including board-specific reinstallation requirements.
• Details CCD and ADF zoom and registration adjustments, ADF loop adjustment, and test-pattern checks after scanner or document-feeder work.
• Troubleshooting covers paper jams, service-call codes, power-supply failures, and image defects, with sensor checks and electrical-part operation tests.
• Fax coverage includes country-specific soft-switch settings, communication error codes, and T.30 protocol monitor analysis.
• Includes detailed connector layout drawings and parts layout documentation, plus separate overall wiring diagrams for the main body, ADF, and Lower Feeder Unit.

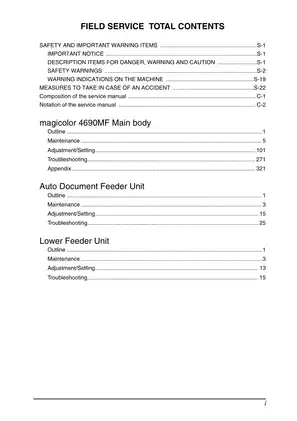

This 433-page PDF contains Konica Minolta’s Field Service manual, version 1.0, dated May 2008. The manufacturer recommends that all servicing be performed only by service technicians trained by Konica Minolta. This is the Field Service volume; the separate Theory of Operation material is not included.

Maintenance and Component Repair

Paper-path repair extends to the registration roller clutch, first and second image-transfer pressure/retraction clutches, and the switchback and duplex transport clutches. Scanner and exposure-unit removal are documented as well. PH-unit procedures cover assembly removal and replacement; internal printhead disassembly and adjustment are excluded from field service.

Board-replacement notes cover PRCB parameter-chip transfer and firmware and language setup after MFP-board replacement.

Consumable service also covers C/M/Y/K toner cartridges and imaging units, the waste toner bottle, and the transfer roller. The schedule distinguishes user-replaceable parts (CRU) from service-engineer replacement parts (FRU). It explains how print counts and motor running time affect service life, and identifies the transfer roller and ozone filter as a kit replaced together.

Transfer-belt installation notes address docking-gear damage from contact with the rails or surrounding mechanism. Imaging-unit handling notes cover damage from prolonged light exposure.

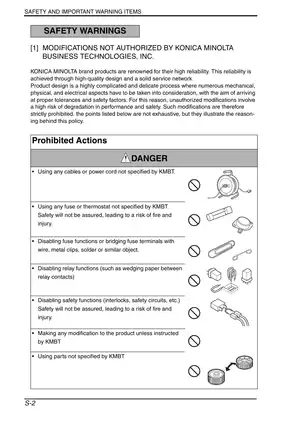

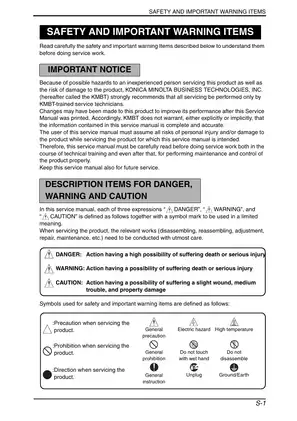

Working on these printers involves high-voltage circuits and thermal components. Always review the designated electrical safety guidelines before removing any exterior panels or beginning component replacement.

Paper Feed and Image-Quality Diagnosis

Fault tables connect symptoms and codes to component checks, connector pins, control signals, and wiring-diagram grid locations. Printer tests include real-time sensor monitoring, individual motor, fan, and clutch checks, and an engine print test.

Image-quality troubleshooting distinguishes main-scan and sub-scan banding, uneven density, poor color registration, background fog, and fusing offset. Test Pattern 1 supports registration and zoom checks; Test Pattern 2 checks halftones, gradation, density, and pitch irregularities.

The ADF section documents pickup-roller and separator-pad service, transport-motor and solenoid replacement, and separate first- and second-side adjustments. Lower Feeder Unit coverage adds Tray 3 feed-clutch and control-board replacement, mechanical registration adjustment, and feed or vertical-transport jam diagnosis.

Fax, Firmware, and Service References

Fax repair coverage explains G3 ECM communication and the Line Control diagram. Reference codes and V.17/V.34 protocol-report examples support analysis of transmission and reception failures.

Firmware upgrade procedures cover controller updates over USB and version checks using the Configuration Page. The Remote Setup Utility chapter documents local USB and remote phone-line connections, setting transfers, memory/SRAM clearing, and utility error messages.

Specification tables cover media and paper-feed limits, power requirements, environmental limits, and print performance. Adjustment data includes transfer-power settings, maximum image density, and fuser speed and temperature corrections for different media and operating conditions. The service-tool list identifies the laser lens cleaning tool A011 1901 ## and its pad 4138 2018 ##.
