Konica Minolta bizhub C353/C253/C203 Field Service Manual Set (2007)

The main-body troubleshooting tables refer technicians to the matching accessory manuals for option-specific jams and faults. Keeping those manuals together supports diagnosis across the copier, paper cabinets, document feeder, and finishing equipment.

These are Field Service publications. The separate Theory of Operation material, complete circuit-schematic sheets, and Parts Guide ordering illustrations are outside this set’s scope. VI-504 and IC-409 appear in the system configuration for C353/C253 with function-enhancement firmware; they do not have dedicated repair manuals in this download.

Searchable PDF with Section Bookmarks

Text search and drawing detail: The PDF supports text search and includes embedded bookmarks for the main body, standard controller, and accessory manuals. Small connector references and dense timing-chart labels are best read with zoom.

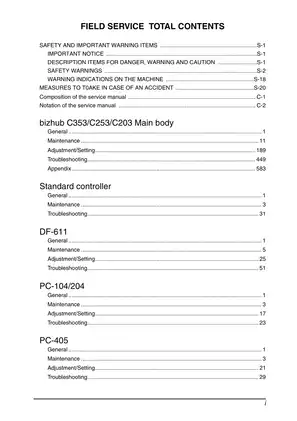

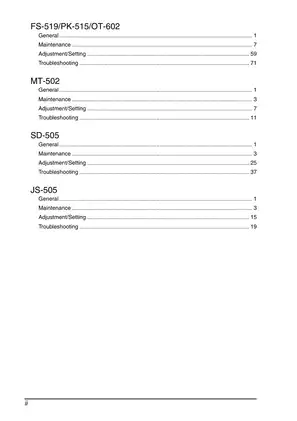

The download is one printable, 1,028-page PDF, including 26 shared cover, total-contents, safety/composition, and back-cover pages. The individual manual totals above include their own covers, revision histories, contents pages, and the file’s 25 designated blank pages.

Copier, Paper-Handling, and Finisher Service

The selected topics below preview the repair and diagnostic coverage rather than reproduce the complete contents. Further topics include CS Remote Care setup and Enhanced Security settings.

• Paper transport and consumables: Step-by-step replacement procedures for feed, pickup, and separation rollers, imaging units, transfer components, and the fusing unit.

• Scanner and engine repair: Removal and reinstallation of CCD/scanner assemblies, PH units, drive assemblies, circuit boards, motors, and clutches.

• Factory adjustments: Print and scan positioning, registration-loop correction, color registration, gradation, density control, transfer output, and mechanical alignment.

• Fault diagnosis: Jam and malfunction codes, power-supply checks, image-quality symptom charts, sensor checks, and control-signal references.

• Firmware and controller service: CompactFlash rewriting, Firmware Imaging Toolkit 2006, Internet ISW updating, transfer-failure recovery, and network printing or scanning diagnosis.

• Document handling and finishing: Feeder, paper-cabinet, stapling, punching, folding, mailbin, and job-separator service, with sensor checks and mechanical adjustments.

Konica Minolta strongly recommends that servicing be performed only by KMBT-trained service technicians.

Main-Body Maintenance and Replacement Adjustments

Service schedules cover the main body and supported options, with model-specific consumable and parts-life information. Maintenance procedures address the waste-toner box, ozone filter, toner cartridges, transfer roller and belt, imaging units, and fusing system.

The disassembly material extends to the original-glass moving unit, scanner drive cables, hard disk, main/transport/fusing drives, image-processing and printer-control boards, and DC and high-voltage power units.

The replacement-job adjustment matrix links component changes to the required follow-up settings and calibrations. This helps technicians identify the checks associated with CCD, PH-unit, board, or hard-disk replacement before planning the service work. PH replacement coverage calls for all four color units and subsequent skew adjustment; internal disassembly of the sealed print-head unit is prohibited.

Service Mode and image checks: Utility, Administrator, and Service Mode function trees document TCR and toner-supply settings, scanner focus and position, tray skew and centering, and PH-unit skew. Test Mode provides gradation, halftone, lattice, solid, color-sample, eight-color, and CMM patterns.

Image-Quality and Controller Troubleshooting

The image-quality section separates scanner faults from printer faults, then distinguishes single-color from four-color problems. Memory-bus checks and test-pattern comparisons support that isolation before the symptom charts direct attention to the affected system.

Main-body fault tables cover feed and duplex paths, alert and malfunction codes, DCPU operation, option power, and fusing-heater problems. They connect the reported symptom with relevant components, control signals, and connector references.

The standard-controller manual adds configuration and status-code checks. Network-printing diagnosis distinguishes queue, driver, port, and connectivity problems; Scan to FTP and Scan to E-Mail tables address server, account, destination, and transmission faults.

Feeder, Cabinet, and Finishing Repairs

DF-611: Coverage includes feed-component service, scan-guide and sensor cleaning, original stop position, registration loop, read position, feed zoom, scanning-light adjustment, skew correction, and ADF misfeeds.

Paper cabinets: PC-104/204 and PC-405 procedures cover feed-train replacement and tray or duplex-side centering. PC-405 adds shifter timing-belt adjustment and lift/shift diagnosis.

Finishing equipment: FS-519 coverage includes paddle, tray, and stapler work. PK-515 procedures address punch-loop length, hole position, and punch-hole deviance.

SD-505 coverage reaches the saddle and crease assemblies, fold position and angle, and center-staple position and angle. MT-502 and JS-505 material adds sensor, transport, and finisher-operation checks.

Service Drawings, Tools, and Handling Cautions

Visual references include scanner and engine parts-layout drawings, option parts layouts, the main-body connector layout, the main-body timing chart, and DF-611 one- and two-sided timing charts. Troubleshooting tables reference wiring-diagram locations, but the complete wiring sheets are separate documentation.

The tool lists identify blank CompactFlash P/N V865400001 and the SD-505 stapler-unit positioning jig P/N 4511-7901-01. They also cover original-glass height adjustment, PH-window and slit-glass cleaning, ADF-reading charts, and color charts.

The transfer-belt cautions explain how handling can contaminate the belt surface or damage its docking gear. PH-unit notes warn that reusing a stretched stopper can cause uneven-pitch image defects.

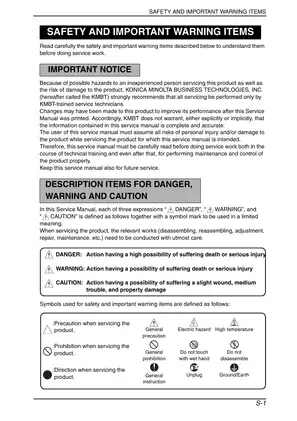

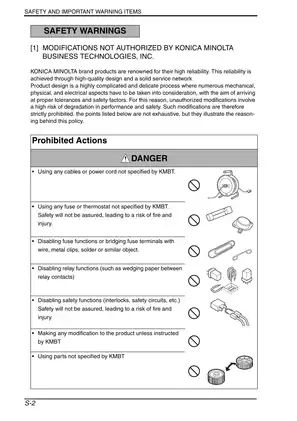

Internal repair requires isolation of both the main body and attached options; some assemblies can remain energized even when the POWER switch is off. The safety material also addresses high-voltage and moving-part exposure during powered checks, fuser burn hazards, and the Class 3B laser diode inside the sealed print-head unit.

Print-Alignment Specification Preview

The main-body Printer Area section specifies a leading-edge test-pattern width of 4.2 ± 0.5 mm. Its media-specific correction range is −3.0 to +3.0 mm in 0.2 mm increments.

For cyan, magenta, and yellow, Color Registration Adjustment provides a −6 to +6 dot correction range. Settings can be made separately for plain paper and Thick 1 through Thick 4.
