Konica Minolta bizhub 501/421/361 Copier Field Service Manual Set (2008–2009)

The main-body manual supplies the shared maintenance schedules, service-mode adjustments, fault-code references, and electrical diagrams. The companion publications provide the corresponding option-specific service work and refer back to those shared procedures.

Searchable PDF, Bookmarks, and Diagram Detail

Text search and diagram access: Searchable text extends across the main-body and option service sections. Embedded bookmarks navigate these publications, although the main-body revision-history bookmark has no usable destination. Small pin numbers, connector identifiers, and wiring codes on the examined diagrams are readable when enlarged; full-page viewing requires zooming for these details.

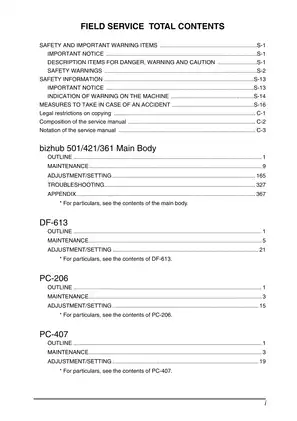

Supplied as one printable, English-language 764-page PDF, including shared front matter, section covers, 37 blank pages, and the rear cover. The main-body allocation comprises 468 pages plus the shared front matter; the final publication allocation includes the rear cover.

Imaging, Paper Handling, and Service Diagnostics

These selected coverage highlights summarize the service content rather than reproduce the complete contents. Other topics include original-size detection settings and key-counter installation.

• Imaging-system repair: Step-by-step procedures for write-unit, drum, transfer/separation corona, developing-unit, developer, and cleaning-system replacement.

• Paper handling and fusing: Tray and bypass feed repairs, registration-roller service, fusing-unit removal, and replacement of rollers, heater lamps, and related components.

• Maintenance and calibration: Model-specific parts-life references, counter resets, print and scan positioning, resist-loop adjustments, TCR calibration, toner-density settings, and laser adjustments.

• Document feeding and finishing: ADF calibration, feed-roller service, stapler and punch removal, saddle-stitcher repairs, fold alignment, and tray-position adjustments.

• Electrical troubleshooting: Jam and malfunction-code tables, Sensor Check, Load Check, test patterns, connector layouts, timing charts, and overall wiring diagrams.

• Firmware and licensing: USB and Internet ISW procedures, version and checksum checks, IC-207 service, and LK-series license activation, deactivation, repair, and initialization.

Konica Minolta recommends servicing by its trained service technicians; the procedures assume familiarity with copier service modes and the specified service tools.

Imaging, Scanner, and Fusing Repairs

Fusing coverage reaches the web, claws, driven and pressure rollers, heater lamps, bearings, thermistors, thermostat, and input gear. Scanner procedures cover CCD-unit replacement, the exposure lamp and unit, scanner-wire installation, and optic-unit positioning.

Developer and drum work: The instructions identify the required developing-gear rotation direction, splash-prevention-sheet placement, and TCR adjustment after developer replacement. Drum and cleaning-blade procedures include setting-powder handling and the related counter reset.

The developer-cover notes flag a splash-prevention sheet that can become caught in the developing roller. Fusing-claw installation carries a separate warning about damaging the roller surface with a claw tip.

Factory-set assemblies: The manual distinguishes replaceable assemblies from parts that must retain their factory settings. CCD reference screws, write-unit alignment hardware, and developing-unit adjustments have specific disassembly restrictions.

Maintenance Tools and Follow-up Adjustments

Separate parts-life and PM tables distinguish the 501/421 from the 361. Fixed-parts counters and service-mode reset instructions connect replacement work with the machine’s service history.

The tool references identify the 26NA2134 drum rotation member, 26NAJG01 optic-unit positioning jig, and 4040PJP1/P2/P3 test charts, along with DF adjustment and white charts and an SD stapler-positioning jig. These references help establish the equipment and calibration work required before a replacement is treated as complete.

Feeder, Cabinet, and Finisher Service

DF-613 procedures cover feed and separation rollers, scanning-guide cleaning, control-board replacement, and skew and height adjustment. Paper-feed cabinet and large-capacity-unit work includes roller replacement, tray and wire removal, belt adjustment, and lift-plate alignment.

Finisher procedures extend to stapler and punch removal, paddle-drive clutches, shutter-drive gear positioning, solenoid setup, belt tension, and tray-level detection. SD-507 coverage adds stapler and folding-roller disassembly, fold-skew adjustment, and center-staple alignment.

Fault Isolation and Electrical References

Service-mode references include adjustment-data backup and recovery, memory and HDD tests, ADF and finisher calibration, CS Remote Care, DipSW settings, Test Mode, enhanced security, billing, and license management. Jam and malfunction tables identify causes, machine behavior, release conditions, and suspected abnormal parts.

Diagram examples: Main Body 1/4 through 4/4 overall wiring diagrams show the main electrical connections. The main-body A4 copy timing chart, DF two-original timing chart, LU feed timing chart, FS-522 stapling/punch timing chart, and FS-523 no-sort timing chart document operating sequences.

Separate wiring diagrams cover the DF, LU, PC-206/PC-407, FS-522/PU-501, FS-523, SD, and MT assemblies. Parts-location and board-connector drawings support component and connection identification.

Firmware, Controller Service, and License Recovery

Firmware chapters explain board-by-board ISW order, USB folder and file requirements, Internet ISW network settings, error codes, and post-write version/checksum verification. FS-523 firmware is handled by EPROM replacement rather than normal ISW, and Internet ISW is unavailable when LK-101/102/103 is installed.

IC-207 coverage includes printer-key control-board removal, firmware linkage, printing-system troubleshooting, and print-job data capture. Data capture requires an installed HDD and the specified administrator and FTP settings.

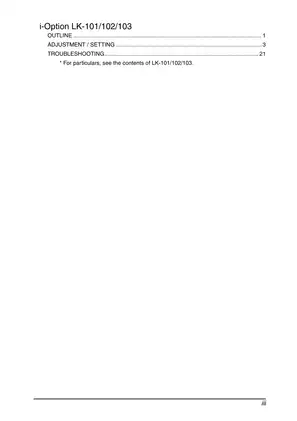

The LK publication centers on License Management System procedures and NVRAM/CF-card-related license errors. It covers request codes, activation, deactivation, repair, and initialization rather than a standalone LK firmware-rewrite procedure.

Before internal repair, disconnect the main body and every attached option from AC power and allow the fusing section to cool. Powered checks with covers removed expose live high-voltage areas and moving gears; write-unit work also carries laser-specific restrictions.

Selected Print-Positioning Specifications

For the covered main-body models, the leading-edge print-position check specifies a 20 ± 0.5 mm reference on test pattern No. 16. The side-edge print-position check specifies a centering tolerance of 0 ± 1.5 mm.

These references accompany the service-mode adjustment procedures, with separate selections for the applicable paper source and size.
