2008 Konica Minolta Bizhub 362/282/222 Factory Service Manual (P/N C4077-90960)

• Exact machine and firmware coverage: Konica Minolta factory Field Service documentation for the bizhub 362, 282, and 222 in desktop or console form. This North American edition is dated December 2008 and applies to firmware 4040-0100-G20-44-00X and later. The cover shows Ver. 1.0; embedded revision histories record 1.01 phase-2 additions and 1.02 corrections in affected sections.
• Main-body repair procedures: Covers paper-feed rollers and separation assemblies, registration roller bearings and gears, the photo conductor and developer, developing and transfer units, the fusing unit, scanner drive cables, CCD and PH units, power supply and High Voltage Unit, MFBS/MFBS2 and BCRS boards, motors, sensors, thermistors, the operation board, and EEPROM transfer.
• Adjustment and diagnostic depth: Includes Tech. Rep. Mode, I/O and operation checks, special-parts counters, F7/F8 functions, printer and scanner registration, scanner zoom and position adjustment, CCD installation alignment, original-size sensor setup, touch-panel adjustment, bypass-unit checks, CS Remote Care, and ROM-version verification.
• Paper handling and document feed: Dedicated sections cover the Duplex/Switchback Unit, DF-620, PC-108/PC-206, and PC-407, including roller repair, ADF feed and turnover diagnosis, leading-edge skew correction, scan zoom and start-position adjustment, cabinet registration, PC-407 shifter timing-belt adjustment, sensor checks, jam isolation, and option trouble codes.
• Controller, fax, and finishing options: The Standard Controller section covers firmware and print-fault diagnosis. FK-503 coverage includes fax-board service, battery replacement, soft switches, memory and file dumps, protocol trace, communication errors, network fax functions, and SIP-FAX troubleshooting. Output sections cover the JS-502, FS-530, PU-501, OT-602, MT-502, and SD-507.
• Finisher and saddle-stitcher work: Documents finisher firmware rewriting, exit-tray configuration, horizontal transport, stapler and punch-unit removal, I/O and test modes, staple and punch adjustments, plus SD-507 saddle, folding, stapler, guide-motor, folding-roller, fold-position, and center-staple procedures.

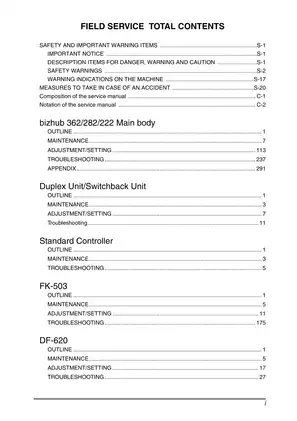

• 859-page PDF: Safety and front matter, 25 pages; main body, 326; Duplex/Switchback, 18; Standard Controller, 12; FK-503, 225; DF-620, 38; PC-108/PC-206, 32; PC-407, 40; JS-502, 10; FS-530/PU-501/OT-602, 54; MT-502, 18; SD-507, 61.

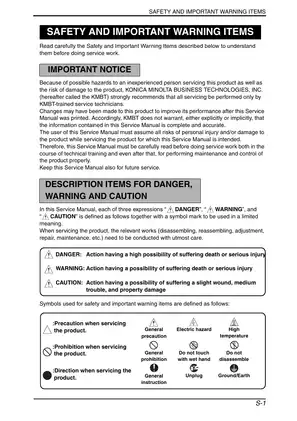

Service safety: Disconnect the main body and every installed option from AC power before teardown. The manual notes that some units remain energized even when the power switch is OFF, high voltage is present around the drum section, and the fusing unit can remain extremely hot. Ground yourself before touching ICs or circuit boards, and keep clear of scanner cables and gears during powered checks.

Component and Systems Documentation

The main-body section alone lists 43 disassembly/assembly procedures, moving from exterior access to the major imaging, scanner, drive, fusing, and electrical assemblies. A replacement-and-adjustment matrix ties common repair jobs to the follow-up work they require, including registration and zoom correction, F8 ATDC adjustment, counter clearing, scanner positioning, EEPROM transfer, and firmware updating. Model-specific maintenance tables keep the 362, 282, and 222 schedules separate rather than applying one blanket life cycle to the entire series.

Board replacement is also covered by production phase. Phase 1.0 extends through serial A11W011002050 for the 222, A11V011001337 for the 282, and A11U011001705 for the 362; Phase 2.0 begins with the next serial number for each model. The original MFBS board is not usable on Phase 2.0 machines. An MFBS2 replacement uses the 300 MHz jumper position on Phase 1.0 and the default 400 MHz position on Phase 2.0. Related chapters cover BCRS read-white-reference settings, Mechanical Control Board replacement with EEPROM transfer, CCD replacement and optical alignment, and PH Unit installation.

Specification, Calibration, and Diagnostic Data

Firmware sections cover the MSC, engine, Standard Controller, DF-620, and FS-530 finisher. The main-body chapter explains compact-flash preparation, ROM checking, separate MSC and engine rewrite paths, combined engine/finisher updating, and network-based Internet ISW through CS Remote Care. Identified service tools include the Thermistor Holding/Check Jig P/N 4040-7901-01 and SD-507 Stapler Unit Positioning Jig P/N 4511-7901-01.

Troubleshooting is organized around the machine area and the components that can cause the fault. Coverage includes paper-path misfeeds, malfunction and abort codes, power-supply failures, and separate scanner-versus-printer image problems such as blank output, fog, streaks, spots, voids, back-side smears, uneven density, and gradation failure. Option chapters add their own I/O lists, sensor layouts, test modes, jam paths, and fault-code solutions. The diagnostic tables identify relevant sensors, motors, boards, control signals, connector locations, and wiring-diagram references.

Useful visual references include front and rear system-configuration views; main-body and option parts-layout drawings; the connector-layout drawing; sensor layouts for PC-108/PC-206 and PC-407 systems; main-body and DF-620 timing charts; and the FK-503 SIP-FAX basic system diagram with its trouble-analysis flow.

Repair Notes and Scope

Several repair traps are called out clearly. MFBS/MFBS2 replacement must follow the serial-phase table and correct jumper position or the machine can operate incorrectly. PH Unit replacement uses label-color-specific spacer locations; mixing those positions can disturb printhead alignment. During drum and developer repair, the counter sequence, developer-gear direction, and prompt F8 initialization matter because incorrect handling can damage the ATDC sensor-cleaning mylar or leave developer control uninitialized.

This PDF is the Field Service volume. It supplies removal and reinstallation, repair, adjustment, firmware, and fault-isolation information, but it does not include the separate Theory of Operation volume or Parts Guide.
