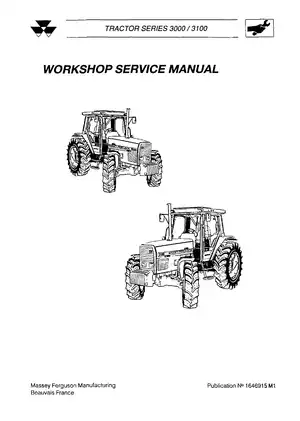

Massey Ferguson MF 3050, 3060, 3065, 3070, 3080, 3090, 3095, 3115, 3120, 3125, 3140 Tractor Workshop Service Manual 1991 (P/N 1646915 M1)
822 Pages • 1 Printable PDF (English) • Download
Massey-Ferguson Models Covered & Key Technical Specifications
Models: MF 3050 (Perkins A 4.236), MF 3060 (Perkins A 4.248 S), MF 3065 (Perkins C 4.236), MF 3070 (Perkins A T4.236), MF 3080 (Perkins A 6.354.4), MF 3090, MF 3095 (Perkins 1006-6 HR), MF 3115 (Perkins 1006-6LR), MF 3120 (Perkins 1006-6LR), MF 3125 (Perkins 1006-6T7), MF 3140 (Perkins 1006-6T7)
Sub-models / Variants: 2WD, 4WD, 3000 Series, 3100 Series, Platform, Cab; Speedshift (3000/3100), Dynashift (3000/3100), Super Creeper (Speedshift)
Model Year: 1991
Serial Numbers: V252037 (Hare/Tortoise Hi/Lo synchromesh replaced by a coupler from this serial number)
Gearbox: Mechanical Hi/Lo lock on 3000 tractors from P107048. Layshaft version B from P345012. Revised 4WD A/B synchromesh from P089036 on 40 km/h tractors and P297030 on 30 km/h tractors.
Speedshift and clutch: PTFE rings from N155012. Splined-disc assembly from P179018. Super Creeper accumulator from P333039. Pull-type clutch guide ring with machined contact face from R023005.
Reverse shuttle: Revised guide-rail locking position from P188030. Revised thrust washers and housing from P090012 with Speedshift and P251008 without Speedshift. On 3000 tractors, CGT reversing synchromesh through V058034 and from P054040 onward, with ZF from V058035 through P054039.
A/B selector: Revised pressure control from N257024 on MF 3050, 3060, 3070 and 3090, N258024 on MF 3080, and N265031 on MF 3065. On 3000 tractors, the service-kit break is N161041 for 40 km/h and N173012 for 30 km/h, with an intermediate setup on 30 km/h tractors from N161044 through N173011. A/B piston rod fastener changes from P193024 and R016007.
PTO and rear axle: 3000 intermediate-shaft deflector from N120009. Reinforced shaft for 4-speed economy PTO from N287019 on MF 3050, 3060, 3065, 3070 and 3090, and from N288017 on MF 3080. Revised 3000 4-speed PTO clutch assembly from N342012, with the earlier assembly retained on N342017, N342018, N342022, N342026 and N348023. Five-disc 4WD clutch for 3000 tractors with ground-speed PTO from N309034.
Improved front axle procedures: Categories 1 and 2 from A209023 on MF 3050, and on MF 3060/3065 from A163015 with standard seals or A161005 with reinforced seals. Category 2.5 from A209011 on MF 3070, 3080, 3085, 3095, 3115 and 3120. Category 3.5 from A007039 on MF 3125.
Hydraulics: 3000 trailer brake damper and pilot hose from N 103023 through N 159018, integrated damper valve from N159019, and revised pilot piston from R 030013. Rexroth auxiliary coupler oil catchers from R178047.
Controls: Second-generation Autotronic from N047049 on 3000/3100 tractors, with revised Autotronic wiring shown from P179008. Electronic Lift Control fault 3 has separate checks through U262030 and after U262030. Dynashift temperature sensor from A295035 on 3000 tractors and A290012 on 3100 tractors. Revised MF 3125 Dynashift gear-lever setting from B064014.
-
Engine configuration: 4 and 6 cylinder Perkins
-
Power ratings: 52 kW to 92.5 kW
-
Transmission: 8-speed, 16-speed, and 32-speed options with optional creeper gears
-
Clutch: Dry, single-disc, diaphragm-type (push-type for 3000, pull-type for 3100)
-
Hydraulic flow: 29 L/min and 50 L/min 2-stage gear pump
-
Hydraulic pressure: 17 bar and 185 bar
Massey-Ferguson Manual Features & Selected Content Preview

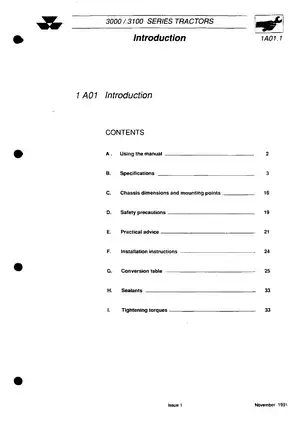

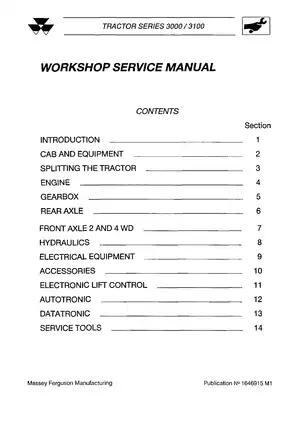

This 1991 Massey Ferguson workshop service manual (P/N 1646915 M1) covers the MF 3000 and MF 3100 Series tractors listed above. Its 14 sections cover tractor splitting, drivetrain repair, hydraulics, electrical equipment, and electronic control diagnosis.
PDF Search, Bookmarks, and Wiring Detail
Finding procedures and tracing circuits: OCR search covers much of the body text, with gaps on covers, section dividers, and some diagrams. Embedded bookmarks open the main section dividers. Zoom in to read small wiring labels. Some lines and codes in the German-market lighting diagram remain faint at higher magnification.
The download contains one printable, 822-page PDF in English. The total includes one added cover, the original title and contents pages, 14 section dividers, and 15 blank pages.
Tractor Splitting, Drivetrain Repair, and Control Diagnosis
This selection of workshop topics includes major repairs and diagnostic procedures. The manual also covers front PTO installation and pre-delivery checks.
- Tractor splitting and clutch service: Step-by-step instructions for separating the engine from the gearbox and the gearbox from the rear axle, with distinct push-type and pull-type clutch procedures.
- Gearbox repair: Mainshaft, layshaft, and output-shaft service, reverse shuttle adjustment, creeper gears, and overhaul of the Speedshift and Dynashift planetary carriers.
- Axles and PTO: Differential lock service, final drives, wheel hubs, axle-bearing preload, independent PTO clutches, and ground-speed PTO configurations.
- Hydraulics and braking: Pump and circuit tests, Orbitrol steering-unit overhaul, auxiliary spool valves, brake master cylinders, and main and trailer brake bleeding.
- Electronic diagnosis: Electronic Lift Control sensor adjustment, Autotronic checks with and without the ETCU tester, and Datatronic monitor programming and harness tests.
- Cab air conditioning: Leak diagnosis, compressor service, evacuation, recharging, and pressure checks for the documented R-12 system.
- Workshop reference: Wiring and hydraulic schematics, section views, exploded assemblies, adjustment tolerances, torque tables, and service-tool references.
Massey Ferguson wrote this manual for distributor and dealer workshops carrying out installation, maintenance, and repair. The procedures assume access to workshop equipment and the specified service tools.
Splitting, Engine Coverage, and Gearbox Repair
The splitting chapters distinguish the Speedshift and Dynashift layouts on both series. They also cover separating the front frame from the engine and servicing the engine adapter plate.
Engine coverage: The manual includes Perkins engine specifications, injection timing data, and operation of the viscous fan coupling. It refers internal engine adjustments and overhaul to separate Perkins workshop manuals.
Gearbox procedures cover selector rails and forks, A/B range gears, synchronizers, selector-cover adjustment, and output-shaft shimming. Section views show how the gear trains fit within the housings. The Hi/Lo chapter identifies the change from a synchronizer to a coupler and refers earlier units to separate workshop manual 1646640 M1.
The Speedshift overhaul section explains how incorrect planet-gear indexing can damage the assembly and how damaged sealing rings can cause leakage and loss of operating pressure.
Axles, PTO, and Hydraulic Circuits
Rear-axle procedures cover crownwheel and bevel-pinion adjustment, differential lock components, and brake pistons and seals. The PTO chapters distinguish removable and shiftable shafts, economy PTO configurations, and ground-speed assemblies for 2WD and 4WD tractors.
Front-axle procedures cover standard and improved 4WD final drives and differentials, plus 2WD hubs, steering components, and toe-in adjustment. Hydraulic service includes the Bosch pump, lift control valve, and Rexroth and Bosch auxiliary spool valves. The high-flow and low-flow circuit tests specify where to check pressure and flow.
Review the manual’s lifting and hydraulic safety precautions before starting a teardown or splitting the tractor.
Electronic Controls and Wiring Diagrams
Electronic Lift Control procedures cover voltage and resistance, harness continuity, potentiometers, and position-sensor adjustment. Separate diagrams cover systems with and without quick soil engagement.
The Autotronic test sequence uses ETCU tester 3584002 M92 to distinguish missing inputs from output or downstream circuit faults. This helps narrow the cause of a failed function before replacing the control unit.
Datatronic coverage includes tractor performance monitor programming, fuel-flowmeter and radar checks, and harness testing. Electrical diagrams cover Thermostart and Etherstart wiring, regional lighting, and Dynashift layouts with and without a transmission temperature sensor.
Chassis Data and Service Tools
Chassis mounting dimensions, lift-capacity charts, final-reduction ratios, sealant guidance, and conversion tables support the repair procedures. The tool index identifies equipment by number and application, including clutch centering tool MF 457 and hydraulic test equipment MF 3001.
Examples from the Valve and Cooling Tables
The engine tables give cold intake valve clearance as 0.30 mm (0.012 in) for the listed four-cylinder Perkins engines and 0.20 mm (0.008 in) for the listed six-cylinder engines.
The cooling-system specifications list a thermostat opening temperature of 83°C (182°F).
